YEPLOOK PSU 8Pin to Dual 4+4Pin EPS/ATX12V CPU Power Cable for Seasonic PRIME Platinum Modular SSR-1600PD, SSR-1300PD, SSR-1000PD, SSR-850PD Modular Power

YEPLOOK PSU 8Pin to Dual 4+4Pin EPS/ATX12V CPU Power Cable for Seasonic PRIME Platinum Modular SSR-1600PD, SSR-1300PD, SSR-1000PD, SSR-850PD Modular Power

Description

Brand: YEPLOOK

Interface: PSU 8Pin to CPU Dual 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire.

Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

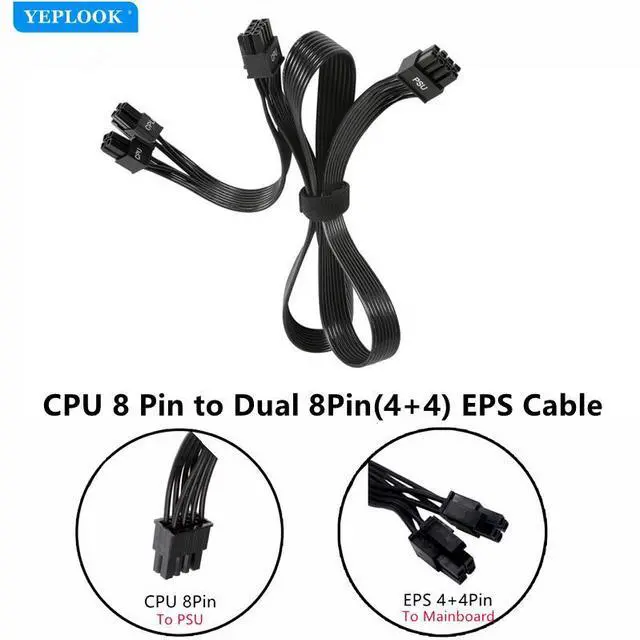

How to Connect:

PSU 8Pin male plug into Seasonic power power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male plug into Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as 8Pin or 4Pin ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin can not be used interchangeably!

Packing list: 1x Dual CPU Power Supply Cable

Compatiblity: Support SEASONIC PRIME Platinum PX Series PSUs Below:

Model: SSR-1600PD Active PFC F3, PRIME PX-1600, PRIME 1600 Platinum 1600W Platinum PSU

Model: SSR-1300PD Active PFC F3, PRIME PX-1300, PRIME 1300 Platinum 1300W Platinum PSU

Model: SSR-1200PD Active PFC F3, PRIME PX-1200, PRIME 1200 Platinum 1200W Platinum PSU

Model: SSR-1000PD Active PFC F3, PRIME PX-1000, PRIME 1000 Platinum 1000W Platinum PSU

Model: SSR-850PD Active PFC F3, PRIME PX-850, PRIME 850 Platinum 850W Platinum PSU

Seasonic PRIME Platinum Fanless Series:

Model: SSR-500PL, PRIME Fanless PX-500, PRIME 500 Platinum 500W 80+ Fully Modular PSU

Model: SSR-450PL, PRIME Fanless PX-450, PRIME 450 Platinum 450W 80+ Fully Modular PSU

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version

PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
