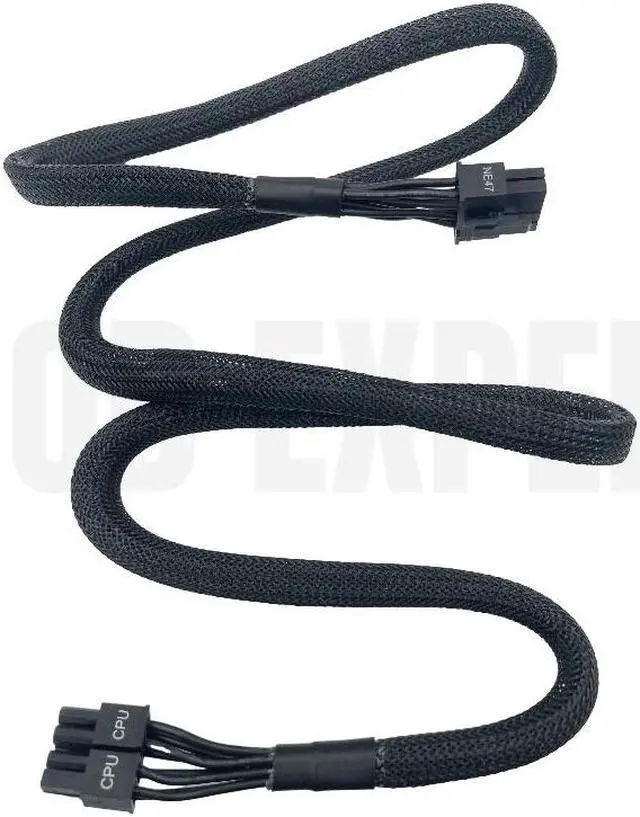

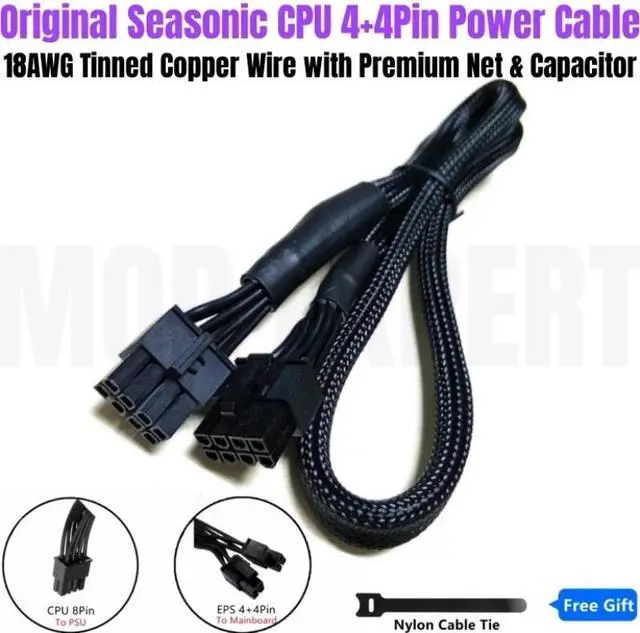

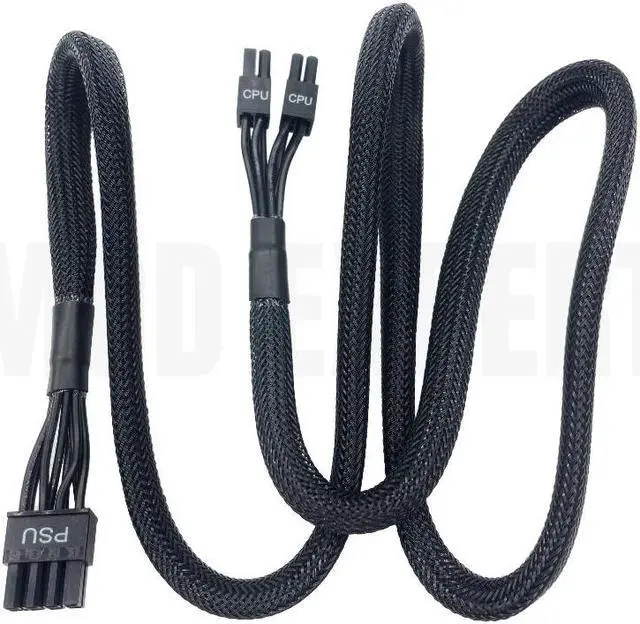

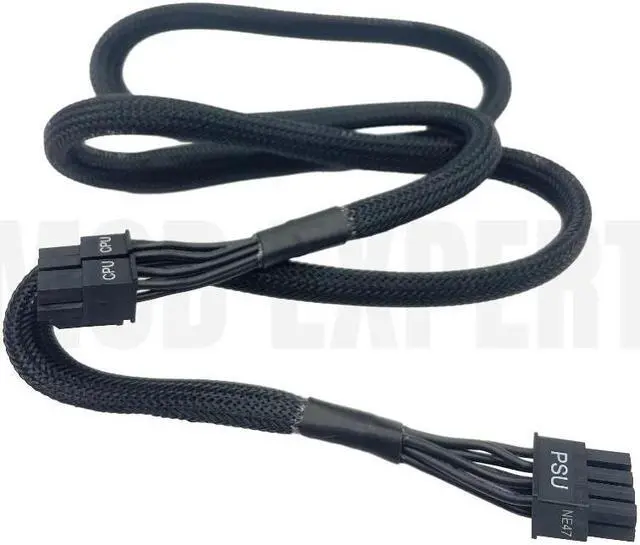

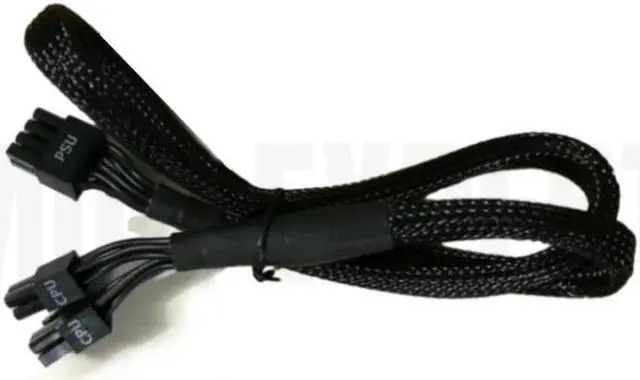

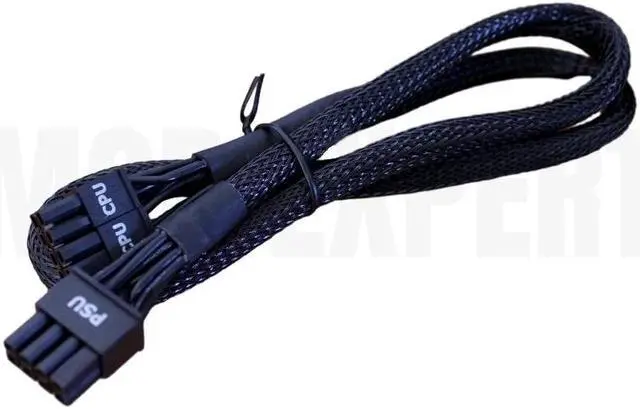

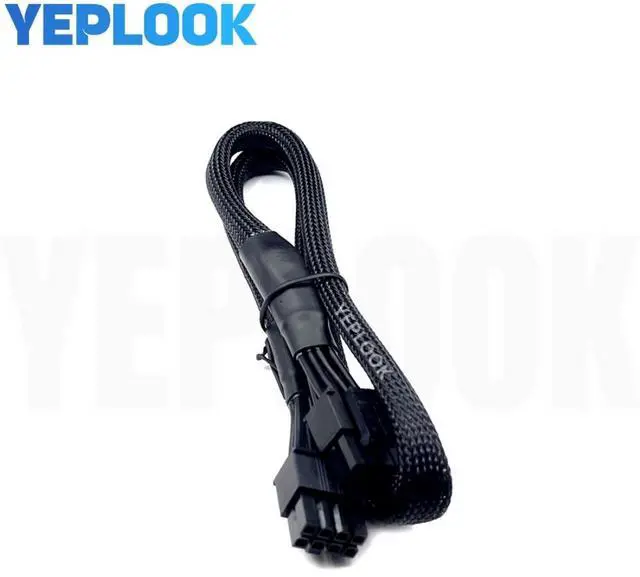

YEPLOOK EPS/ATX12V 8PIN 4+4 CPU Power Cable for Seasonic Platinum-1200W, 1050W, 860W, 760W, 660W Modular Power, Sleeved Net 18AWG

YEPLOOK EPS/ATX12V 8PIN 4+4 CPU Power Cable for Seasonic Platinum-1200W, 1050W, 860W, 760W, 660W Modular Power, Sleeved Net 18AWG

* Pre-Purchase Notes:

1. These cables are original and new. Quality is more better than copy fake cable.

2. Different Brands & Series cables are not universal. Mix use may cause damage.

3. Please check compatibility with us before you buy. If any question, please contact us anytime.

Description

Manufacturer: YEPLOOK

Length: 60CM/ 23.62 inch/1.97ft.

Interface: PSU 8Pin to CPU 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire with Premium nylon net. Flexible and easy to bend, keeping cables in a good management.

Features: Built-in capacitor will keep excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

CPU 8Pin male end to plug into the power connector of power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Single CPU 4+4Pin Sleeved Net Cable

Compatiblity: Support Seasonic Platinum P Series Modular PSU Below:

P-Series Platinum-660W, SS-660XP2 XP2

P-Series Platinum-760W, SS-760XP2 XP2

P-Series Platinum-860W, SS-860XP2 XP2

P-Series Platinum-1050W, SS-1050XP3 XP3

P-Series Platinum-1200W, SS-1200XP3 XP3

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version

PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
