YEPLOOK EPS/ATX12V Dual 8Pin 4+4Pin CPU Power Supply Cable for Seasonic SSR-750TR 750W, SSR-650PD2 650W, SSR-550GD2 550W SNOWSILENT Modular Power

YEPLOOK EPS/ATX12V Dual 8Pin 4+4Pin CPU Power Supply Cable for Seasonic SSR-750TR 750W, SSR-650PD2 650W, SSR-550GD2 550W SNOWSILENT Modular Power

Description

Brand: YEPLOOK

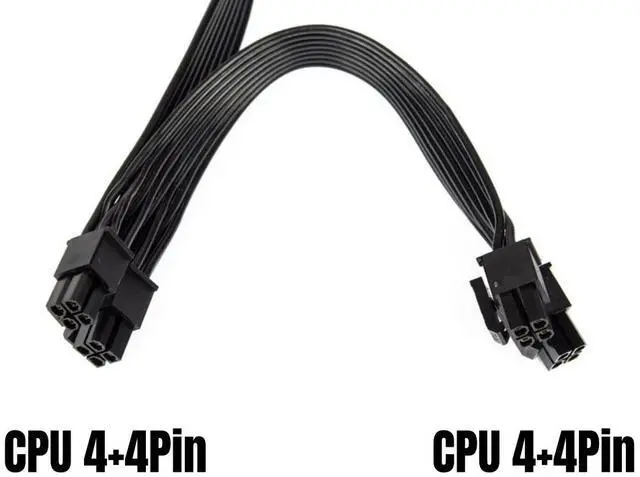

Interface: PSU 8Pin to CPU Dual 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire.

Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

PSU 8Pin male plug into Seasonic power power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

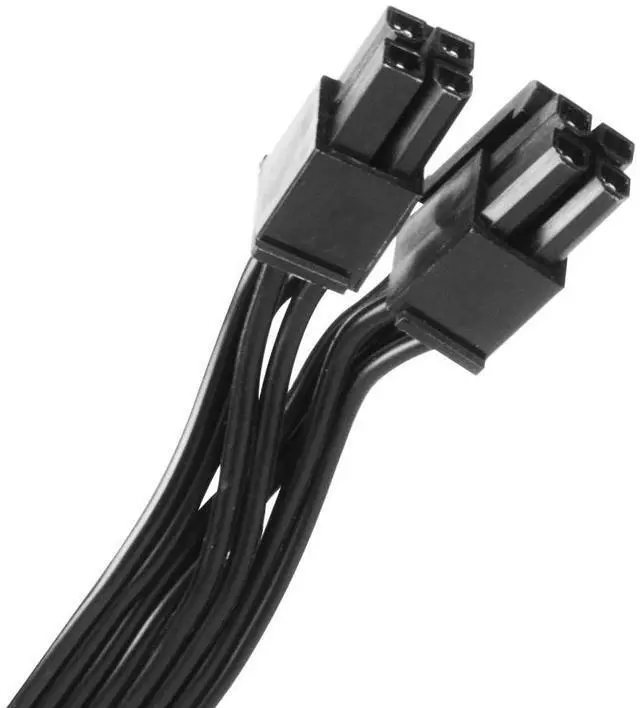

EPS 8Pin (4+4Pin) male plug into Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as 8Pin or 4Pin ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin can not be used interchangeably!

Packing list: 1x Dual CPU Power Supply Cable

Compatiblity: Support Seasonic PRIME SNOWSILENT Series Below:

Model: SSR-750TR-SNOWSILENT, SEASONIC PRIME SnowSilent 750 Titanium 750W

Model: SSR-650PD2-SNOWSILENT, SEASONIC PRIME SnowSilent 650 Platinum 650W

Model: SSR-550GD2-SNOWSILENT, SEASONIC PRIME SnowSilent 550 Gold 550W

Warning!!! NOT for other brands and models!

Also Not for some Seasonic old version PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
