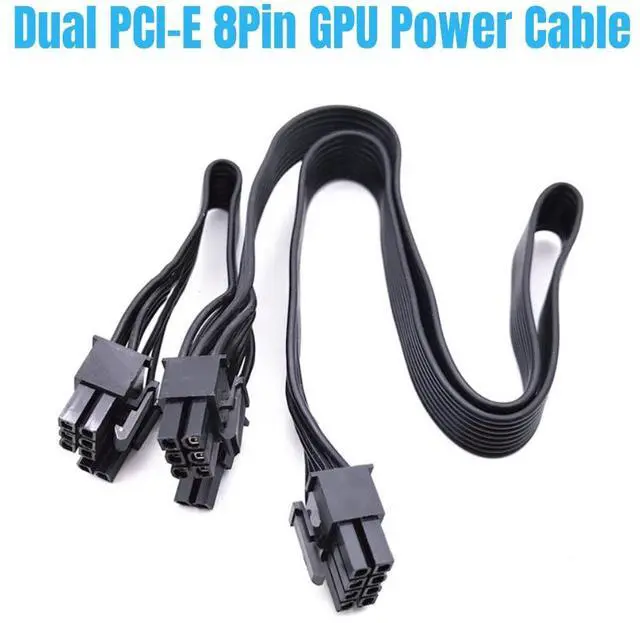

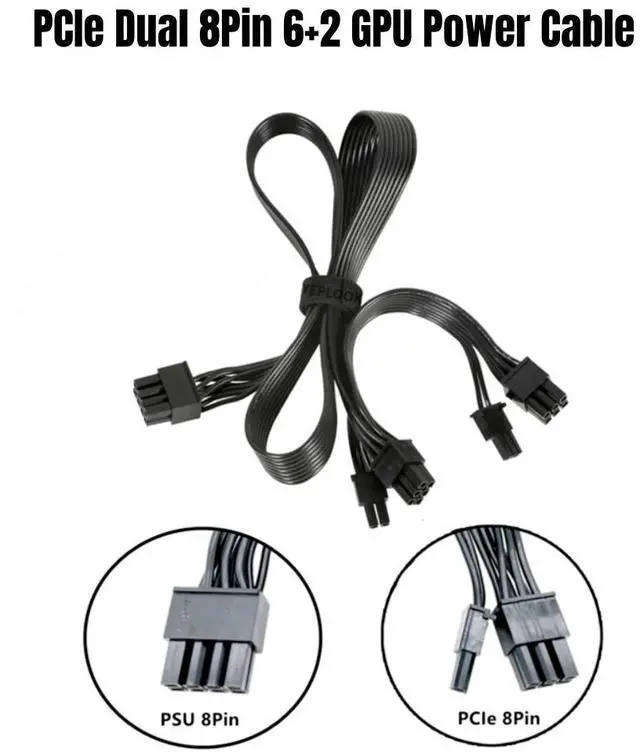

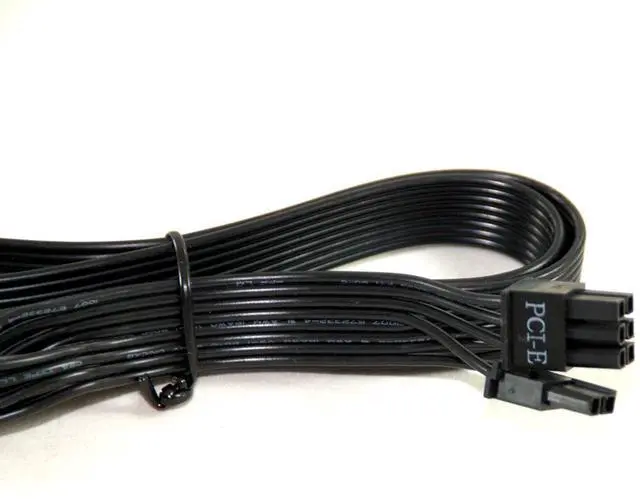

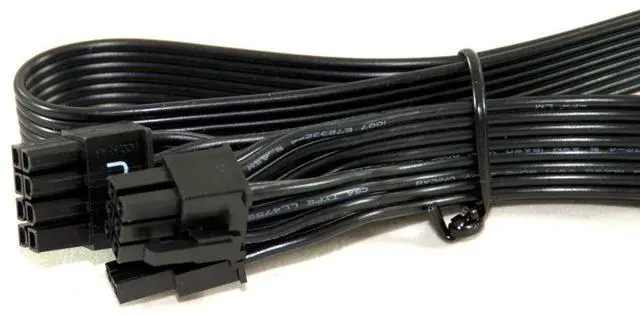

YEPLOOK PCIe Dual 8Pin 6+2Pin GPU Power Cable for Corsair CS450M, CS550M, CS650M, CS750M, CS850M Gold Type3 Modular Power, 60+20CM 18AWG

*Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. Mix use cables may cause damage. Please check compatibility with us before you buy.

3. The missing pins (No Pin) of 8Pin connector, which is default pin layout, not a faulty product.

Compatibility about the cable:

The PCIe 6+2 Dual 8Pin GPU power cable compatible with Corsair Type 3 CS-M Modular Powers. Such as CS450M, CS550M, CS650M, CS750M, CS850M Type 3 Modular Power

Description:

Status: New

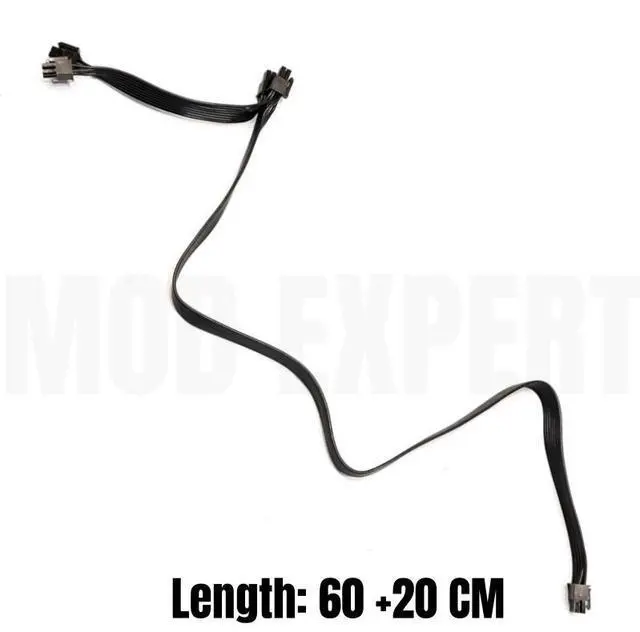

Cable Length: 60+20 CM

Interface: PSU 8Pin to PCIe Dual 8Pin 6+2Pin

Cable Gauge: UL1007 18AWG standard tin-coating copper wire.

Package List: 1x Dual PCIe 8Pin GPU Power Cable for Corsair Type 3 Powers.

Features

1. Gauge: Made of UL1007 standard 18AWG wire, heat resistant, not easy aging, very durable.

2. Soft flat cable, flexible and easy to bend, easy to organize and good cable management.

3. PCIe Cable could be used as 6 pin or 8 pin by sliding on/off the 2 pin. Compatible with PCI-E video card that has 8pin, 6pin or 8pin+6pin power socket.

4. Support power for GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RTX3060, RTX3070, RTX3080Ti, RTX3090Ti, RX570, RX580, RX590, RX5700 XT, RX6700 XT, RX6800 XT, RX6900 XT.

Installation

1. The 7Pin port [PSU side] can only be inserted into the PCI-e socket of modular power supply.

2. The 6+2 PIN [PCIE] port can be directly inserted into the graphics card or into the female port of a standard female-to-male PCIE extension cable.

3. The above installation method is the only correct way. Please confirm before and after installation.

Questions

Q 1: Why is its [PSU] interface only 7Pin?

A: please notice that the one that came with the PSU has a double wired pin on the left and so there is an empty pin on the right. Because the graphics card power supply only needs 3Pins 12V signals. The other 5 Pins are GND signals.

Q 2: Can I use it power for CPU?

A: No! Although the CPU interface in the power panel is shared with the PCIE interface.

Q 3: Does it work with other brands of module power supplies?

A: No, it only compatible with modular powers mentioned above.
