Note:
- 3pin fans are run in full speed, no PWM function
- Only the fan on 4-pins connector is used for monitoring.
- All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
- PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.

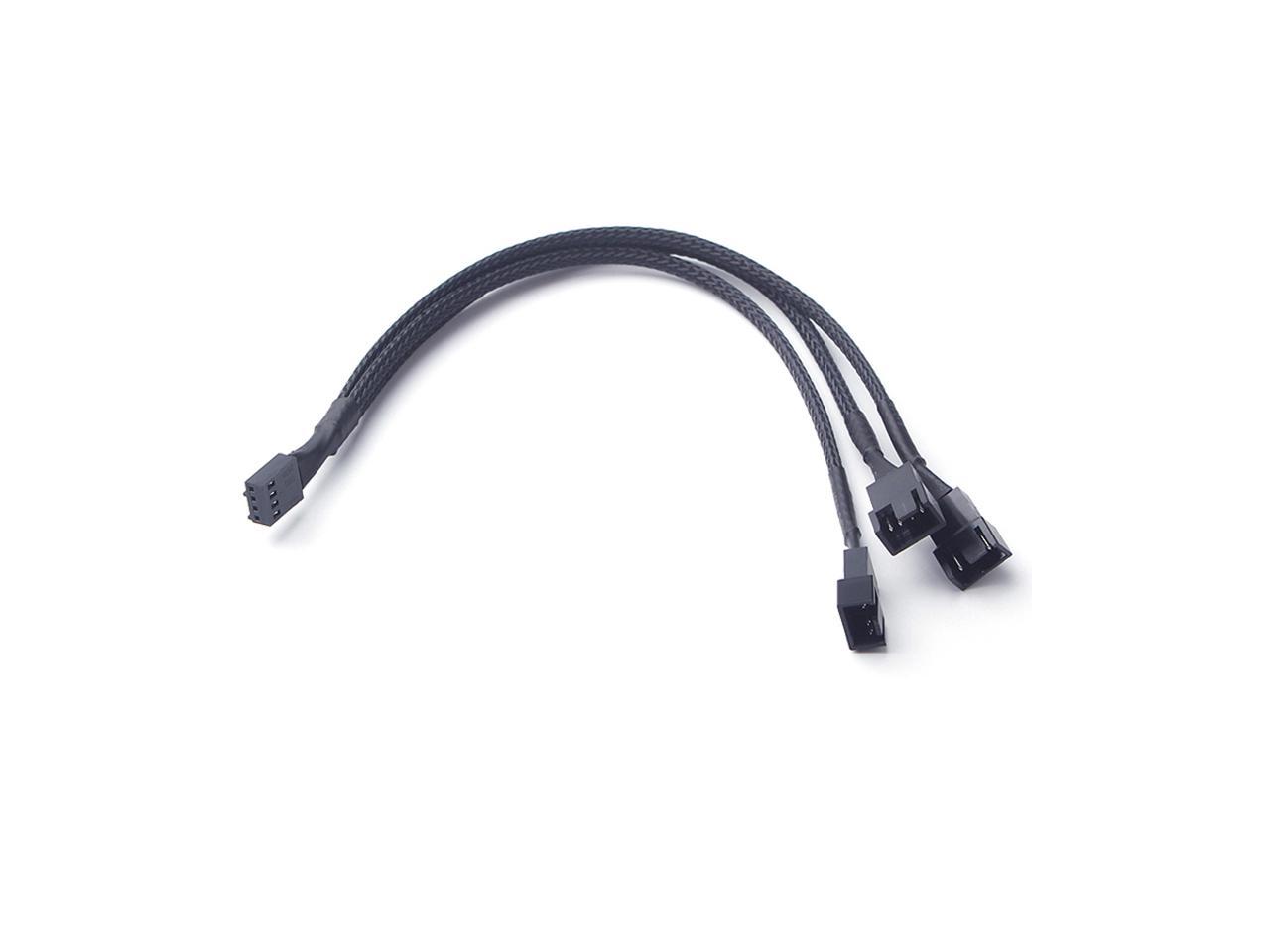

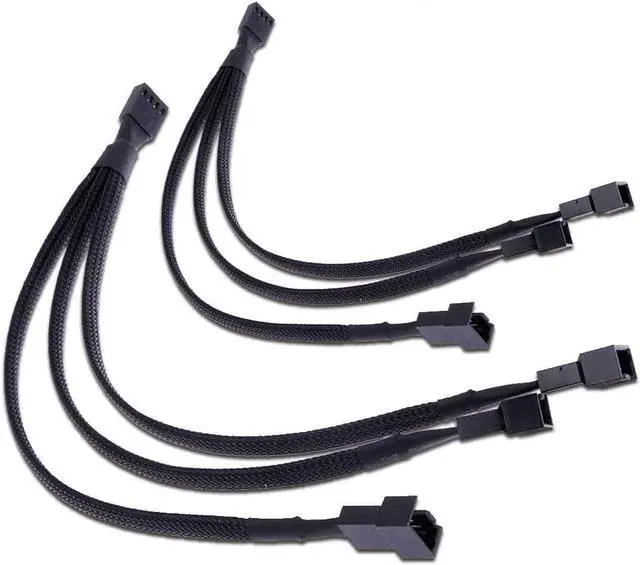

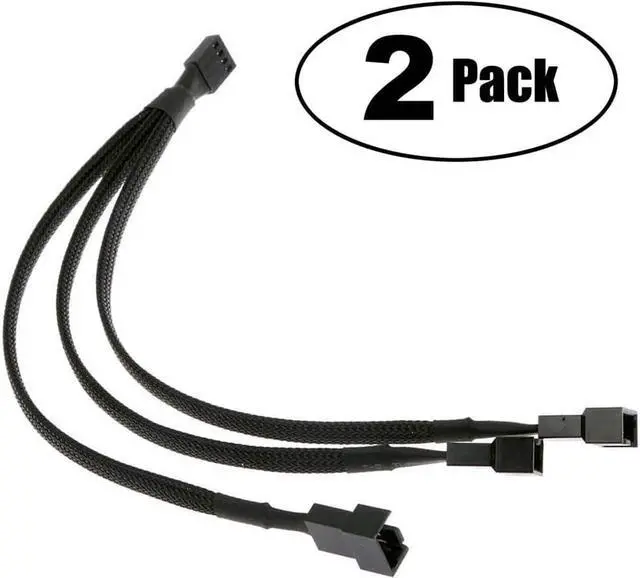

- 1x3 PWM 4Pin splitter power cable
- 10 inches
- PWM 4pin female header for motherboard CPU_Fan/SYS_Fan connection
- 3 TX4 female headers for fans connection

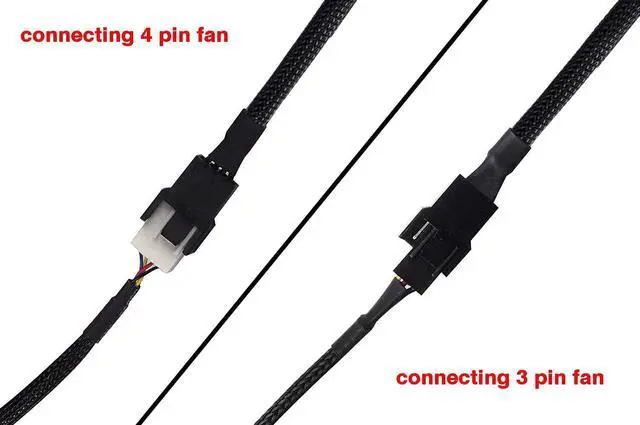

- Compatible with all 3pin and 4pin fans

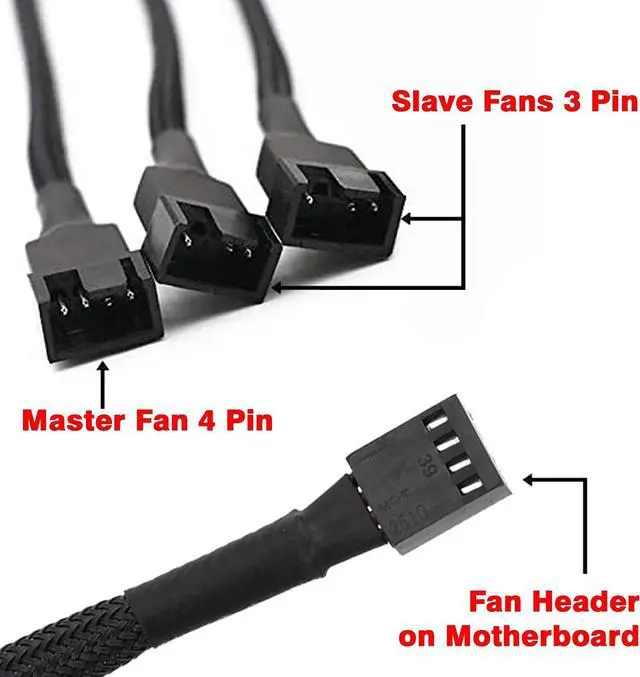

- Have a full 4 pin fan connector that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan
- The other headers are 3 pin fan connector, omit the RPM signal pin for tandem fan speeds
- Support PWM function for 4Pin fans
- 2Pin/3Pin fans run in full speed
- Sleeved Black Just
- Provide durable long-lasting performance and easy cable management
SPECIFICATION
| Cable Type | 1x3 PWM 4Pin Power Splitter Cable |
|---|---|
| Connector A | PWM 4pin Female for Motherboard CPU_Fan Header |
| Connector B | PWM 4pin Male - Full 4 Wires for CPU Cooler |
| Connector C | 2 x PWM 4pin Male - 3 wires only, missing the pin of tach |
| Cable Length | 10 Inches Power 12V DC |
| Cable Color | Sleeved Black |
