Type:Power Cable
Origin:Mainland China
Certification:NONE
[product name]: 4Pin one in three fan interface expansion cable
[product length]: 26.5cm
[wire model]: 1007 24awg
[insulation material]: PVC insulation
[conductor Specification]: 11 * 0.12ts
[conductor material]: tinned copper
[outer diameter of wire]: od1.4mm
[rated temperature]: 80
[wire color]: Black
[product weight]: 16g
[product interface]: one end is the small 4Pin connector of the main board, and the other three ends are the small 4Pin connector of the fan
[product function]: make three computer fans share one interface
Usage: the CPU plug (4Pin) is not long enough, and the three pins of the chassis fan are not long enough, etc. It mainly extends and expands the three pin interface of the motherboard
This line is divided into three heads
There are four lines at one end, and the colors are blue, yellow, red and black respectively
The colors of the other three end lines are [blue, red and black]

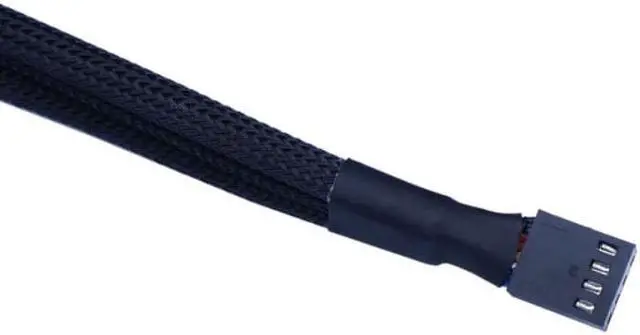

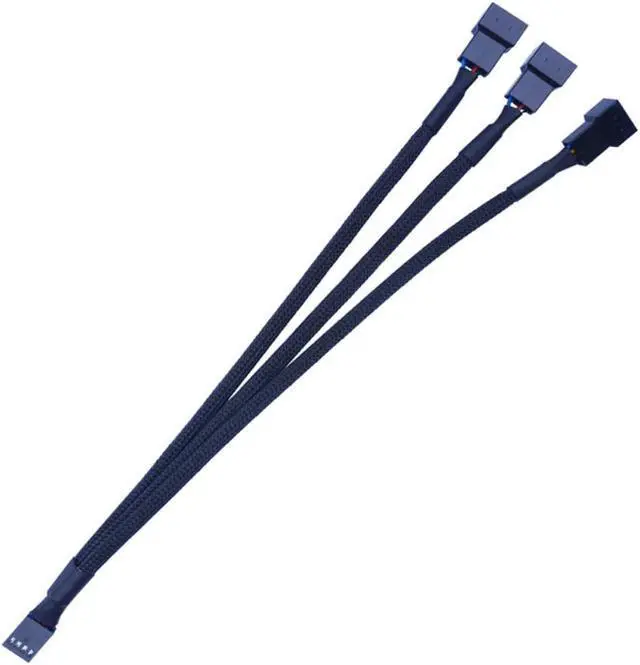

[product picture:]
