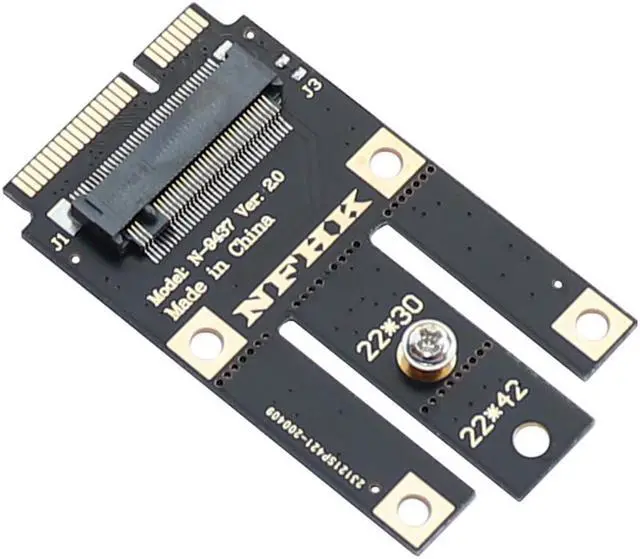

M.2 NGFF Key A+e Key A To Mini Pci-e Express Adapter for Wifi Wireless Card

Type:PCI-E Riser
Origin:Mainland China
Certification:NONE

There are many compatibility problems with the wireless network card module. Please be sure to read the following product introduction before purchasing. Once you pay for the purchase, our store defaults that you have known the risks mentioned below and the warranty return instructions!
Special statement: this adapter card is theoretically applicable to the wireless modules of a + e key m.2 ngff and a key m.2 ngff. However, some brand computers use OEM customized wireless m.2 ngff wireless modules, and the pin definitions of the interface are different. This is an individual phenomenon. It is best to send physical photos for consultation before purchase. In addition, this adapter card is connected to your computer, It will be higher than your original Mini PCIe wireless network card module (because a seat is installed on the circuit board and a wireless module is inserted, which is about 2mm thicker than your original wireless module. The specific thickness depends on the thickness of your m.2 wireless module). Please make sure that your computer has installation space! In addition, with this combination, you must pay attention to whether the original antenna feeder of your computer is matched with your wireless module (generally, the m.2 ngff wireless module adopts IPX feeder), and whether the installation space of your own computer is sufficient after such combination!
About Bluetooth: there are two reasons for whether the wireless module Bluetooth can be used. One is whether your wireless module has Bluetooth function, and the other is whether your computer Mini PCIe wireless interface has integrated USB signal cable. Both are indispensable. This adapter card can support Bluetooth function (the adapter card has USB signal cable connected from the wireless module).
be careful:
1: This product only supports wireless modules of a + e key and a key m.2 ngff wireless network card types.
2: Some m.2 ngff wireless network cards only support Windows 10 operating system (for example, 9560ac, 9560ngw, 9260ac, 9260ngw only support win 10 system). Some m.2 ngff wireless network cards do not support amd motherboard (for example, 9560ac and 9260ac do not support amd motherboard). This is only the model tested at present. I can't test all the models on the market, so if the driver is installed but can't be used, please understand each other.
3: HP, Dell and Lenovo ThinkPad computers can't use all m.2 ngff wireless network cards because of the white list restrictions. Before buying a wireless network card, you should communicate clearly with the seller of the wireless network card! Please also note that the m.2 ngff wireless module removed from HP, Dell and Lenovo ThinkPad computers may also be incompatible if installed on computers of other brands!
3: The adapter card does not need any driver, because the adapter card does not carry any chip and there is no chip, so there are no so-called driver and compatibility problems. What you need to install is the driver of your own wireless network card module. The wireless network card module cannot work normally without driver or driver installation error!
