LED Colorful Lights with Signal Amplifier 12V24v Light Bar Signal Amplifier RGB Relay Amplifier Synchronizer

Type:Power Cable
Origin:Mainland China
Certification:NONE

Model: ys-amf-l4

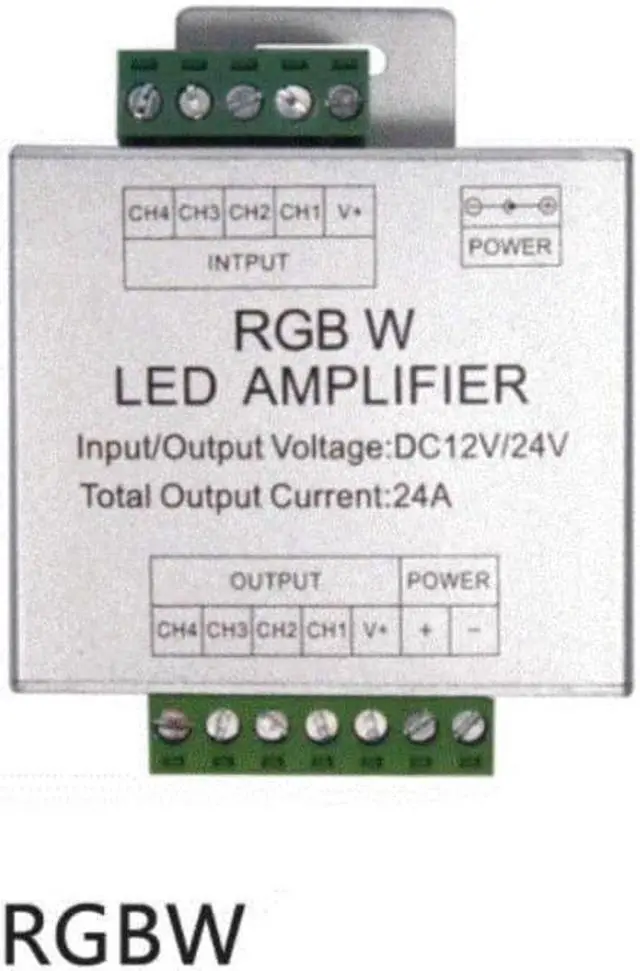

name:; Aluminum shell RGBW amplifier

Product description
Four way amplifier is applicable to all voltage controlled LED controllers and can accept PWM (pulse width modulation). Each additional amplifier can connect twice the number of LEDs. Theoretically, countless four way amplifiers can be connected.
performance parameter
operating temperature: - 20-60
power supply voltage: dc12v-24v
output channel: 4 circuits;
output power: 12V 288w, 24V 576w;
connection mode: common Yang
controller size: l81 × W64 × H24mm
package size: l115 × W70 × H35mm
net weight: 90g; gross weight: 110
static power consumption:
output current:
Overall dimension:

Interface Description:
Power input interface: the conventional DC power socket is used as the power input interface, and the pair plug with screw is used.
Signal input interface: a pair of plugs with screws are used.
Load output interface: a pair of plugs with screws are used.
Connection method:
1. Connect the load light bar first, and ensure that there is no short circuit before power on;
2. After confirming that there is no short circuit, connect 12-24V power supply, and do not connect high-voltage power (refer to the following wiring diagram);
3. According to the silk screen prompt on the amplifier panel, connect the input and output signal lines in sequence to ensure that there is no short circuit between lines, and then connect the power supply to the amplifier. For specific use with LED control, please refer to the following
.
Wiring diagram:
matters needing attention:
1. The power supply voltage of this product is DC12 ~ 24V and shall not be connected to other voltages;
2. The outgoing line shall be correctly wired according to the color and label provided in the wiring diagram;
3. This product should not be overloaded.
4. Do not use the amplifier in a wide range of metal areas or areas with strong electromagnetic waves nearby, otherwise the communication distance will be seriously affected.
