Sell like Hot Cakes Adapter Card 3.5 IDE SD 3.5" 40Pin Male IDE Hard Disk Drive High Speed Drop Shipping
- Sell like Hot Cakes Adapter Card 3.5 IDE SD 3.5" 40Pin Male IDE Hard Disk Drive High Speed Drop Shipping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:Power Cable
Origin:Mainland China
Certification:NONE
SD card has the characteristics of small volume, large capacity, earthquake and moisture resistance, high temperature resistance, stable performance, permanent and effective data storage, no noise and no seek error. Memory card is a popular mainstream product nowadays.

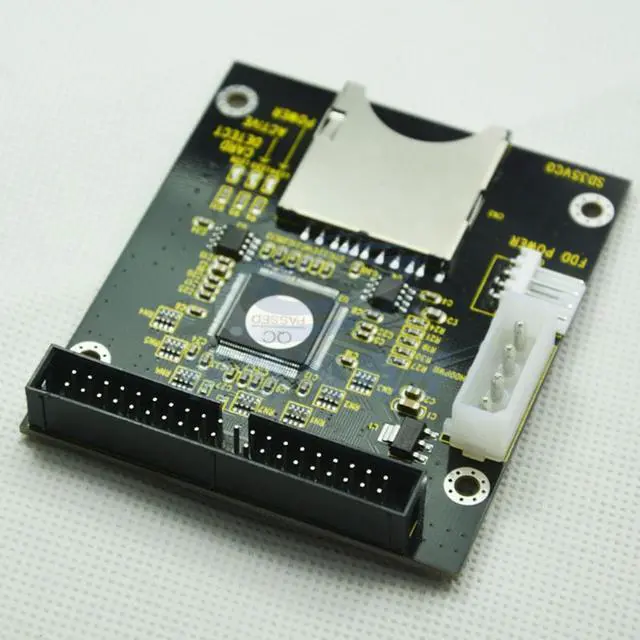

This adapter card allows you to connect the SD card with this advantage to the standard ATA IDE interface as a standard ide storage device.
Product specification:
A standard ide 3.5 'interface;
A standard SD socket;
A standard large 4Pin power connector.
Instructions for sd-ide adapter board
Connection Description:
1. The power supply base can be powered by hard disk. This card only needs 5V power supply, and the normal working voltage is 5V ± 0.25V. The working current is less than 200mA.
2. Please select 80 pin hard disk connection cable for IDE socket. This card supports PIO, multi word DMA and ultra DMA host data transfer modes;
3. SD socket supports 128GB SD card at most.
Connect the power supply and IDE cable. After inserting the SD card into the SD socket, the conversion board is equivalent to an electronic hard disk without installing the driver. After installing the operating system, you can start the operating system via SD memory card (such as Windows98, etc.).
The data transmission rate is high, and the speed is roughly the same as that of the system hard disk (ATA / 133, u-dma Mode3).
Origin:Mainland China
Certification:NONE
SD card has the characteristics of small volume, large capacity, earthquake and moisture resistance, high temperature resistance, stable performance, permanent and effective data storage, no noise and no seek error. Memory card is a popular mainstream product nowadays.
This adapter card allows you to connect the SD card with this advantage to the standard ATA IDE interface as a standard ide storage device.
Product specification:
A standard ide 3.5 'interface;
A standard SD socket;
A standard large 4Pin power connector.
Instructions for sd-ide adapter board
Connection Description:
1. The power supply base can be powered by hard disk. This card only needs 5V power supply, and the normal working voltage is 5V ± 0.25V. The working current is less than 200mA.
2. Please select 80 pin hard disk connection cable for IDE socket. This card supports PIO, multi word DMA and ultra DMA host data transfer modes;
3. SD socket supports 128GB SD card at most.
Connect the power supply and IDE cable. After inserting the SD card into the SD socket, the conversion board is equivalent to an electronic hard disk without installing the driver. After installing the operating system, you can start the operating system via SD memory card (such as Windows98, etc.).
The data transmission rate is high, and the speed is roughly the same as that of the system hard disk (ATA / 133, u-dma Mode3).
