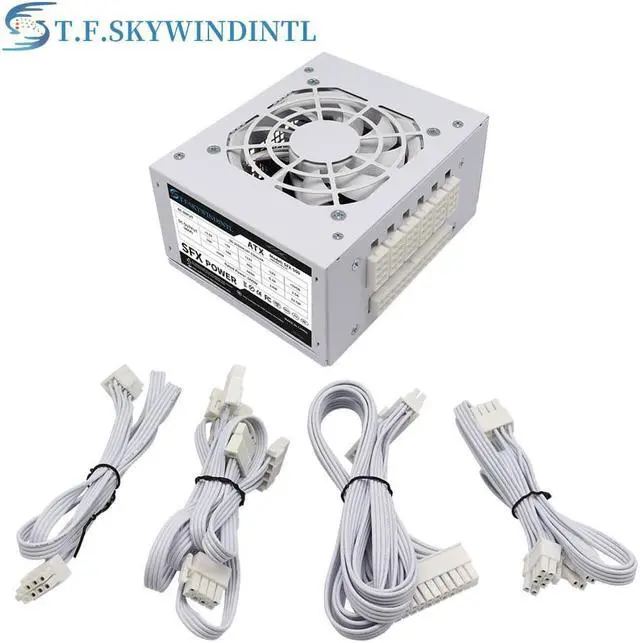

T.F.SKYWINDINTL Mini ITX Solution/SFX 12V / Micro ATX 80 Plus Certified Power Supply
- T.F.SKYWINDINTL Mini ITX Solution/SFX 12V / Micro ATX 80 Plus Certified Power Supply
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fans:1
PFC Type:Active
Number of SATA Ports:4
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:2
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:SFX
Input Voltage:90v-264v
Modular:Full Modular
80 PLUS Certification:80 PLUS
Origin:Mainland China
Certification:CE,RoHS
Specification:
1: Power supply size: 120*100*63mm
2: Power standard: ATX/SFX 12V
3: For CPU range: AMD, Intel
4: PFC type: Active PFC
5: Rated power: 500W
6: Maximum power: 750W
7: Efficiency: 85%
8: Input voltage: 94V-264V
9: + 3.3V output current 18A/100w.
+ 5V output current 18A/100w
+ 12V1 output current 40A/480w
- 12V output current 0.3A
+ 5Vsb output current 2.5A
10: Supports wide voltage: Yes
11: Support temperature control PWM: Yes
12: Authentication: CB, CCC, FCC, class, B, CE, ROHS
PFC Type:Active
Number of SATA Ports:4
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:2
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:SFX
Input Voltage:90v-264v
Modular:Full Modular
80 PLUS Certification:80 PLUS
Origin:Mainland China
Certification:CE,RoHS
Specification:
1: Power supply size: 120*100*63mm
2: Power standard: ATX/SFX 12V
3: For CPU range: AMD, Intel
4: PFC type: Active PFC
5: Rated power: 500W
6: Maximum power: 750W
7: Efficiency: 85%
8: Input voltage: 94V-264V
9: + 3.3V output current 18A/100w.
+ 5V output current 18A/100w
+ 12V1 output current 40A/480w
- 12V output current 0.3A
+ 5Vsb output current 2.5A
10: Supports wide voltage: Yes
11: Support temperature control PWM: Yes
12: Authentication: CB, CCC, FCC, class, B, CE, ROHS
