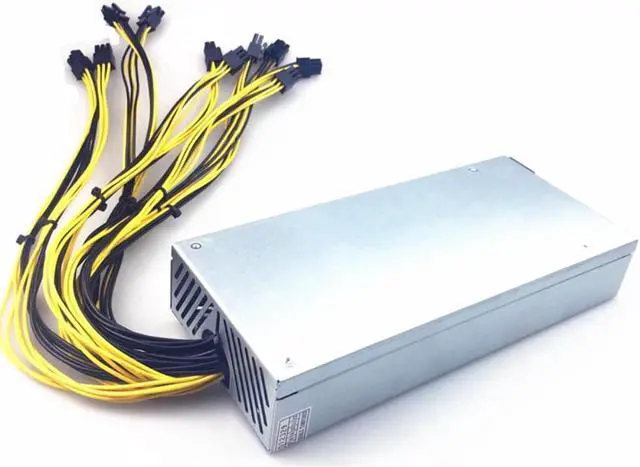

1U Mining PSU Pc Power Supply 1800W 6P Miner Power Supply For Bitcoin 1800W 1U Antminer PSU Power Supply For S9 L3+ E3 X3 D3 S7

PFC Type:PASSIVE
Graphics Card 12V Pin Number:6 pin
Package:Yes
Application:Server,Desktop
Model Number:200WADGFxh
Output:see below
Input Voltage:150-240v
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

1U Mining PSU Pc power supply 2000w 6P miner power supply for bitcoin 2000w 1U Antminer PSU Power Supply for S9 L3+ E3 X3 D3 S7
Features:
Durable and
Specially designed model, unique shape and nice appearance
Low interference and noise
High efficiency and reliability
Short circuit and over voltage protection
Heat Dissipation Mode, Air Blast Cooling
Descriptions:
Fit For: S9(12.5T/13T/13.5T) S7 Ant Series Mining Machine
Input Under-voltage Protection Point: 180 V, Input Under-voltage Recovery Point: 185 V. Automatic recovery can be achieved. The backlash is not less than 5V.
Input Over-current Protection. Over-current point is between 140~160A.
Output Short-circuit Protection. Recovery can be achieved after the removal of short circuit.
Input Over Temperature Protection. When the temperature switch is higher than 100 degrees, turn off the 12V output. The temperature can be restored automatically below 65 degrees centigrade.
Specifications:
Color: Silver
Cable Length: about 39cm / 15.35in
Connectors: 6 PIN x 10
Number of Interfaces: 10
Input Characteristic
Voltage Range: AC176-264V
Input Rated Voltage: AC200-240V
Starting Inrush Current: 80 A
Maximum Input Current: 10 A
Efficiency: 92%
Output Characteristics
Output Rated Voltage: DC12.25V
Load Regulation: ±2%
Linear Regulation: ±1%
Rated Output Power: 2000w
Output Current: 0-150A
Output Ripple And Noise: 120 mVp-p
Drive And Shut Down Overshoot Range: ±5%
Rise Time: 100 ms(230V rated load test)
Boot Time: 3 S(230V rated voltage test)
Hold Up Time: 10 mS(230V rated voltage test)
Environment Conditions
Operating Temperature: -40~+50 Full Load (Typical value is 25 .)
Storage Temperature: -40~+85 (Typical value is 25 .)
Operating Humidity: 5~95% Frost-free
Storage Humidity: 0~95% Frost-free
Package Included:
1 x Mining Power Supply
