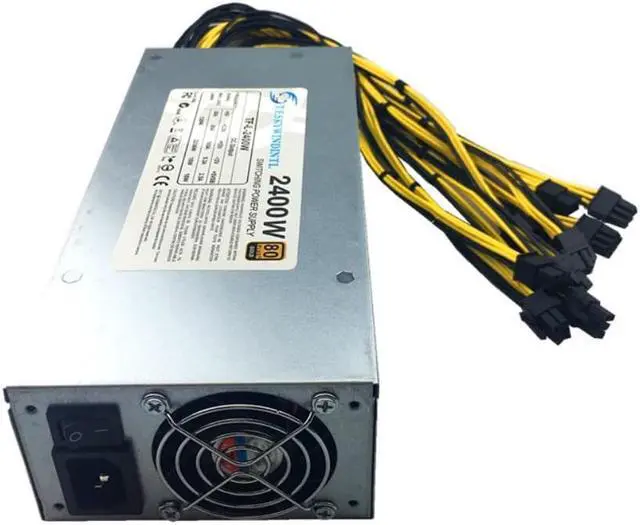

T.F.SKYWINDINTL 2400W Pc Power Supply 2400W Mining Psu Power Supply Bitcoin Mining Machine BTC ETH Antminer S7 S9 L3+

PFC Type:Active
Number of SATA Ports:3
Graphics Card 12V Pin Number:0
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:2400w
Output:see below
Input Voltage:180v-265v
Modular:Non-Modular
80 PLUS Certification:Gold
Origin:Mainland China
Certification:NONE
connector:10*6pin

T.F.SKYWINDINTL 2400W pc power supply 2400W mining psu power supply Bitcoin Mining Machine BTC ETH Antminer S7 S9 L3+
Specifications
---Name: Mining Power Supply
---Size: 240x110x65mm
---Cable Length: 32 cm
---Connectors: 6 PIN X 10 Pcs
---Number of Interfaces:10
---Fit For: S9(12.5T/13T/13.5T) S7 Ant Series Mining Machine
---Voltage Range: AC 176~264 V
---Input Rated Voltage: AC 200~240 V
---Starting Inrush Current: 80 A
---Maximum Input Current: 10 A
---Efficiency: 92%
---Output Rated Voltage:DC 12.25 V
---Load Regulation: ±2%
---Linear Regulation: ±1%
---Rated Output Power: 2600W(Max)
---Output Current: 0~130 A
---Output Ripple And Noise: 180 mVp-p
---Drive And Shut Down Overshoot Range: ±5%
---Rise Time: 100 ms(230 V rated load test)
---Boot Time: 3 S(230 V rated voltage test)
---Hold Up Time: 10 mS(230 V rated voltage test)
---Input Under-voltage Protection Point: 180 V
---Input Under-voltage Recovery Point: 185 V
(Can automatic recovery, the backlash is not less than 5V)
---Input Over-current Protection: Yes
(The over-current point is between 130~160A)
---Output Short-circuit Protection: Yes
(Recovery after removal of short circuit)
---Input Over Temperature Protection: Yes
(When the temperature switch is higher than 100 degrees, protect, turn off the 12V output, and the temperature can be restored automatically below 65 degrees centigrade.)
---Operating Temperature: -40~+50 Full Load (Typical value is 25 )
---Storage Temperature: -40~+85 (Typical value is 25 )
---Operating Humidity: 5~95% Frost-free
---Storage Humidity: 0~95% Frost-free
---MTBF: 50000 H (Typical value is 25 )
---Altitude: 5000 m (Normal Work)
---Heat Dissipation Mode: Air Blast Cooling
Package Included
---1 x Mining Power Supply
