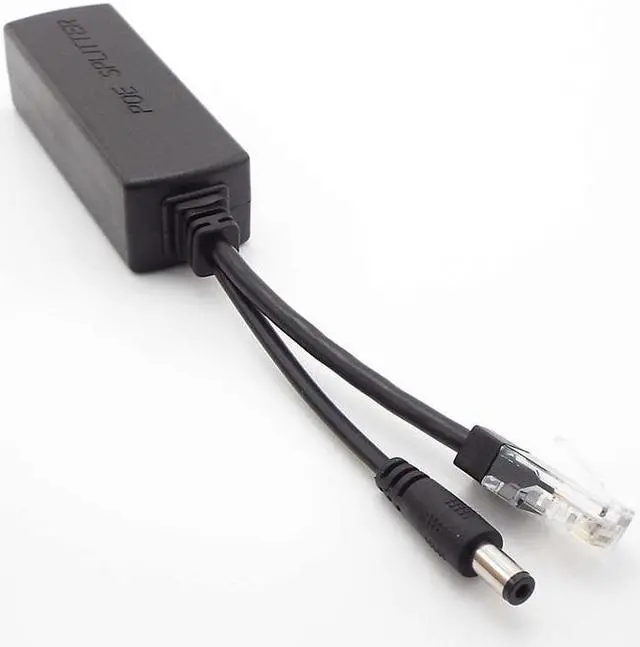

48V to 12V POE Splitter Connector Poe Power Adapter injector Switch for IP Camera Wifi Cable Wall US/EU Plug

48V to 12V POE Splitter Connector Poe Power Adapter injector Switch for IP Camera Wifi Cable Wall US/EU Plug
Support the IEEE 802.3 af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter
Specification:
Compliant with IEEE 802.3 af 15.4W
Isolation: 2.5 kV
Power Input: DC44~57V
Power Output: DC12V 1A~2A(Rated 1.3A, max. 2A)

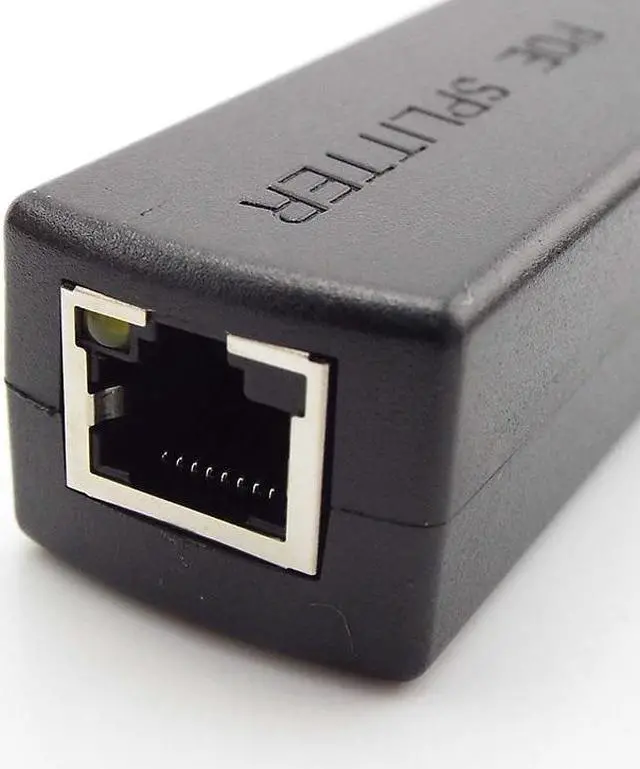

Data&Power INPUT Port: from RJ45 female

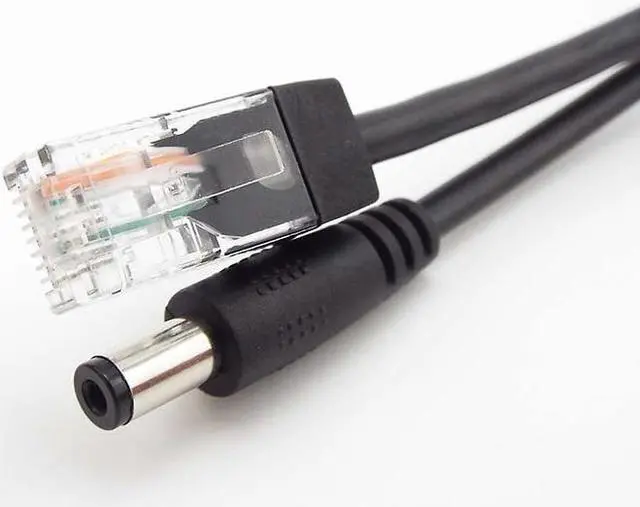

Data Output Port: RJ45 Male
Power Output Port: 5.5 x 2.1 mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin: support both 1/2(+), 3/6(-)
Body size: 80 x 27x 22 mm
DC cable length165mm
RJ45 Modular Plug cable length155mm
Weight: 55g
DC Out Power Pin: inside positive (+) outside negative (-)
Operation Temperatue: -20 ~ 60
Notice:
Yellow LED (power) will be light up when DC Port connects to the device.
Green LED (data) never light in any circumstances, two reasons are below,
1. This splitter allows data to input and output through its RJ45, but no indicator on this splitter indicats the status of the data transfer, only one power indicator shows the working status of the POE.
2. due to the cost problem, the network interface component is from the universal components which own two LEDs on the market.
