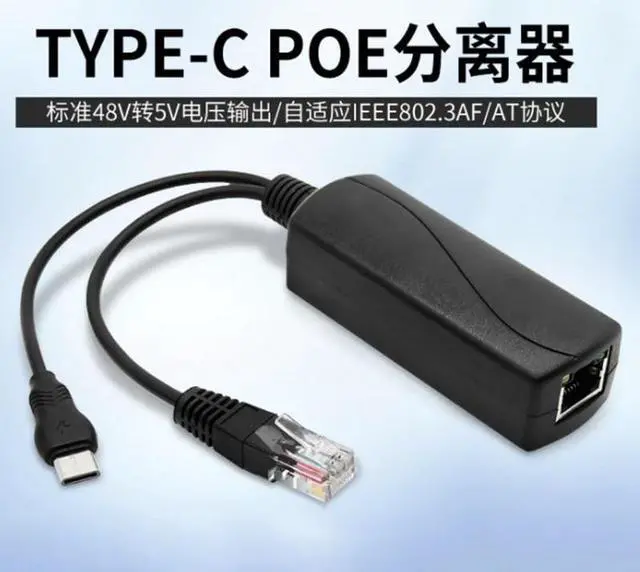

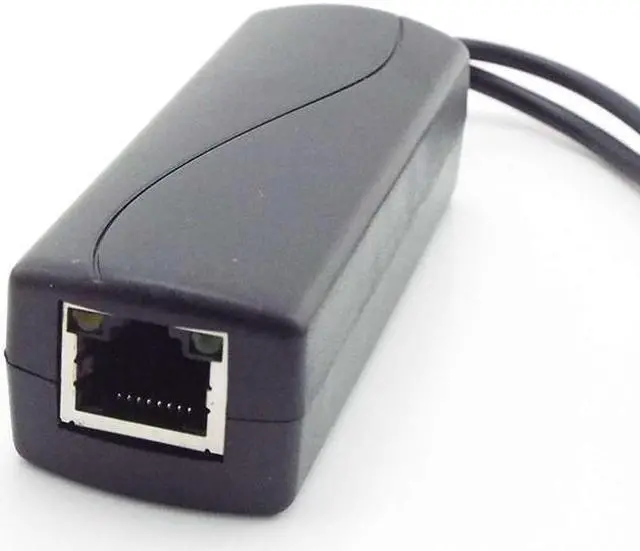

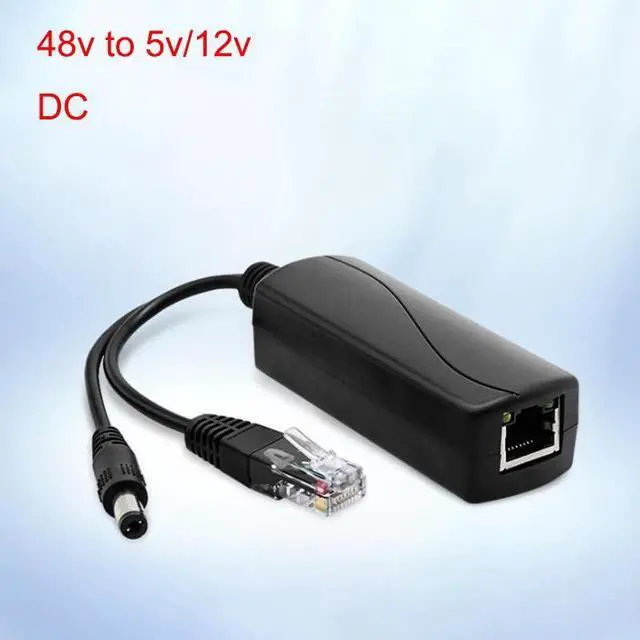

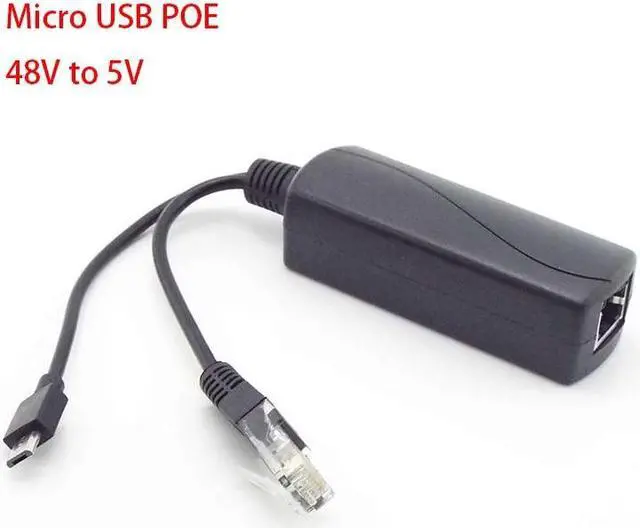

48V To 5V/12V PoE Splitter 5v POE Micro USB tpye-C DC Power supply Over Ethernet Active POE Splitter tpye-C for Raspberry Pi(48V to Type C)

PoE Splitter 5v POE usb tpye-C Power Over Ethernet 48V To 5V/12V Active POE Splitter Micro USB tpye-C DC Plug for Raspberry Pi
48V To 5V/12V PoE Splitter 5v POE Micro USB tpye-C DC Power supply Over Ethernet Active POE Splitter tpye-C for Raspberry Pi

1. The POE power supply splitter has a transmission distance of 100 meters,, stable transmission signal, continuous signal transmission, and low data transmission interference.

2. With power-off protection, circuit protection, stable transmission, voltage protection. Circuit isolation protection.

3. The output voltage is stable, the input voltage fluctuation is isolated, to prevent the camera from burning out, the wide input voltage is 48-52V, and the output voltage is 12V

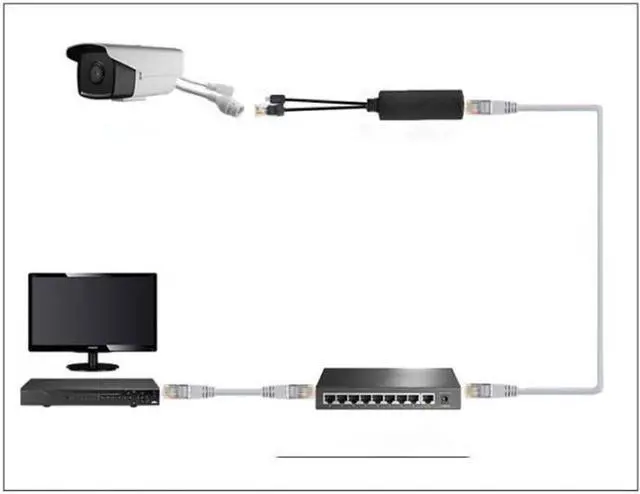

4. It is widely used in monitoring systems, high-definition web cameras, network set-top boxes, wireless network access points, medical equipment systems, and advertising all-in-one machines.
Description:
48V with isolation boost circuit protection. The isolation transformer forms circuit isolation protection for the circuit.
Compliant with IEEE 802.3 af / at
Isolation: 2.5 kV
Power Input: DC 44~57V
Power Output: DC 12V/DC 5V/Micro USB/Type-C
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE 802.3 af/at PoE)
Data Output Port: RJ45 Male
Max Transmission distance: 150Meters (Depends on the quality of RJ45 Cable)
Data Transfer Rate: 10/100/1000Mbps (Only the Gigabit Version is 1000Mbps)
Devices will be detected before poe input
Power Pin: support both 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
Size: 82 x 28.5 x 23 mm
DC cable length: 215mm
RJ45 Modular Plug cable length: 220mm
