1to5 4-Pin TX4 PWM CPU Cooling Fan Splitter Cable 12V Braided LED Sata Power Cable Hub Splitter Adapter For Computers(1 to 4)

1 to 5 4-Pin TX4 PWM CPU Cooling Fan Braided Power Cable Hub Splitter Adapter

Specifications

:
Capable of expanding one motherboard PWM fan header to support up to five fans.
Support PWM function, speed control, satisfy your control needs.
Compatible with 3-pin/ 4-pin fans. (Due to 3 pins no PWM controller, 3-pin fans would run in full speed. )
Support cable management.

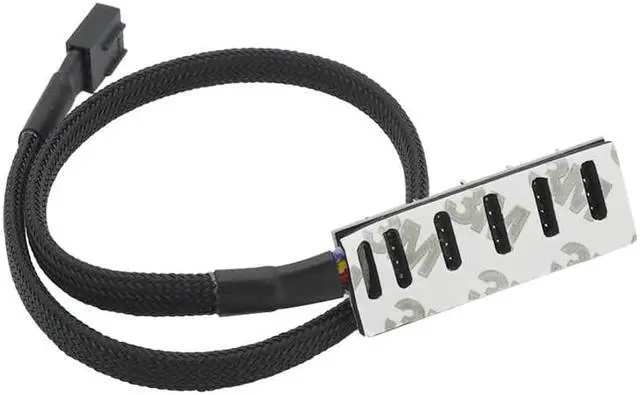

Comes with self-stick for easy installation and options to hide the PCB itself.
Since only one RPM signal can be read by one motherboard connector, only CPU fan channel of the PWM splitter carries an RPM signal.
Thus the motherboard will only read the RPM signal of the PWM device that is connected to channel 1 of the splitter.
Type: Cooling Fan Hub
Material: Nylon + Plastic + Metal
Connector A: 1-TX4 4-pin Female
Connector B: 1-TX4 4-pin Male for CPU Fan, 4-TX4 4-pin Male for Case Fan
Voltage: DC 12V
Features: Plug& play, 5-Port, Good Performance
Length: 39.5 cm/ 15.55" (Approx. )
Notes:
PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default.
This is only a fan hub, not fan speed controller.
Only 4-pin PWM fans speed can be adjusted by fan controller software.
3-pin fan would run in full speed, can not be adjusted when connected.
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

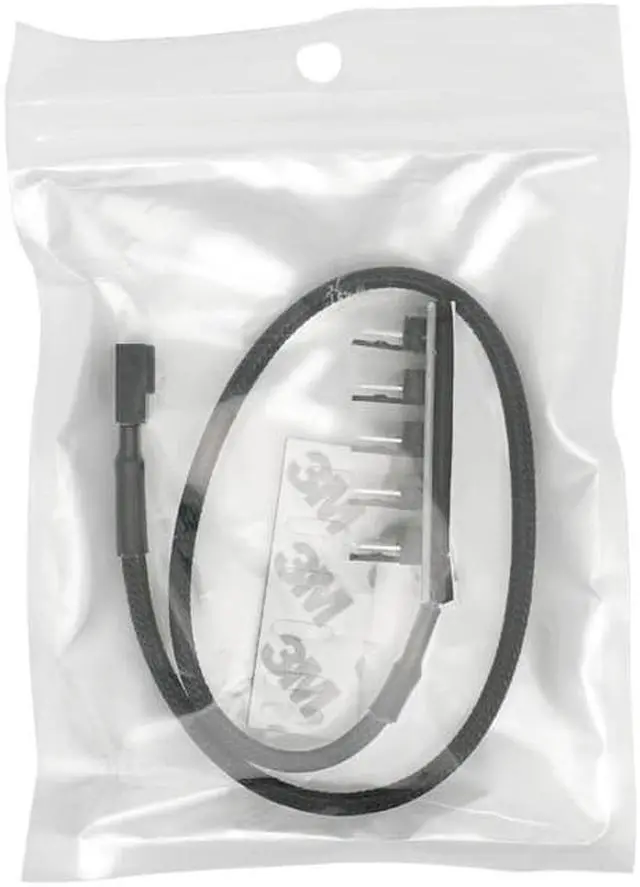

Package Includes:
1 x Cooling Fan Hub
