Test and Working P2G-5600V 600W 2U Single ATX Power Supply 600W Server PSU 80 Plus Bronze
- Test and Working P2G-5600V 600W 2U Single ATX Power Supply 600W Server PSU 80 Plus Bronze
+
+
Overview
Specs
Reviews

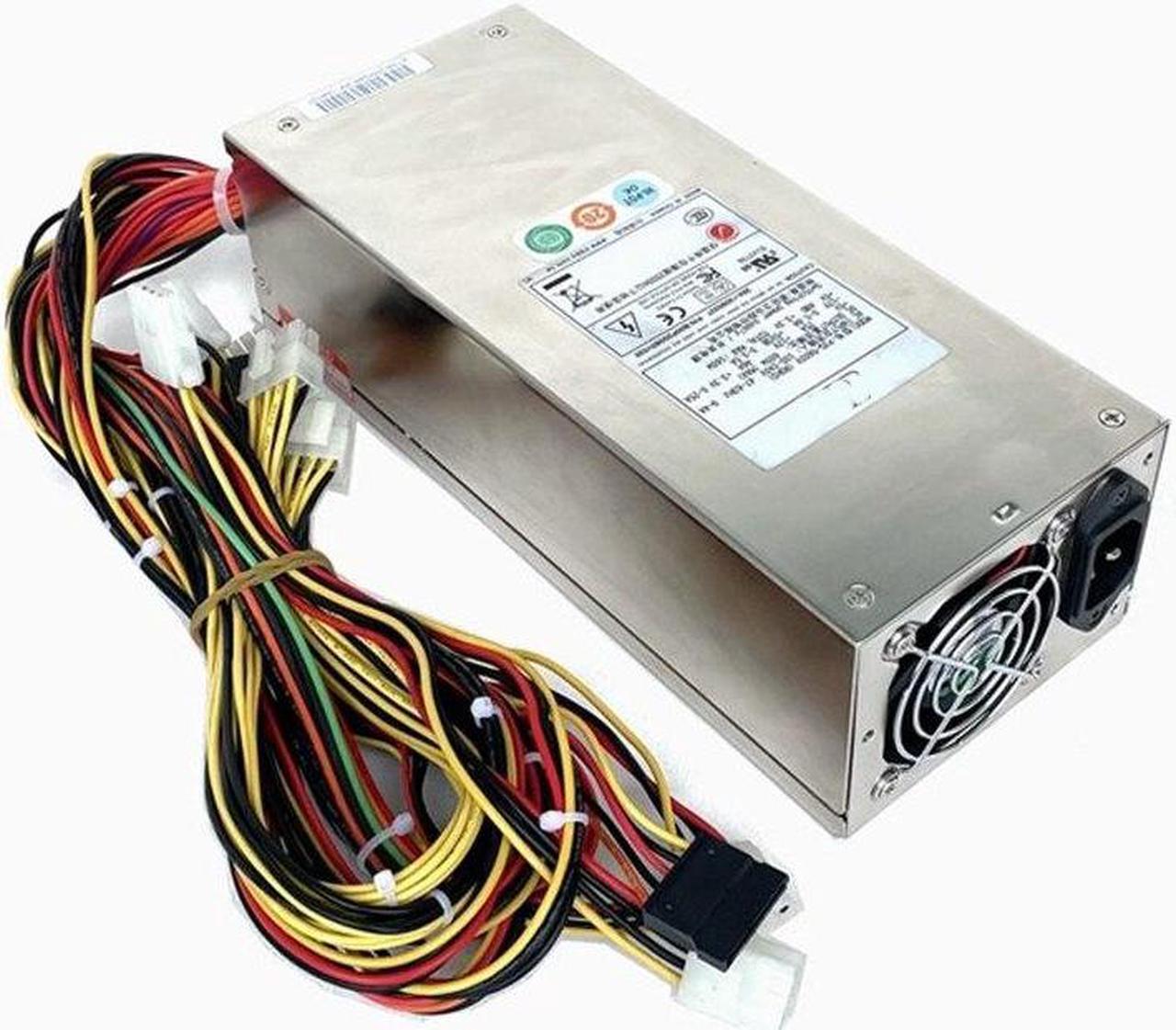

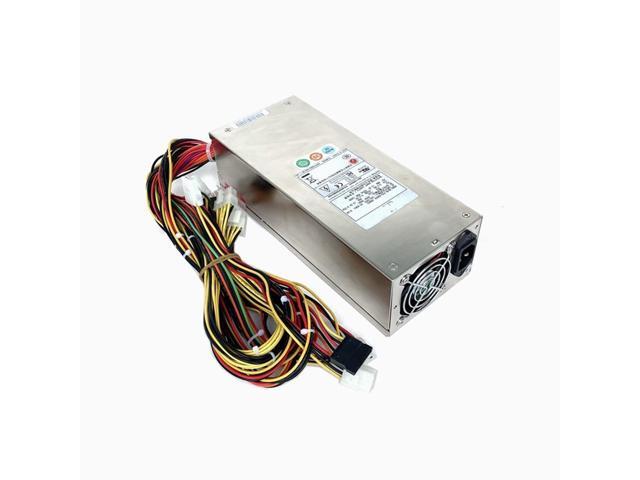

P2G-5600V 600W 2U Power Supply
Model: P2G-5600V, PS-P2G-5600V
HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD
POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
OVER POWER PROTECTION
OVER VOLTAGE PROTECTION
OVER CURRENT PROTECTOIN
SHORT CIRCUIT PROTECTION
EMI: FCC CLASS B, CISPR22 CLASS B
SAFETY: TO MEET UL, CUL, TV, CCC
3.3V / 5V / 12V REMOTE SENSING
COOLING: ONE 60mm DC FAN
DIMENSION: 240 (D) x 100 (W) x 70 (H) mm
MEET IEC-1000-3-2 CLASS D
Dimensions: 240.00 x 100.00 x 70.00 (mm) 9.45 x 3.94 x 2.76 (inch)

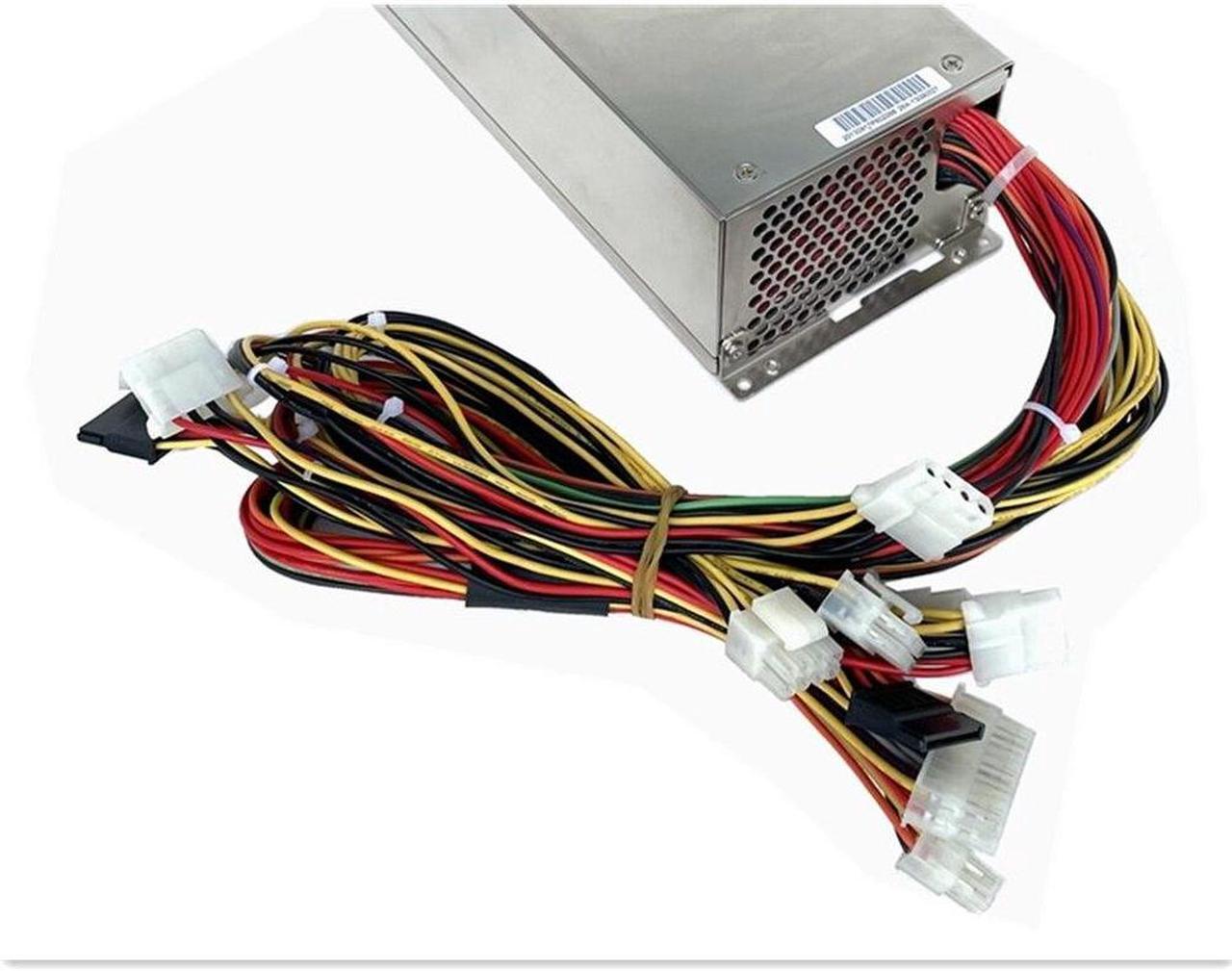

OUTPUT CONNECTORS:
(1) Main 20 + 4-Pin,
(1) 12V 4-Pin,
(2) EPS 8-Pin,
(5) Molex 4-Pin,
(2) Serial-ATA,
(1) FDD 4-Pin,
Model: P2G-5600V, PS-P2G-5600V
HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD
POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
OVER POWER PROTECTION
OVER VOLTAGE PROTECTION
OVER CURRENT PROTECTOIN
SHORT CIRCUIT PROTECTION
EMI: FCC CLASS B, CISPR22 CLASS B
SAFETY: TO MEET UL, CUL, TV, CCC
3.3V / 5V / 12V REMOTE SENSING
COOLING: ONE 60mm DC FAN
DIMENSION: 240 (D) x 100 (W) x 70 (H) mm
MEET IEC-1000-3-2 CLASS D
Dimensions: 240.00 x 100.00 x 70.00 (mm) 9.45 x 3.94 x 2.76 (inch)
OUTPUT CONNECTORS:
(1) Main 20 + 4-Pin,
(1) 12V 4-Pin,
(2) EPS 8-Pin,
(5) Molex 4-Pin,
(2) Serial-ATA,
(1) FDD 4-Pin,
