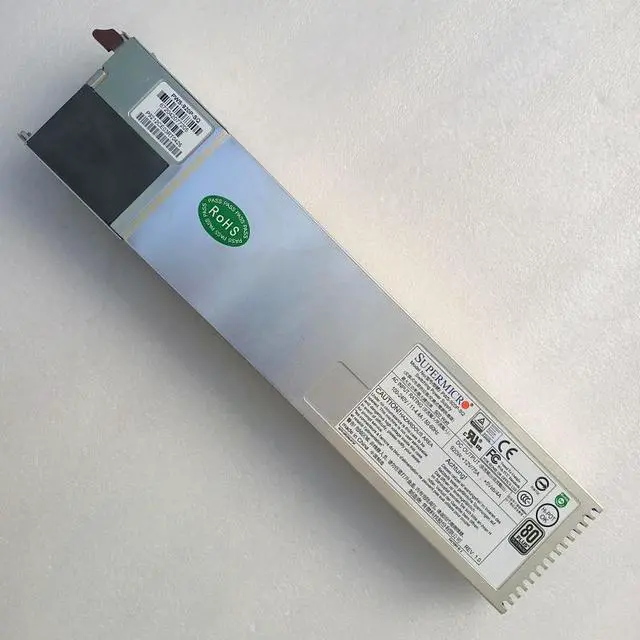

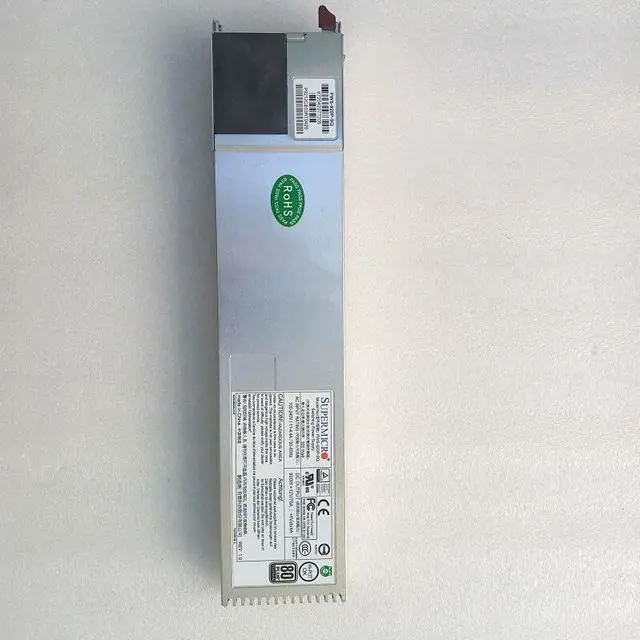

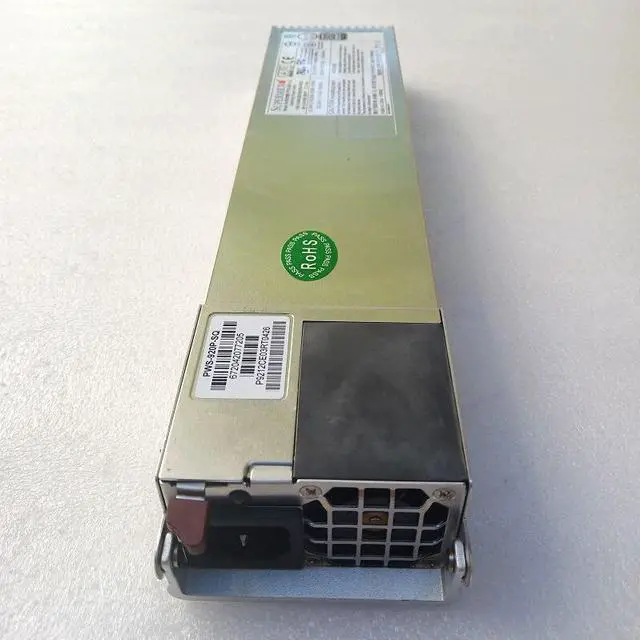

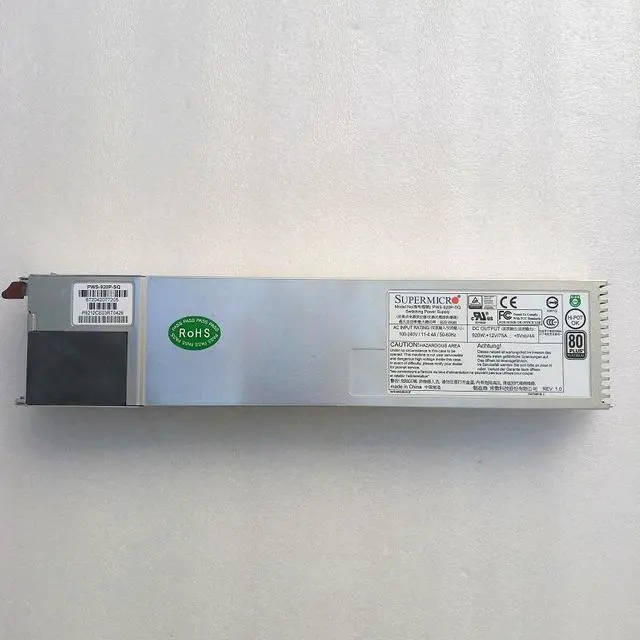

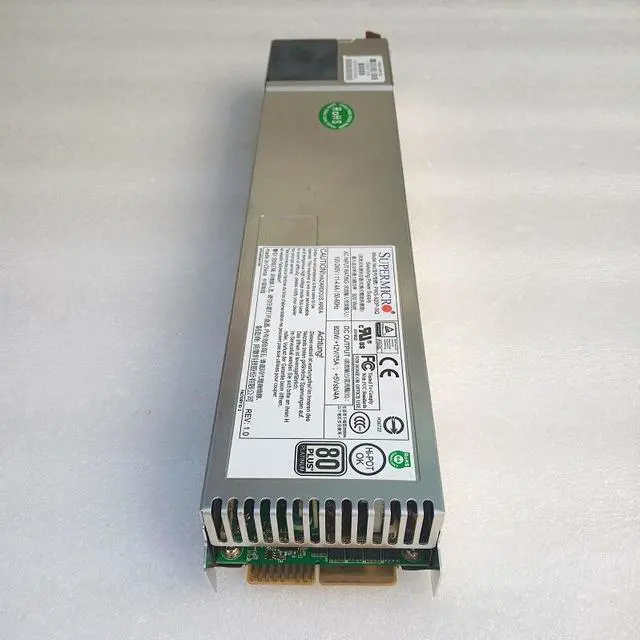

PWS-920P-SQ 920W 1U Redundant Power Supply Unit PSU 80 Plus Platinum

PWS-920P-SQ 920W 1U Redundant Power Supply Unit PSU 80 Plus Platinum
Model Number
PWS-920P-SQ
Total Power Output
920W
Type
Redundant
Form Factor
1U
Dimension (W x H x L)
76 x 336 x 40 mm
AC Input
100-240V / 11- 4.4A / 50-60Hz
DC Output
+12V/75A; +5Vsb/4A
Output Type
Gold Finger (19 Pair connector)
Energy Efficiency
91% Peak
80 Plus Certification
80 Plus Platinum
Validated Systems
SSG-2027B-DE2R24L, SSG-2027R-AR24, SSG-2027R-AR24NV, SSG-2027R-E1CR24L, SSG-2027R-E1CR24N, SSG-2027R-E1R24N, SSG-2028R-ACR24H, SSG-2028R-ACR24L, SSG-2028R-E1CR24H, SSG-2028R-E1CR24L, SSG-2028R-E1CR24N, SSG-5028R-E1CR12L, SSG-6027R-E1CR12L, SSG-6027R-E1CR12N, SSG-6028R-E1CR12H, SSG-6028R-E1CR12L, SSG-6028R-E1CR12N, SSG-6028R-E1CR12T, SSG-6038R-E1CR16H, SSG-6038R-E1CR16L, SSG-6038R-E1CR16N, SSG-6047R-E1R24L, SSG-6048R-E1CR24H, SSG-6048R-E1CR24L, SSG-6048R-E1CR24N, SYS-2027R-N3RF4+, SYS-2027R-N3RFT+, SYS-6027R-CDNRT+, SYS-6027R-N3RFT+, SYS-6028R-TDWNR
Validated Chassis
CSE-216BA-R920LPB, CSE-216BA-R920UB, CSE-216BA-R920WB, CSE-216BAC-R920LPB, CSE-216BE1C-R920LPB, CSE-216BE1C-R920WB, CSE-216BE2C-R920LPB, CSE-216BE2C-R920WB, CSE-216BE16-R920LPB, CSE-216BE16-R920WB, CSE-216BE26-R920LPB, CSE-216BE26-R920UB, CSE-216BE26-R920WB, CSE-219A-R920WB, CSE-826BA-R920LPB, CSE-826BA-R920UB, CSE-826BA-R920WB, CSE-826BAC4-R920LPB, CSE-826BAC4-R920WB, CSE-826BE1C-R920LPB, CSE-826BE1C-R920WB, CSE-826BE2C-R920LPB, CSE-826BE2C-R920WB, CSE-826BE16-R920UB, CSE-826BE16-R920WB, CSE-826BE26-R920LPB, CSE-826BE26-R920UB, CSE-826BE26-R920WB, CSE-829BTQ-R920WB, CSE-835TQ-R921B, CSE-836BA-R920B, CSE-836BE16-R920B, CSE-836BE26-R920B, CSE-846BA-R920B, CSE-846BE16-R920B, CSE-846BE26-R920B
