10 pieces 64GB 128GB 256GB 512GB M.2 NGFF SSD + Adapter Card Replace 2012 MacBook Air A1465 A1466 64G 128G 256G 512G SSD Adapter

10 pieces 64GB 128GB 256GB 512GB M. 2 NGFF SSD + Adapter Card Replace 2012 MacBook Air A1465 A1466 64G 128G 256G 512G SSD Adapter
About Description:
Features:
1: The product only support 2012 version Apple MacBook Air model is A1465 A1466 (MD223 MD224 MD231 MD232).
2: The speed and other properties is not changed, only form conversion interface.

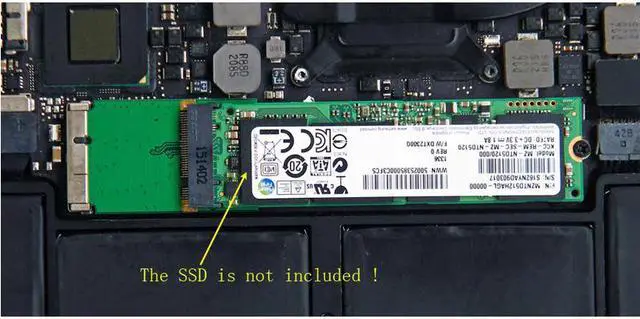

3: Adapter card + M. 2 NGFF SSD can replace original hard disk, also installed the MAC OS or Windows operating system.
Notice:
1: Only sales adapter card, images of SSD and mainboard is not sales!
2: The adapter card only support 22*80 mm size of M. 2 NGFF (SATA) SSD, it does not support PCIe X2 or PCIe X4 transfer mode of solid state drives.
3: Some of M. 2 NGFF SSD is not compatible with apple laptop, Such as the use Sand-Force main control chip of solid-state drives, If it is installed on the Apple computer, The computer will be crashed, or can't install the operating system, or unable to format the hard disk failure, etc.
4: The buyer can't apply for a refund or return because of compatibility issues, because we don't have the condition to compatibility test of all solid-state drives, if there is a compatibility problem please replace other types of hard disk.
5: Please open the trim function after Mac OS installed, it does not need to manually open if install Windows operating system.
6: This product performance is being improved unceasingly, like has the change, not separate informs even slightly. Pictures for reference only, subject to our available products.
About M. 2
NGFF SSD interface standard:
1.
Socket 2(B +M key): there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2(such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode.
2.
Socket 3 (M key): PCIe X4 (such as MZHPU128HCGM and MZHPU512HCGL models of SSD) transfer mode.
About MacBook Air SSD interface standard:
1: 2010 and 2011 version MacBook Air SSD is 6+12 pin, only one side have contact, size is 109 mm*24 mm. It's SATA interface.

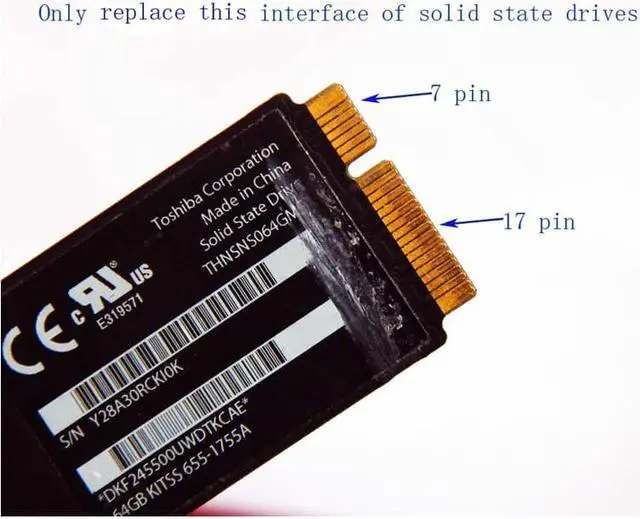

2: 2012 version MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm. 2012 version MacBook Pro SSD is 7+17 pin, size is 89 mm*33 mm. It's SATA interface.
3: 2013 and 2014 and 2015 version MacBook Air SSD is both side have contact, one sid is 16+12 pin, the other side is 11+14 pin, size is 89 mm*24 mm. It's PCIe X4 interface.
4: 2013 and 2014 and 2015 version MacBook Pro SSD is both side have contact, one sid is 16+12 pin, the other side is 11+14 pin, size is 89 mm*33 mm. It's PCIe X4 interface.
You'll receive:

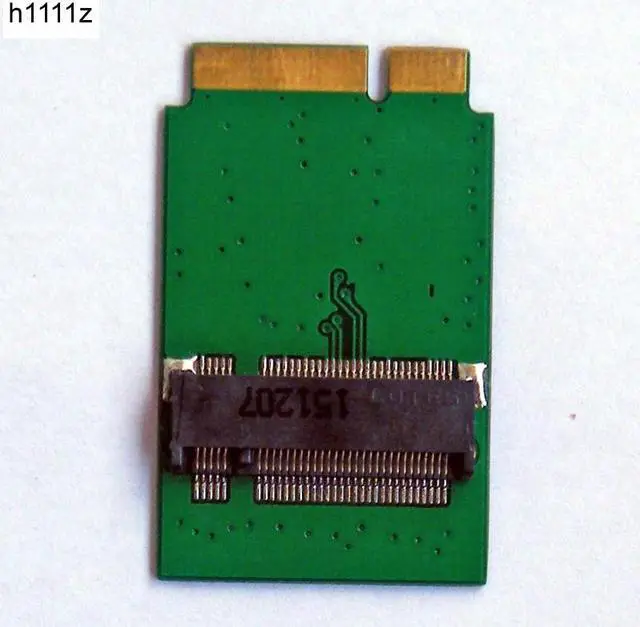

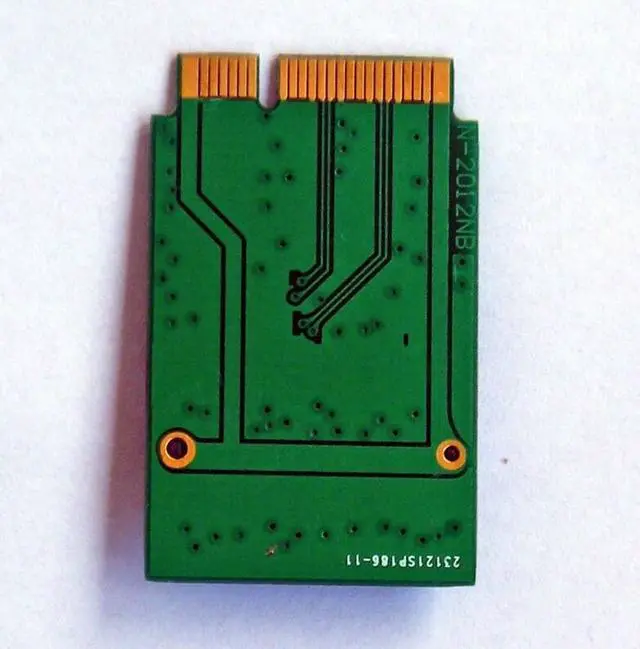

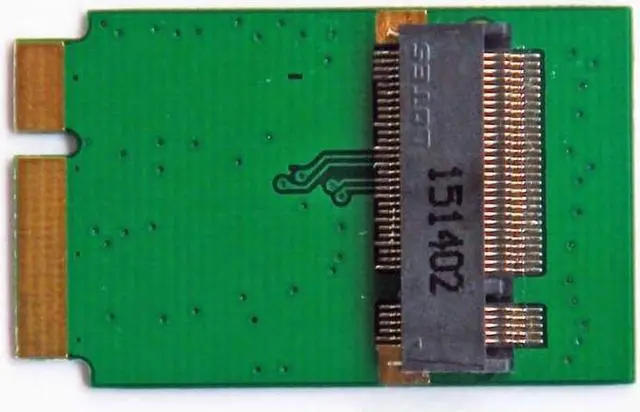

10pcs x M. 2 NGFF SSD to 17+7 Pin Adapter For MacBook Air 2012 A1465 A1466
Please check pictures for more details.
