PCI Express M2 Adapter PCIE M2 SATA Adapter SSD M.2 SATA-Base B key Quad Ports M2 to PCIE Adapter PCI-E X1 Marvell 88se9235 Chip

PCI Express M2 Adapter PCIE M2 SATA Adapter SSD M. 2 SATA-Base B key Quad Ports M2 to PCIE Adapter PCI-E X1 Marvell 88se9235 Chip
About Description:
Description

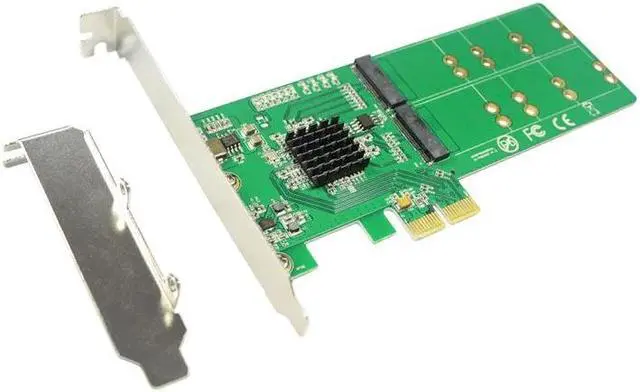

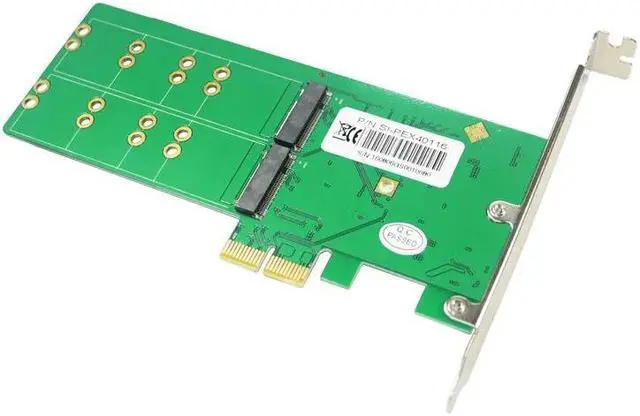

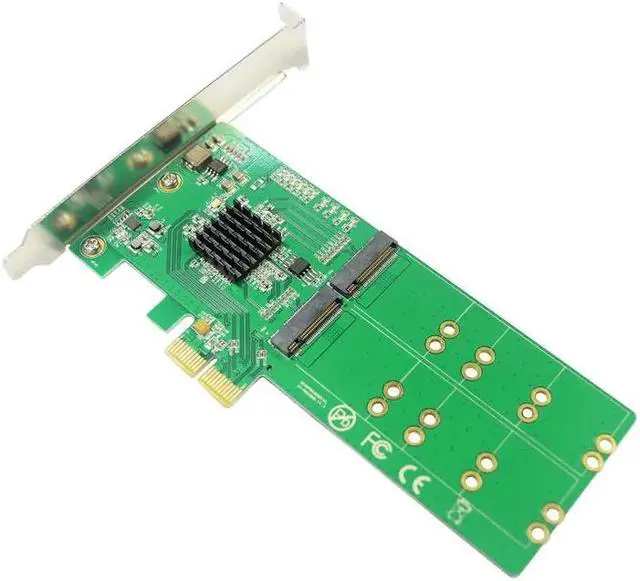

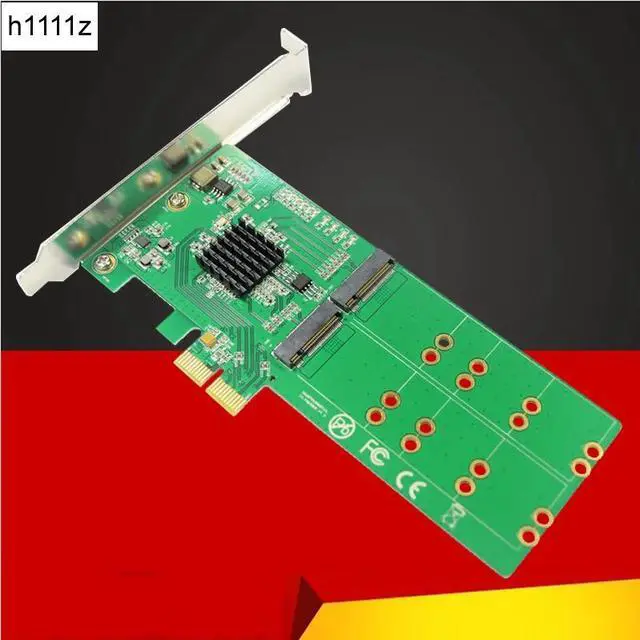

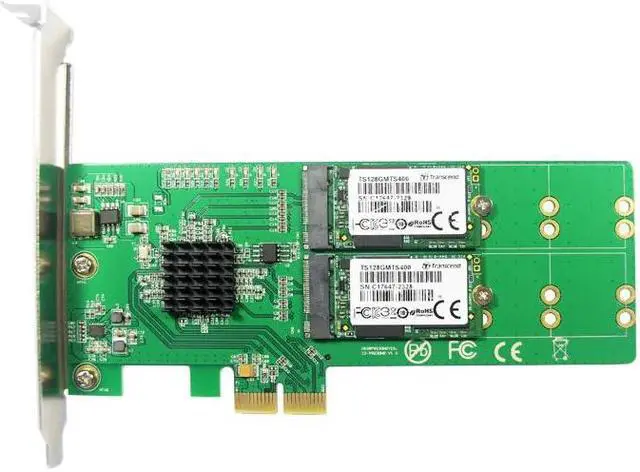

The PCI Express card expands your PC by four M. 2 NGFF slots. You can connect up to four M. 2 NGFF modules in format 2280, 2260, 2242 and 2230.
Feature:
1. Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0 a
2. Fully compliant with Serial ATA specifications 3.0
3. Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
4. Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
5. PCI Express M. 2 specification 1.0
6. Supports Native Command Queue (NCQ)
7. Supports 6Gbps, 3Gbps SATA based M. 2 NGFF 80mm, 60mm, 42mm, 30mm SSD
8. Supports M. 2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
9. Data transfer rate up to 6 Gb/s
10. Marvell 88se9235 Chipset
System Requirement:
Require an empty PCIex2or x4 or x8 or x16 slot in computer
Windows 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux
You'll receive:
1 x PCI Express to 4 Port M. 2 SATA-Base SSD Key-B Adapter Card (Not Included retail packaging and ssd)
8 x NGFF M. 2 SSD Munting Srews
1 x User Manual
1 x Software Driver CD
1 x Low Pofile Bracket
Please check pictures for more details.
