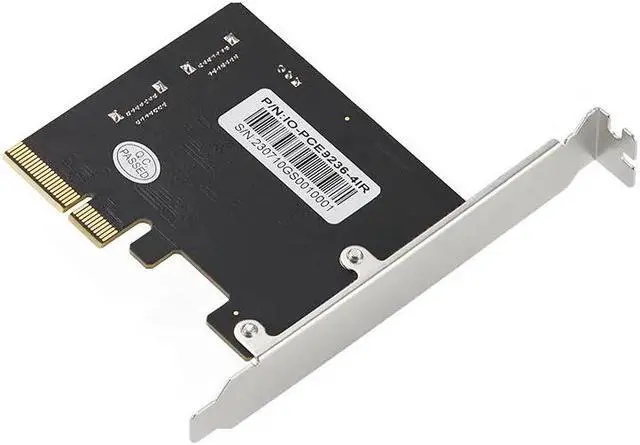

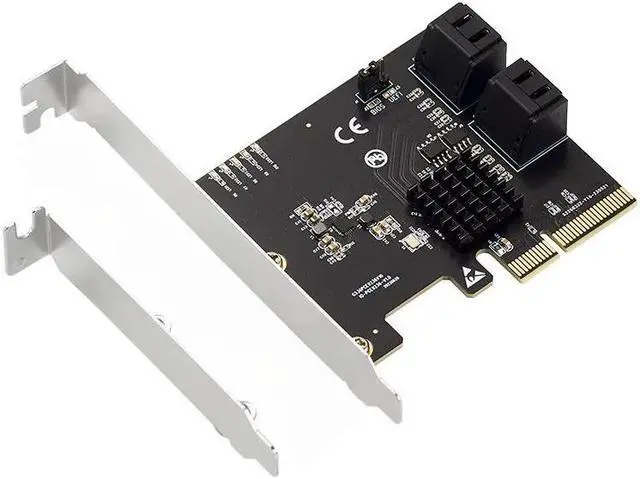

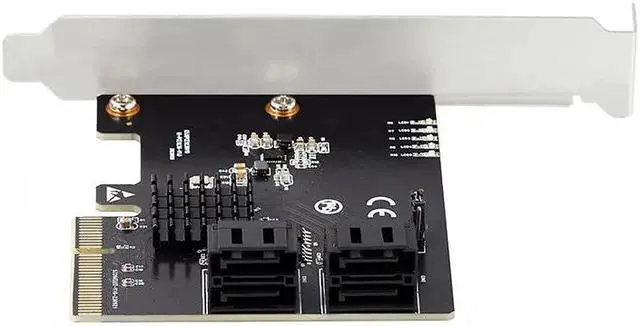

Raid Card PCI Express X4 to 4Port SATA 3.0 6Gbps Controller Expansion Card Support SATA3.0 HDD SSD RAID 0/1/10 Marvell 9236 Chip

Raid Card PCI Express X4 to 4Port SATA 3.0 6Gbps Controller Expansion Card Support SATA 3.0 HDD SSD RAID 0/1/10 Marvell 9236 Chip
About Description:
Feature:
PCIe 2.0 endpoint device
Compliant with PCI-Experss Specification v 2.0
Supports communication speed of 2.5 Gbps and 5 Gbps
Supports BIOS and UEFI programming interface registers for the SATA controller
Supports error reporting. recovery and correction
Supports Message Signaled Interrupt (MSI)
Compliant with Serial ATA Specification 3.1
Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps
PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS based switching or command based switching.
Supports Staggered Spin-up
Support hardware RAID function: RAID 0, RAID 1, RAID10.
Note: Not Supported RAID on PM
System Requirements
Windows/Vista/7/8/10; Server 2008 R2/8, Linux 2.6. x and above
You'll receive:
1 x PCIe 2.0 to 4 Port SATA6G RAID Card
1 x User Manual
2 x SATA Cable
1 x Low Profile Bracket
Please check pictures for more details.
