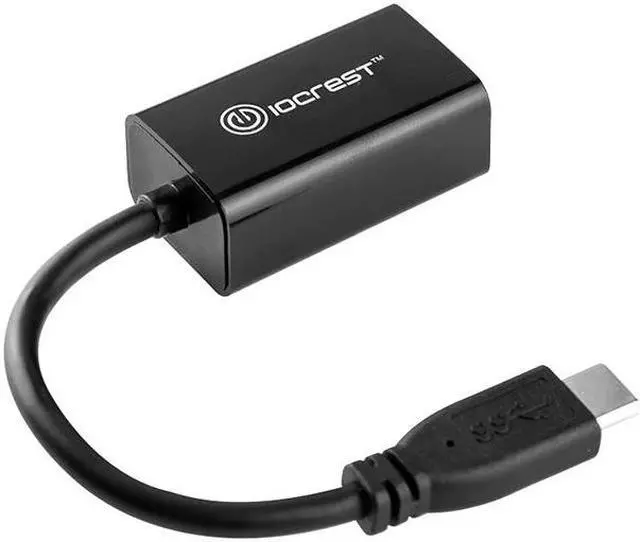

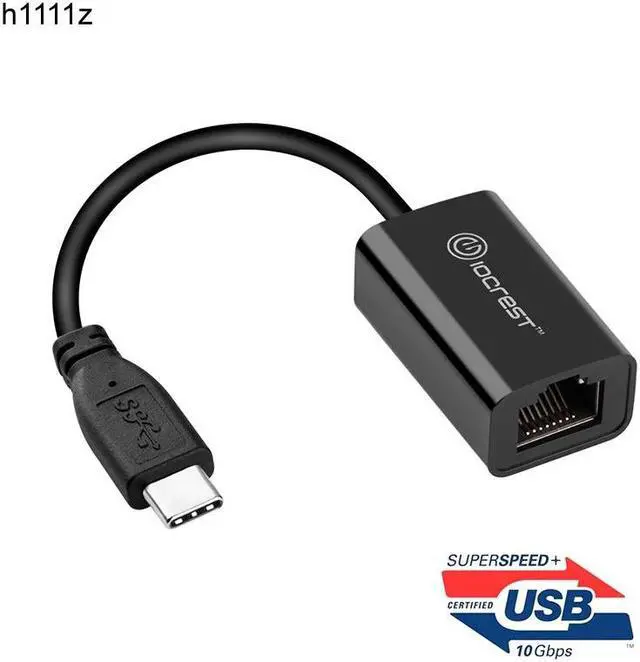

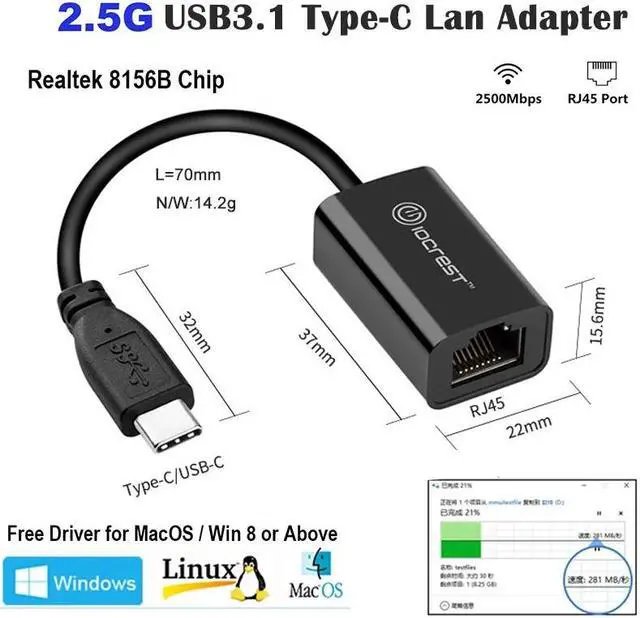

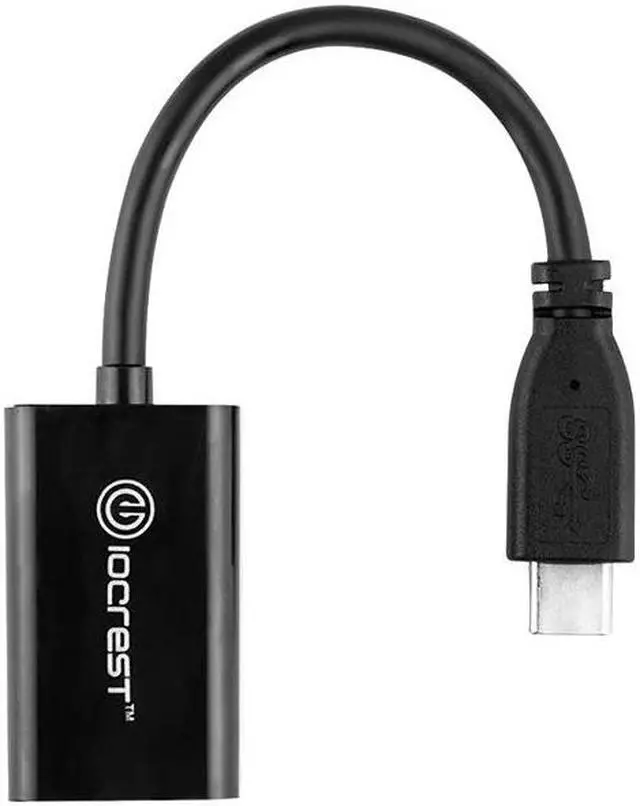

USB 3.1 USB C Ethernet Adapter 2.5G b Network Card 2500Mbps RJ45 to Type C Lan Adapter a RJ45 Dongle Realtek RTL8156B Chip for PC
About Description:
Features
1. Integrated 10/100/1000M/ 2.5G transceiver
2. Supports 2.5G Lite (1G data rate) mode
3. Compliant with USB 3.1 Specification Revision 1.0
4. Supports USB 3.1, 3.0, 2.0, and 1.1
5. Supports CDC-ECM
6. Supports CDC-NCM
7. Supports LPM (Link Power Management)
8. Supports pair swap/polarity/skew correction
9. Crossover Detection & Auto-Correction
10. Supports Wake-On-LAN and RealWoW!
11. Supports power down/link down power saving
12. Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3 az (Energy Efficient Ethernet)
Supports IEEE 802.3 bz ( 2.5GBASE -T)
Supports Full Duplex flow control (IEEE 802.3 x)
Software Offload
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports jumbo frame to 16K bytes
Supports Protocol Offload (ARP & NS)
Microsoft AOAC (Always On Always Connected)
Supports 32-set 128-byte Wake-Up Frame pattern exact matching
Supports link change wake up
Supports Microsoft WPD (Wake Packet Detection)
Intel CPPM (Converged Platform Power Management)
Supports L1 with 3ms BESL (USB 2.0 )
Dynamic LTM messaging (USB 3.0 )
Supports U1/U2/U3 (USB 3.0 )
Supports selective suspend
System Requirements
Windows Server, 2008, 2012, XP, Vista, 7, 8, 10, 11, 32 and 64 bit
Linux kernel up to 5.6
Mac OS 10.8, 10.9 to 10.15
One available USB port

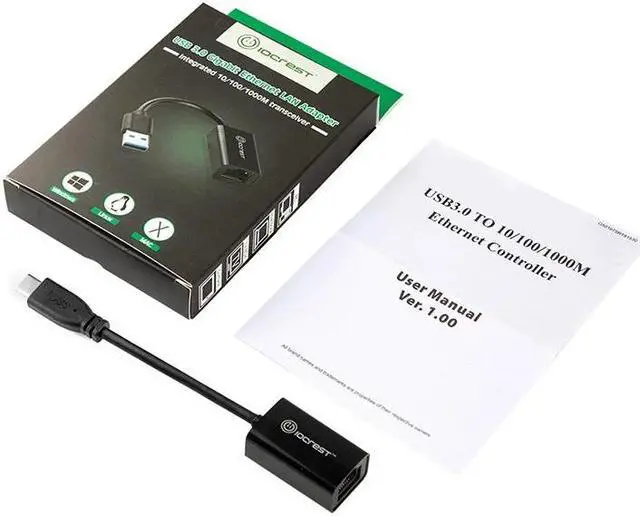

You'll receive:
1 x USB 3.1 TYPE-C Ethernet Adapter (NOT Included Retail Packaging)
1 x Quick Installation Guide
Please check pictures for more details.
