PCIE to M2 Adapter M Key Connector M2 SSD NVME PCIE x1 Full Speed M.2 2280 Aluminum Heatsink SSD Thermal Silicon Wafer Cooling

PCIE to M2 Adapter M Key Connector M2 SSD NVME PCIE x1 Full Speed M. 2 2280 Aluminum Heatsink SSD Thermal Silicon Wafer Cooling
About Description:
1. Allows user to use standard M. 2 M-Key nVME SSD to PCIe x1/x4/x8/x16 slot of the Desktop PC, But speed at 1X speed only.

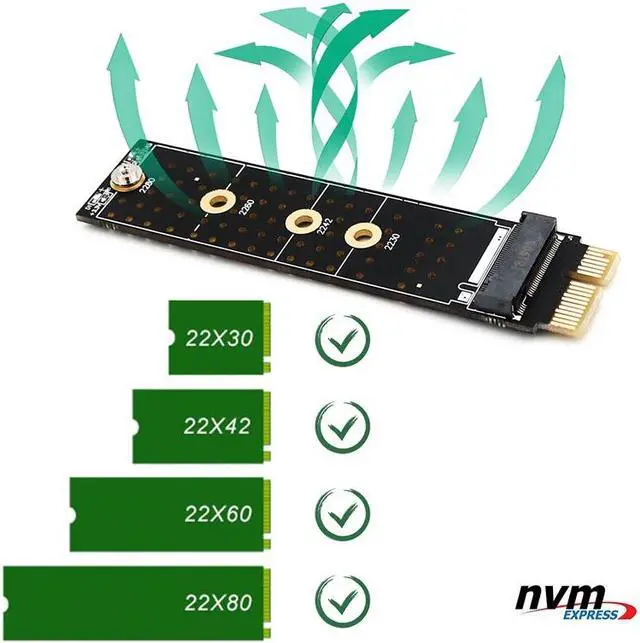

2. Support 2230/2242/2260/2280 type M. 2 Card dimension.
3. Only support M. 2 Socket 3 PCI-e-based M Key SSD, doesn't support M. 2 SATA bus B key SSD.

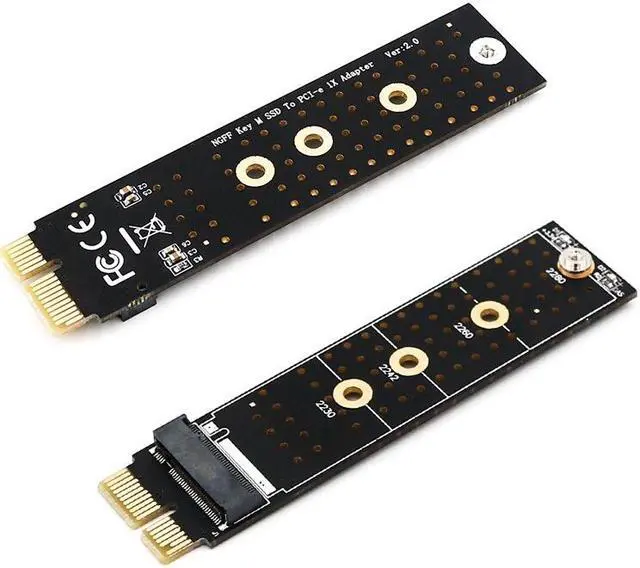

4. M. 2 NVME to PCIE Riser Card.
5. PCIE Interface Support PCI-E 3.0 1X signals.
6. Working for PC Desktop office or Game Player.

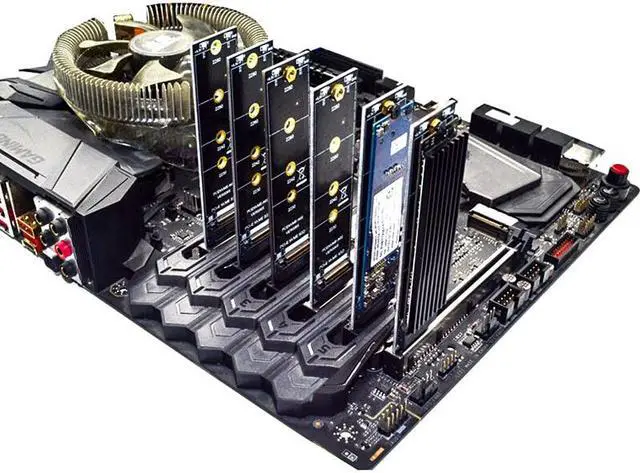

7. Small size, easy install, multiple PCIE interface on the motherboard can test multiple SSD at the same time.
8.
Instructions: Shutdown Computer, install SSD and insert adapter into motherboard slot, Then restart the computer.
9.
Suppport: for samsung PM961, 960EVO, SM961, PM951, sm951, for INTEL 600P, Liteon T10 NVME protocol M. 2 SSD ect.
Note:
This product requires motherboard bios support pcie startup, if not supported, the computer does not recognize SSD. This product does not support SATA protocol SSD, only support nvme protocol SSD. This product is only for testing SSD use, 1X bandwidth speed can not reach M. 2 4X full speed, if you need to install start, Please consider carefully!

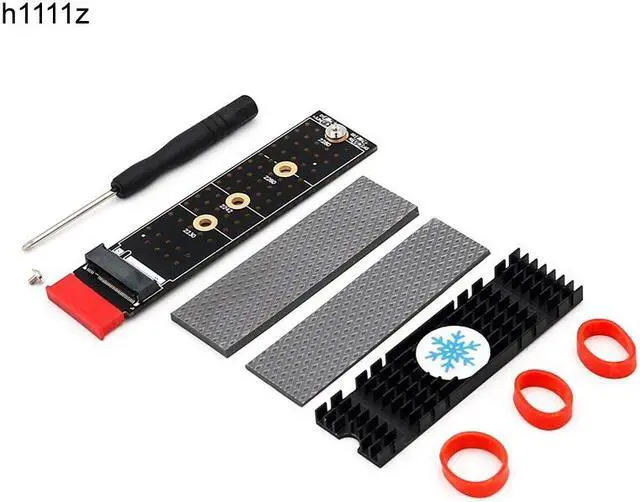

You'll receive:
1 x M. 2 SSD to PCI-E 1X Adapter
1 x Quick Start Guide
1 x M. 2 SSD Heatsink
2 x Heat-Conducting Silica Gel Pad (1 PCS thickness and 1PCS thin)
2 x Wipes (1 PCS wet and 1 PCS dry)
2 x Silica Gel Ring
2 x M2 Screw
1 x Screw Driver
Please check pictures for more details.
