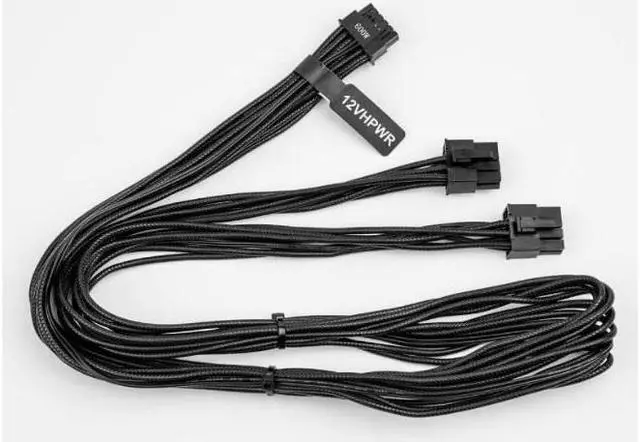

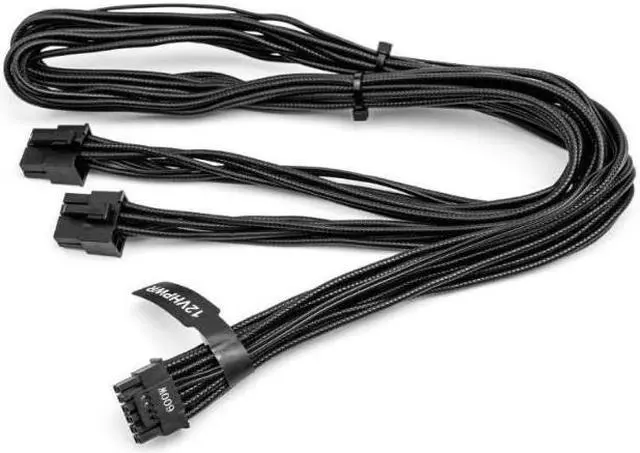

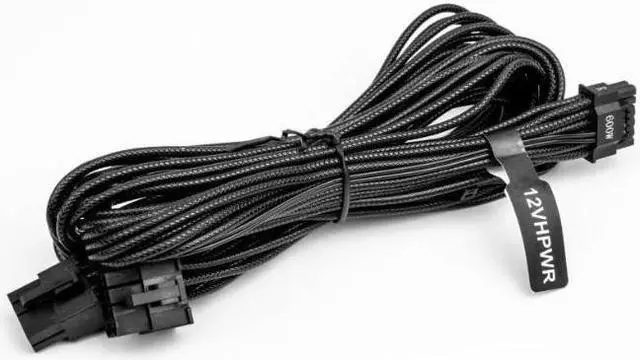

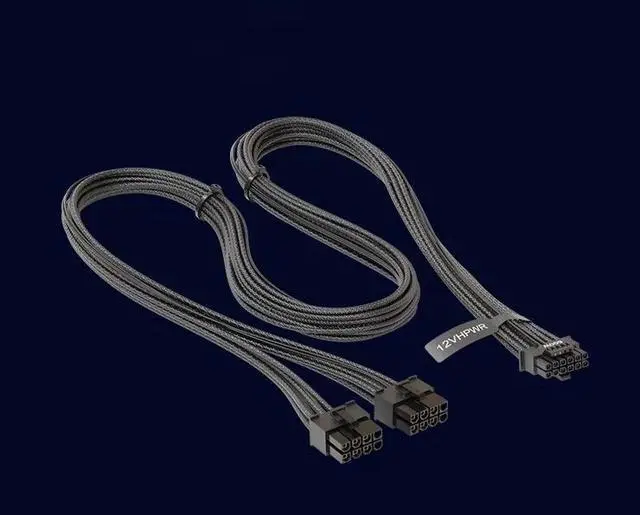

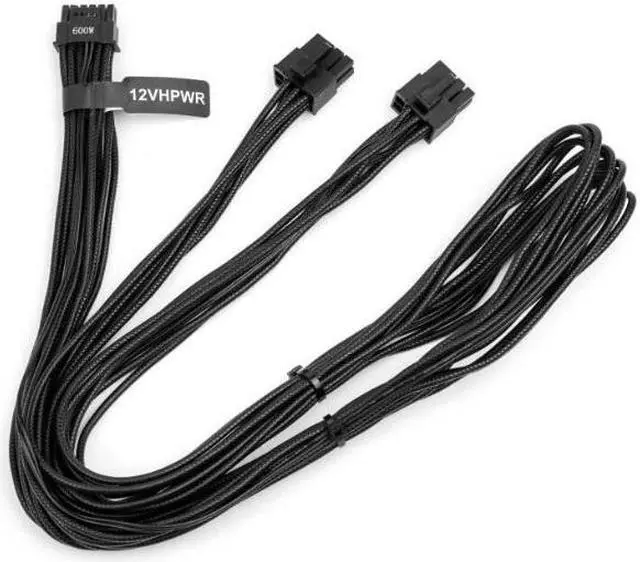

12VHPWR 600 W Cable, 8-Pin + 8-Pin 9.2 A Terminals/16 AWG- High Current Terminal connectors,for SEASONIC PRIME/FOCUS series 850W and higher power supplies ,Supports 40 Series Graphics Cards
- 12VHPWR connector (GPU side) to 2 x 8-pin PCIe connectors (PSU side)
- Maximum 600 W rated power
- 16 AWG (American Wire Gauge) size
- HCS (Hard Clad Silica) terminals with 94V-0 plastic material for 8-pin housing
- Power supply requirement: 850 W and above
- Designed for a lifetime of 30 mating cycles, a normal standard for connectors
- Note: This CABLE is only applicable to SEASONIC PRIME / FOCUS Series 850W and Higher Power supplies, other brands are not suitable. Please adhere to the GPU manufacturer's power requirements to select.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A SINGLE CONNECTOR TO POWER THEM ALL
With the arrival of the new ATX 3.0 / PCIe 5.0 specifications, graphic cards will now be powered by the new 12VHPWR connector. Offering up to 600 W of power, this cable has been crafted with high quality materials, such as high current terminal connectors and 16AWG wires to ensure safe usage. The new 12VHPWR cable is compatible with the Seasonic modular ATX 2. xx PRIME and FOCUS Series power supplies above 850 W output.
RECOMMENDED INSTALLATION OF THE 12VHPWR CABLE
- BOTH 8-pin connectors must be plugged in at all times to your power supply.
- All connectors must be correctly INSERTED, CLICK-LOCKED and TIGHT.
- DO NOT bend or apply force to the cable too close to the connector.
- DO NOT bend the cable in any direction once it is plugged into place.
With the arrival of the new ATX 3.0 / PCIe 5.0 specifications, graphic cards will now be powered by the new 12VHPWR connector. Offering up to 600 W of power, this cable has been crafted with high quality materials, such as high current terminal connectors and 16AWG wires to ensure safe usage. The new 12VHPWR cable is compatible with the Seasonic modular ATX 2. xx PRIME and FOCUS Series power supplies above 850 W output.
RECOMMENDED INSTALLATION OF THE 12VHPWR CABLE
- BOTH 8-pin connectors must be plugged in at all times to your power supply.
- All connectors must be correctly INSERTED, CLICK-LOCKED and TIGHT.
- DO NOT bend or apply force to the cable too close to the connector.
- DO NOT bend the cable in any direction once it is plugged into place.
