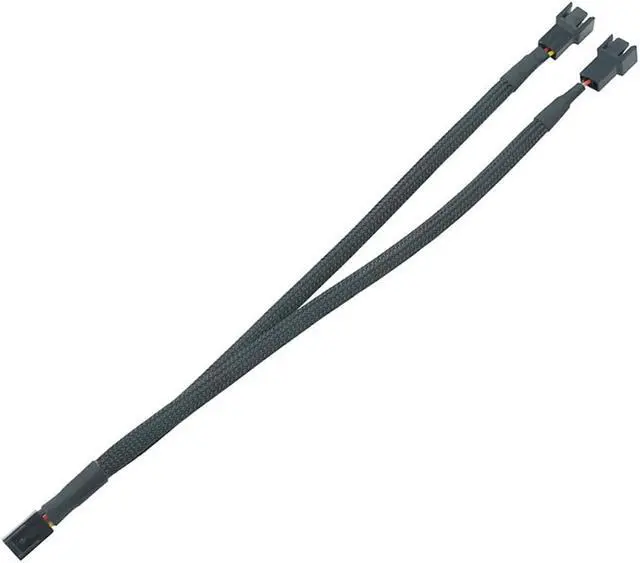

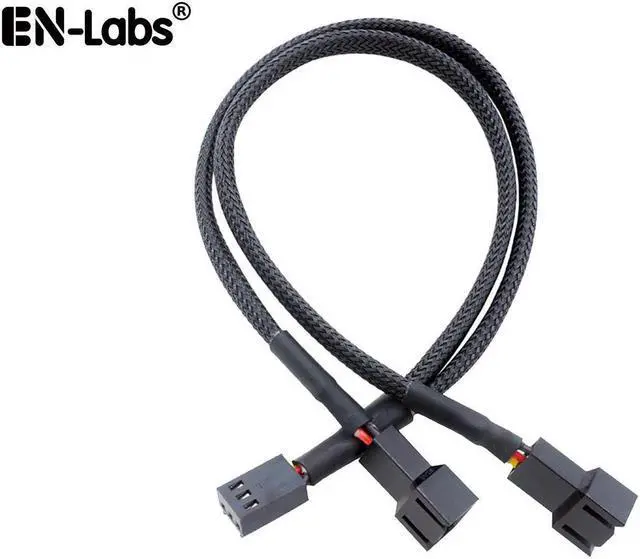

This TX3 Fan Power Splitter Cable lets you connect two 3-pin (TX3) fans to a single power supply connector, allowing you to optimize your cooling capability without having to upgrade the power supply.
Use this 1 x 3-pin motherboard header to power 2 x cooling fans with 3-pin connector.

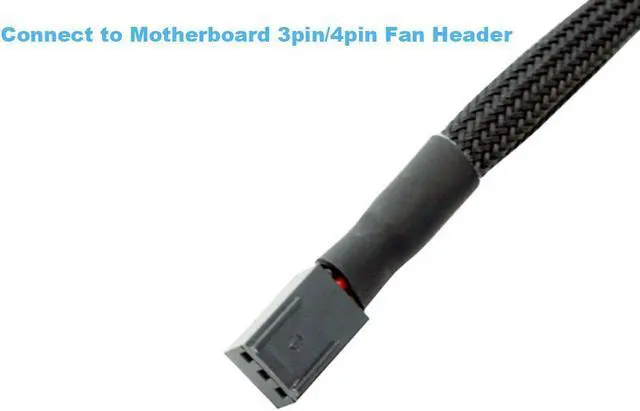

Female end 3-pin header plugs into motherboard 3pin/4pin header ( or fan power header from power supply), 2 x 3-pin male headers to cooler fans.
Dual Male headers for 3Pin Fans only, incompatible with PMW 4pin Fans

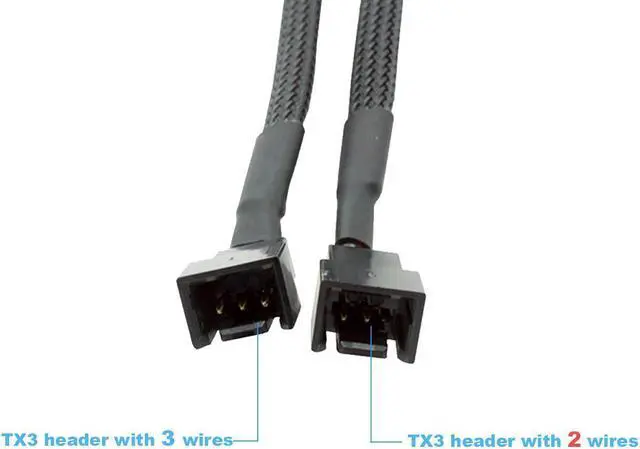

One of 3pin male header is equipped 3 power wires, the other 3pin male header is just included 2 wires, miss the pin of fan speed feedback.
Providing a flexible way to position computer case fans as needed.
The TX3 Fan Power Splitter cable offers a connection length of 10 inches, eliminating the need to strain the connection from the computer power supply in order to reach the fan power connection.
Type: TX3 3Pin case fan power splitter cable,
Length: 10 inches,
Conductor: 24AWG Copper
Connector A: 1 x 3pin fan TX3 female,
Connector B: 2 x 3pin Fan TX3 male,
Power supports: 12V/5V fans
Model
Brand Aile Tech
Model 3PINSPL26
Type Power Splitter
Type Cable Splitters
Color Black
Details
Length 6" - 10"
Cable Length 10 in.
Connectors
Connector A TX3 3Pin Female
Connector B TX3 3Pin Male
Connector Number 3
Terminal Gender Female to Male
Details
Specifications
Type: TX3 3Pin case fan power splitter cable, Length: 6 inches, Conductor: 26AWG
Copper Connector A: 1 x 3pin fan TX3 female, Connector
B: 2 x 3pin Fan TX3 male, Power
supports: 12V/5V fans
Features
Features This TX3 Fan Power Splitter Cable lets you connect two 3-pin (TX3) fans to a single power supply connector, allowing you to optimize your cooling capability without having to upgrade the power supply.
Use this 1 x 3-pin motherboard header to power 2 x cooling fans with 3-pin connector.
Female end 3-pin header plugs into motherboard 3pin/4pin header ( or fan power header from power supply), 2 x 3-pin male headers to cooler fans.
Dual Male headers for 3Pin Fans only, incompatible with PMW 4pin Fans
One of 3pin male header is equipped 3 power wires, the other 3pin male header is just included 2 wires, miss the pin of fan speed feedback.
Providing a flexible way to position computer case fans as needed.
The TX3 Fan Power Splitter cable offers a connection length of 10 inches, eliminating the need to strain the connection from the computer power supply in order to reach the fan power connection.
