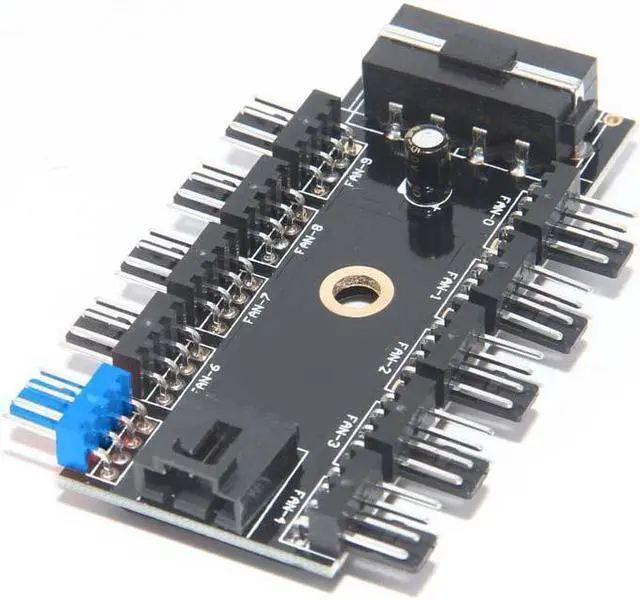

10 Ports PWM 4pin CPU Cooler / Case / Chasis Cooling Fan Power Cable Hub Splitter Adapter w/Self-sticker,Power by IDE Molex 4pin

Features
It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to ten fans.

Expand 4-pin fan interfaces, solving the problem of lack of motherboard fan interfaces.
Designed for 12V 4-Pin 3-Pin fans, support simultaneous starting at most 10 channel fans.
In the hub interfaces, the RED CPU interface is the CPU fan dedicated interface (with speed detection function).

Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal.

For both 4-Pin and 3-Pin fans. Please note 4Pin fan speed can be adjusted by temperature control. 3Pin fan can also be used, but 3Pin has no PWM function, it is at fixed speed after inserting.

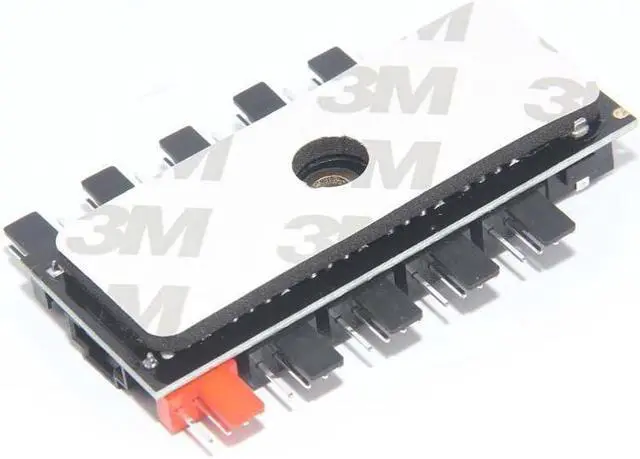

There is EVA double-sided adhesive at the back of the hub, which can be easily affixed to a flat place. Also a fixing screw hole in the middle of the PCB to facilitate fixing to a part of the chassis.

RED is expected to be a pass through for the CPU fan. So, the hub has a power source fed from the computer power supply, then the speed is regulated by the speed for the "source" fan. You can connect to the CPU fan lead on the system board or the chassis fan lead. The ten fans will spin at the same speed, that designated by the system for that fan. If the chassis fan is configured in BIOS to run at 50%, you will have 10 fans at 50%.

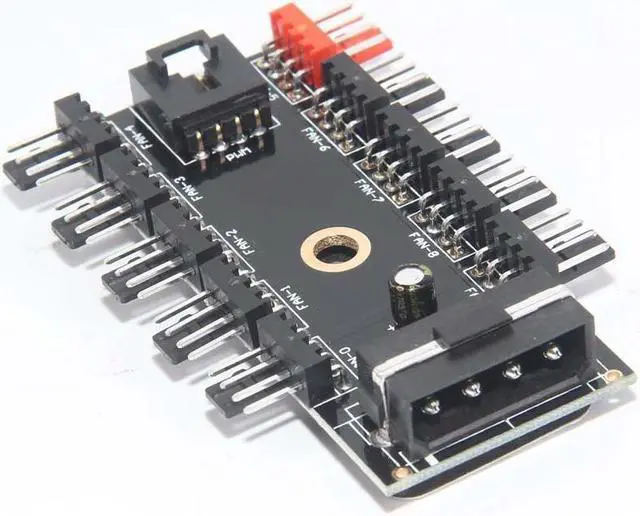

Fan hub is powered by molex 4pin (12V only) from your PSU
1.64FT PWM cable include, must connect to your motherboard CPU_Fan header for PWM controlling

Compatible with 3pin & 4pin Fans
PWM controlling works for 4pin fans only
3pin fans run in full speed

The red header is expected to be a pass through for the CPU fan. Must be a priority number one connecting.
Please make sure the red header always connect fan preferentially
