Mini PCI-E PCI Express Wireless to USB Riser SIM Card Slot WWAN LTE Module Adapter Converter Card 9Pin USB Cable PC Components

Mini PCI-E PCI Express Wireless to USB Riser SIM Card Slot WWAN LTE Module Adapter Converter Card 9Pin USB Cable PC Components

About Description:

Description

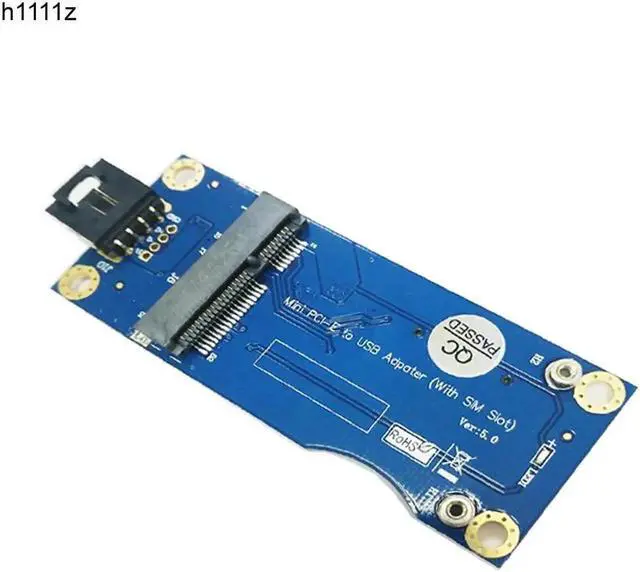

The adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini-Card to USB port.

You can only insert your USB Bus type minicard such as GSM, HSPA( 3.5G ), GPS, LTE cards to this adapter then plug to USB port, doesn't support PCI-E bus type minicard such as Wifi module

As standard SIM card is provided, you can connect to network carrier with SIM card.

Features:

1. Doesn't support PCI-E bus type minicard such as Wifi module, only supports USB bus interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC

2. Easy installation & no driver required, but make sure you have installed the software drivers for your WWAN card.

3. Support SIM 6pin/8pin card connector.

4. No additional power required

5. Supports Plug & Play and Hot-Swapping

6. Supports any OS, like Windows, WinCE, Linux & iMAC etc

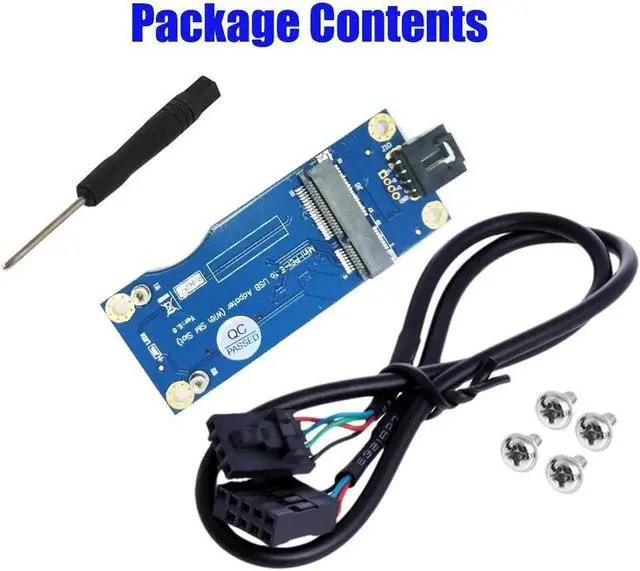

You'll receive:

1 x Mini PCI-E to SIM Adapter

1 x Screw Driver

4 x M2 Screw

1 x USB Cable

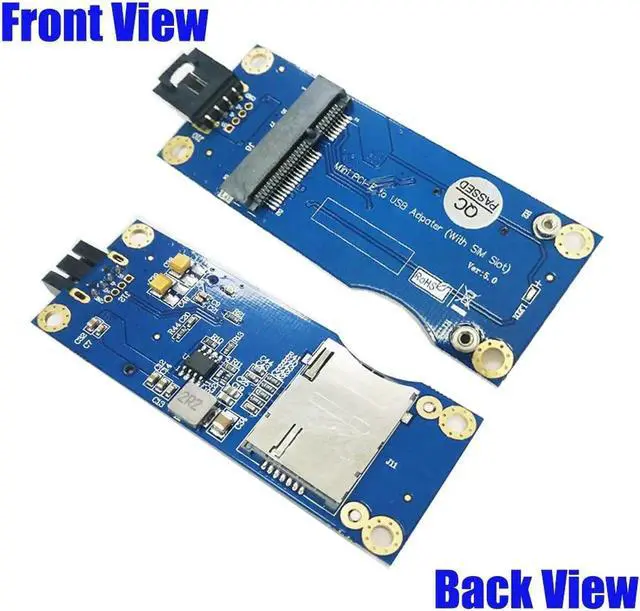

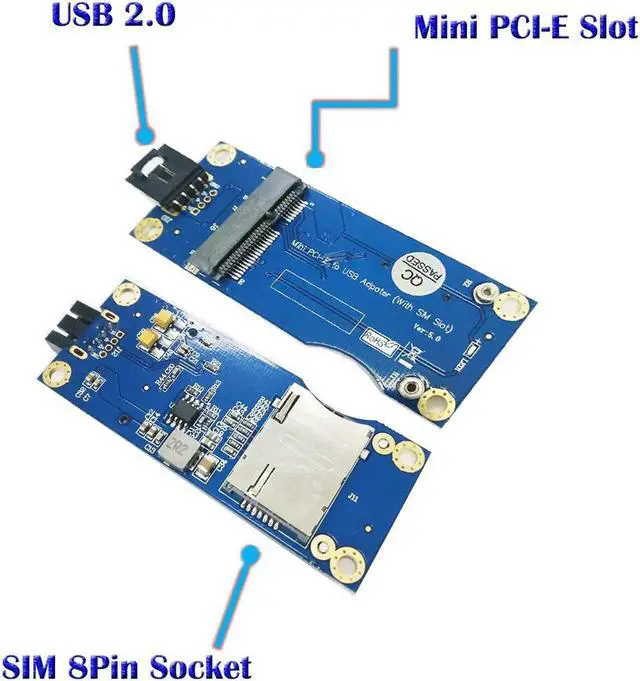

Please check pictures for more details.
