Add On Card NGFF M.2 Key AE Male To Key M Female Board Adapter with Cable M2 KEY AE to NVME for 2230 2242 2260 2280 M.2 NVME SSD

Add On Card NGFF M. 2 Key AE Male To Key M Female Board Adapter with Cable M2 KEY AE to NVME for 2230 2242 2260 2280 M. 2 NVME SSD

About Description:

Product features:

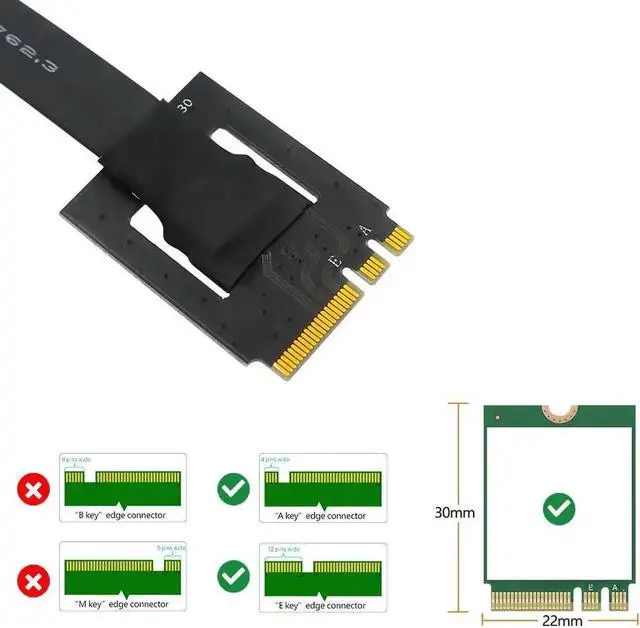

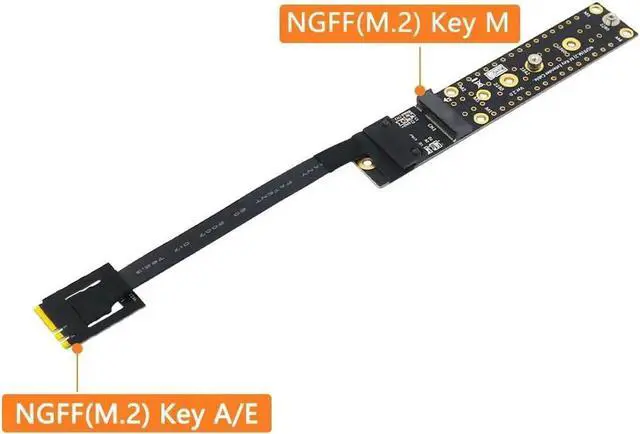

1. This adapter cable allows you connect any M. 2 Key M SSD to M. 2 KEY A or KEY E socket. Its a debug, test and any other useful tool to extend M. 2 Key M slot from M. 2 Key A or Key E slot.

2. Support M. 2 Key M system board layout 2230, 2242, 2260, 2280 dimension.

3. No drivers needed for this Adapter.

4. Supports Win XP, Vista 32/64, Win 7, Win 8, Win10, Win11 or Linux and so on.

5. Supports PCI-E based M. 2 A/E slot.

6.

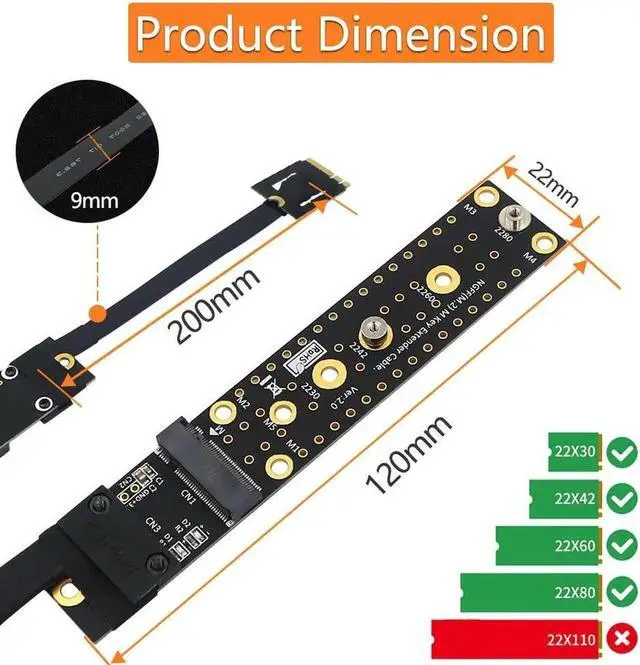

Cable length around: 20cm, Total

length around: 32cm. Cables thickness is around 1.0 mm.

7. Its also a powerful tool for engineers, or use for M. 2 base on PCI-E tester, extender and so on.

8. Compliant with PCI Express Specification, M. 2 Specification Revision.

9.

System requirement: M. 2 Key A or E slot on the motherboard. Sometime this slot support PCI-E WLAN (eg 9260 AX200), however, there exist exception, If your board only support 9560 or AX201, It wont support this adapter cable. Because the system interface type of 9560 is CNVio2, not Wi-Fi (PCIe).

10. The M. 2 Key M SSD will work at PCI-E 1X speed.

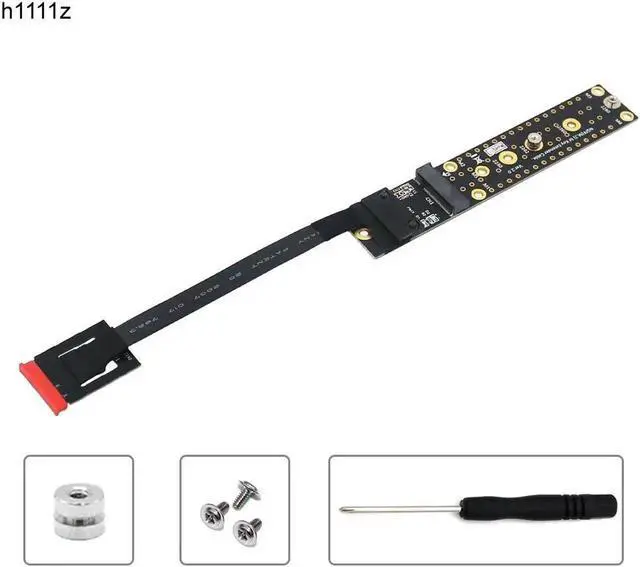

You'll receive:

1 x NGFF M. 2 Key A/E Male To Key M Female Adapter Cable

3 x M2 Screw

1 x Stud

1 x Screw Driver

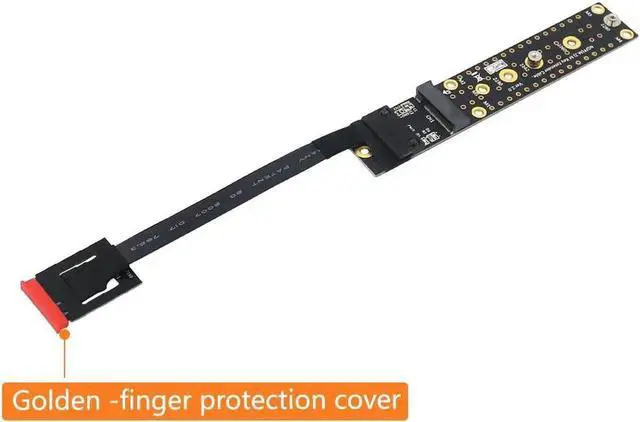

1 x Dust Cap

Please check pictures for more details.
