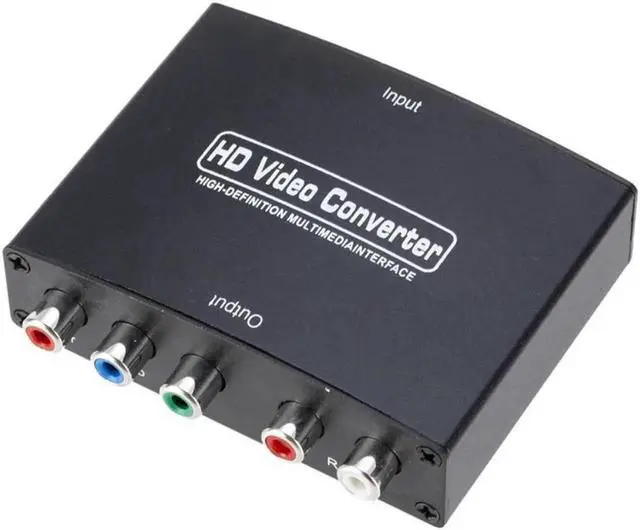

1080P HD Video Converter HDMI-compatible To YPBPR Component R/L Audio Adapter for TV PC Set-Top Box Computer Accessories

Certification:NONE

Origin:CN(Origin)

Resolution:1080P

Type:Adapter/Adapter Cable

HDMI to YPBPR HD video converter

To

working principle:

HDMI to YPbPr HD video converter converts HDMI signals to YPbPr signals and outputs left and right channels at the same time.

product manual:

To

Basic parameters:

Power: 5V1A

Input: HDMI signal, bandwidth 165M, HDMI1.3 compatible

Output: YPBPY signal output with the same resolution as the input HDMI signal, stereo sound signal output

YPBPR signal impedance matching: 75

To

Support HDMI input format is as follows:

480P (60Hz), 576P (50Hz), 720P (50 / 60Hz), 1080i (50 / 60Hz)

Support YPbPr output format is as follows:

480P (60Hz), 576P (50Hz), 720P (50 / 60Hz), 1080i (50 / 60Hz)

product description:

To

This HDMI to YPbPr (color difference) + R / L audio converter converts digital signals to HDMI for YPbPr (Component) analog video and R / L audio

To

signal. It lets users enjoy high-definition images, sound when watching movies or playing traditional VGA monitors or projector games.

To

It provides digital entertainment center, HDTV retail and display space, HDTV, set-top boxes, DVD and projector factories, noise space and security

To

Full questions, data center controls, information distribution, boardroom presentations, solutions for schools and enterprise training environments.

To

Product Features:

To

The series of HDMI converters have many features that make them an excellent way to execute. Among these features, you will find:

1, easy to use: install in a few seconds, no need to set.

2, it can convert the complete HDMI into YPbPr (color difference) video and R / L audio output.

3, support HDCP1.2

4, each channel supports 165MHz /1.65Gbps (6.75Gbps all channels) bandwidth HDMI input.

5, supporting real analog video output up to UXGA and 1080p, 10-bit DAC

6, LED signal and power mode.

7, power supply (5V 1A)

Product acessories:

To

HDMI converter to color converter --------------- 1 Taiwan

To

DC 5V power adapter-1

To

User manual ------------------------ 1 this

To

Product Specifications:

Signal Inputs/Output

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Input connection

HDMI A female(19pin)

Output connection

VGA, R/L Audio

HDMI video input format

480i/576i/480p/576p/720p/1080i/1080P

YPbPr video output format

480i/576i/480p/576p/720p/1080i/1080P

Audio output format

2 channel LPCM

Operating Frequency

VerticalFrequencyRange

50/60Hz

Input video Amplifier Bandwidth

1.65Gbps/165MHz

Mechanical

Size(LxWxH)

88x68x25.5mm

Weight(Net)

0.68Kg

Warranty

Limited Warranty

1 Year Parts and Labor

Environmentalc

Operating Temperature

0 to +70

Operating Humidity

10% to 85% RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 95% RH (no condensation)

Power Requirement

External Power Supply

DC 5V 1A

Power consumption(Max)

5W

Regulatory Approvals

Converter Unit

CE, FCC, ROHS

Power Supply

CE, FCC, PSE, TK, UL

Accessories Adapter

AC Power Adapter

US standard, UK standard and so on

User Manual

English Version
