M.2 NVME to USB Adapter M-Key M.2 NGFF NVME to USB 3.1 Card Reader 10Gbps M.2 USB Adapter for Windows XP 7 8 10, MAC OS

M. 2 NVME to USB Adapter M-Key M. 2 NGFF NVME to USB 3.1 Card Reader 10Gbps M. 2 USB Adapter for Windows XP 7 8 10, MAC OS

Specifications

:

1.

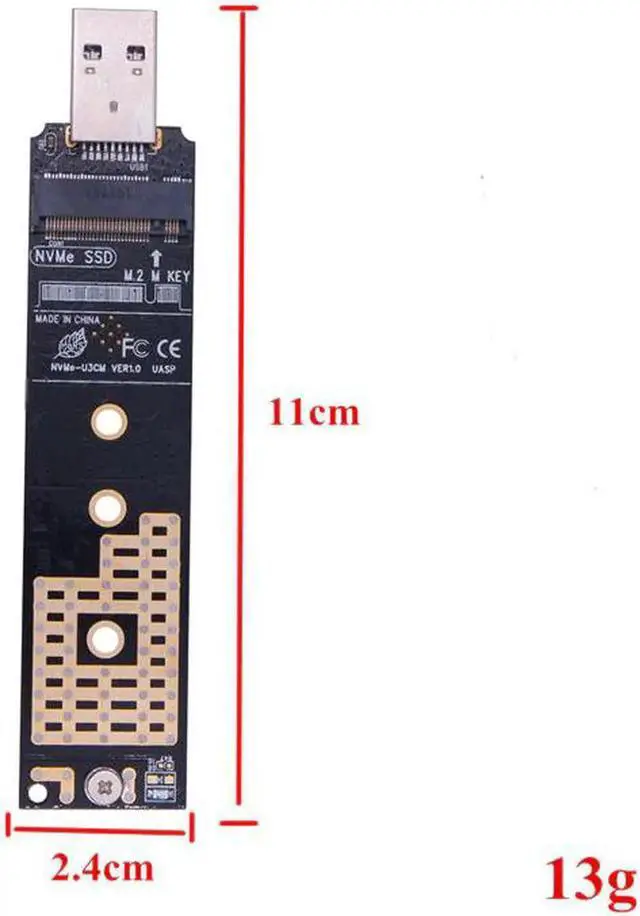

Dimension: 11* 2.3 * 0.4 cm/ 4.3 * 0.9 * 0.2 inch

2.

Material: Aluminum Alloy

3.

Input Interface: M. 2 NVME M-Key

4.

Output Interface: USB 3.1

5. Support the Following M. 2 (NVME)

SSD:

Type 2242: 42 mm (L) x 22mm (W)

Type 2260: 60 mm (L) x 22mm (W)

Type 2280: 80 mm (L) x 22mm (W)

6.

DO Not Support: M-Key PCIe AHCI SSD, B+M Key SATA SSD

Features:

1. M. 2 NVME SSD to USB 3.1 adapter, high performance 10Gbps USB 3.1 Gen 2 bridge chip, retrieve or backup your data via USB port without any cable. Compatible with USB 2.0, USB 3.0. Use as a portable SSD.

2. M. 2 SSD to type A card ONLY support for M-Key M. 2 SSD (PCIe NVME-based), DO NOT support B-Key or B+M-Key SSD(SATA-based) and M-Key M. 2 SSD(PCIe AHCI-based).

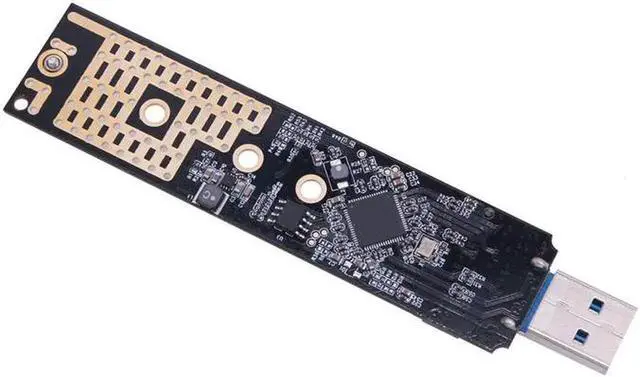

3. Upgraded RTL9210 chip, compared with chip JMS583, which master temperature is lower and takes less electricity; Same SSD & same device, RTL9210 speed is faster than JMS583 about 200MB/s.

4. This M-Key M. 2 NGFF NVME to USB card without enclosure cover, it can dissipate heat quickly and realize SSD's full potential high performance.

5. The NVMe M-Key USB adapter supports for Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/ 970 EVO / 970 PRO and other M. 2 SSD with PCIe (M-KEY) interface, suitable for size 2230 / 2242 / 2260 / 2280.

Package Include:

1 x NVME to USB Adapter

1 x Heat dissipating patch
