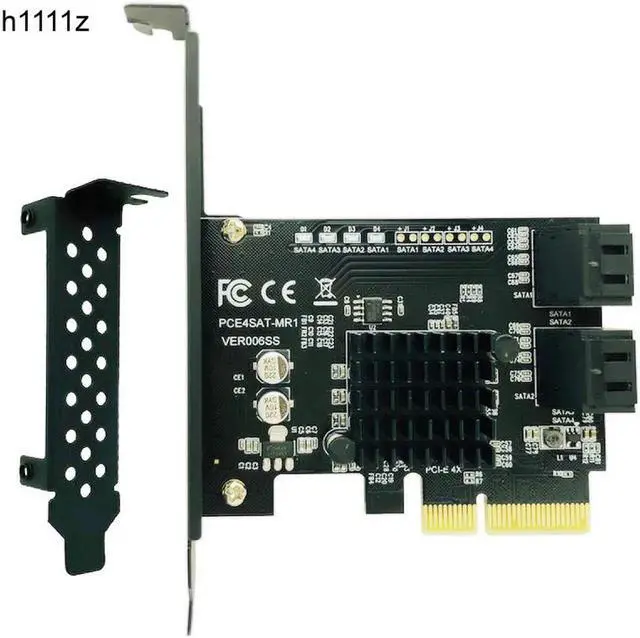

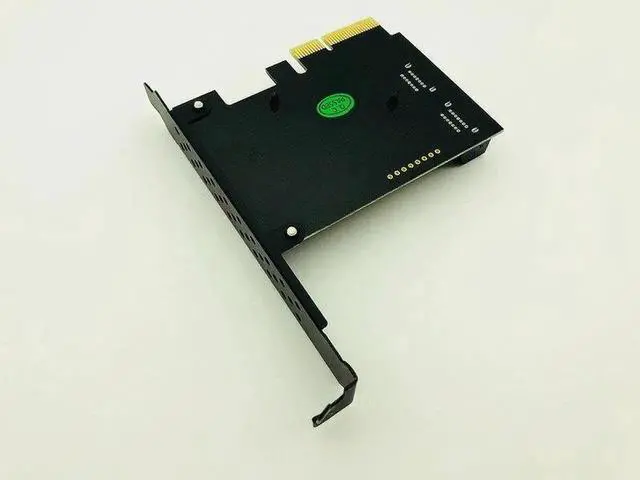

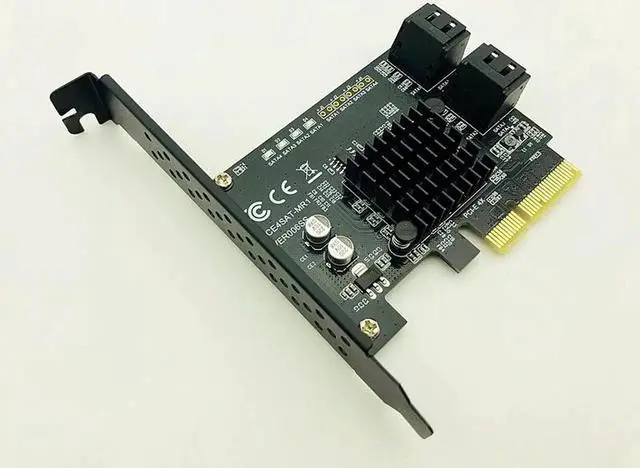

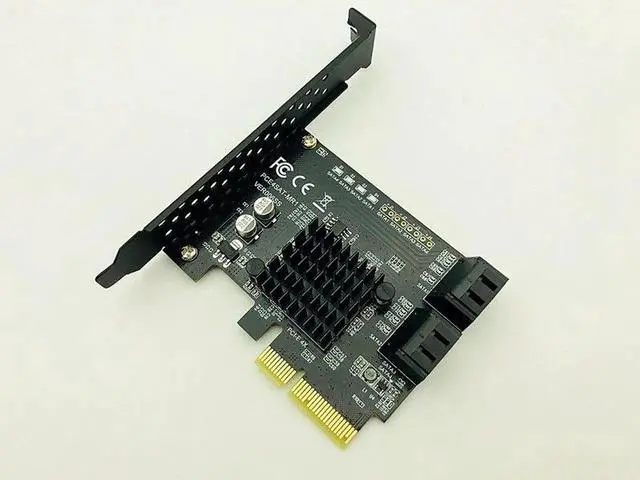

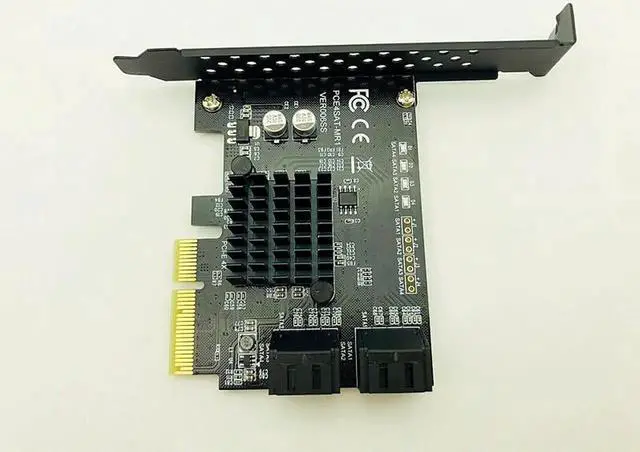

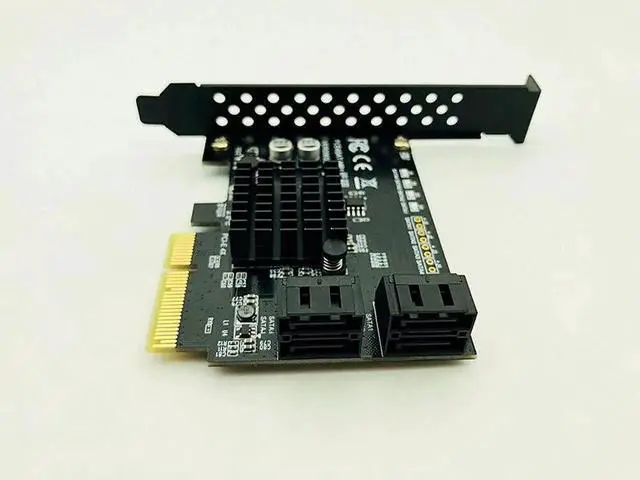

Marvell 88SE9230 SATA PCI Express 4 Ports Expansion Card SATA Controller PCI-E Raid Card PCI E to SATA3.0 Adapter Converter Card

Marvell 88SE9230 SATA PCI Express 4 Ports Expansion Card SATA Controller PCI-E Raid Card PCI E to SATA 3.0 Adapter Converter Card

About Description:

Specification:

PCIE to SATA RAID Card, 4 Port SATA 3.0 6Gbps Support RAID 0, RAID 1, RAID 10

SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID

Ports: 4 Internal SATA 6Gb/s Ports

Compliant with PCI-Express Specification v 2.0 and Backward Compatible with PCI-Express v 1.0

Compliant with Serial ATA Specification 3.0

PCI-Express x4 Interface (for Selected Models) is Compatible with PCI-Express x4, x8 and x16 slots

Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

Hot Plug and Hot Swap

Supports Native Command Queue (NCQ)

Supports Port Multiplier FIS Based Switching or Command Based Switching

Compatible with SATA 6G, 3G and 1.5G Hard Drives

RAID Function:

RAID 0-Striping (Stripe Size: 32K, 64K)

RAID 1-Disk Mirroring

RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)

HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)

Note: Not Supported RAID on PM

Software Requirement:

Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6. x and Above (AHCI devices driver is a built-in feature)

You'll receive:

1 x PCI-E SATA Raid Card

1 x Low Profile Bracket

1 x Driver CD

Please check pictures for more details.
