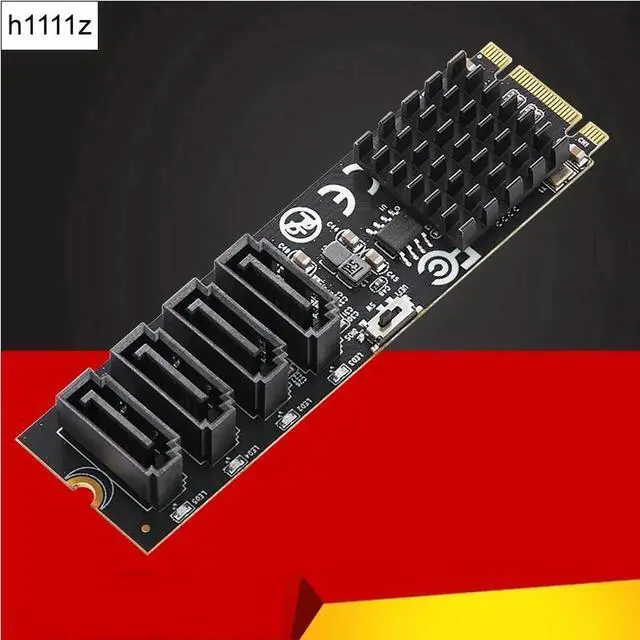

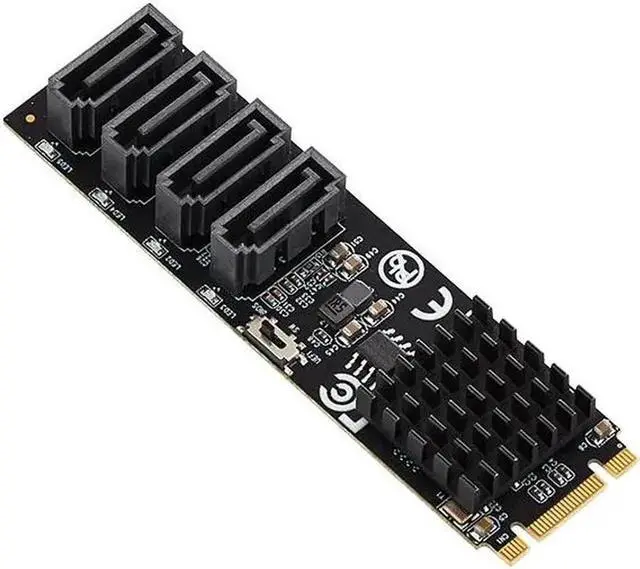

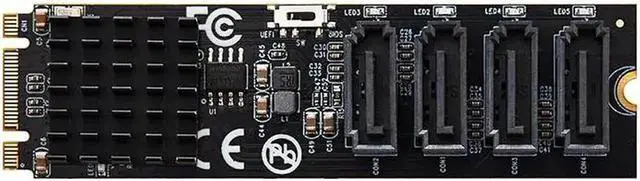

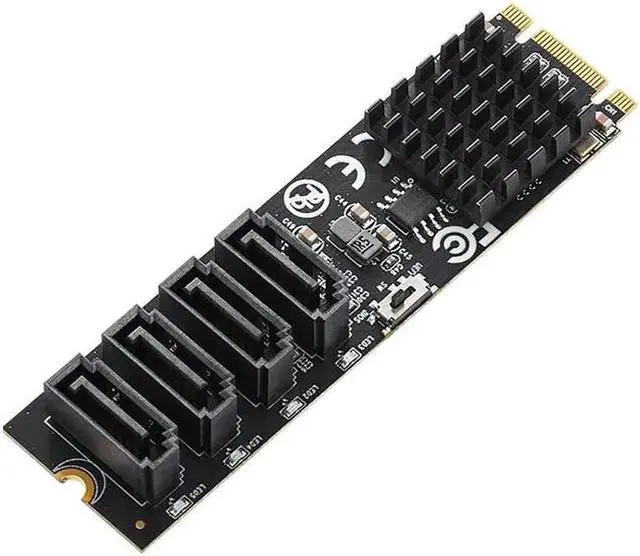

RAID Card M.2 to 4Port SATA3.0 6Gbps SSD HDD Adapter RAID Controller M+B Key 2280mm Size PCIe2.0 Marvell 9236 Chip for UEFI BIOS

RAID Card M. 2 to 4Port SATA 3.0 6Gbps SSD HDD Adapter RAID Controller M+B Key 2280mm Size PCIe 2.0 Marvell 9236 Chip for UEFI BIOS

About Description:

Features

2-Lane M. 2 PCI-Express 3.0 interface (B & M Key).

Complies with PCI Express Base Specification Revision 3.1 a.

Supports PCIe link layer power saving mode.

Supports command-based and FIS-based for Port Multiplier.

Complies with SATA Specification Revision 3.2.

Supports 4 SATA port.

PCIe 2.0 endpoint device

Compliant with PCI-Experss Specification v 2.0

Supports communication speed of 2.5 Gbps and 5 Gbps

Supports BIOS and UEFI programming interface registers for the SATA controller

Supports error reporting. recovery and correction

Supports Message Signaled Interrupt (MSI)

Compliant with Serial ATA Specification 3.1

Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps

Supports Native Command Queue (NCQ)

Supports Port Multiplier FIS based switching or command based switching.

Supports Staggered Spin-up

Support hardware RAID function: RAID 0, RAID 1, RAID10.

Note: Not Supported RAID on PM

System Requirements

Windows OS

Linux 2.6. x and above

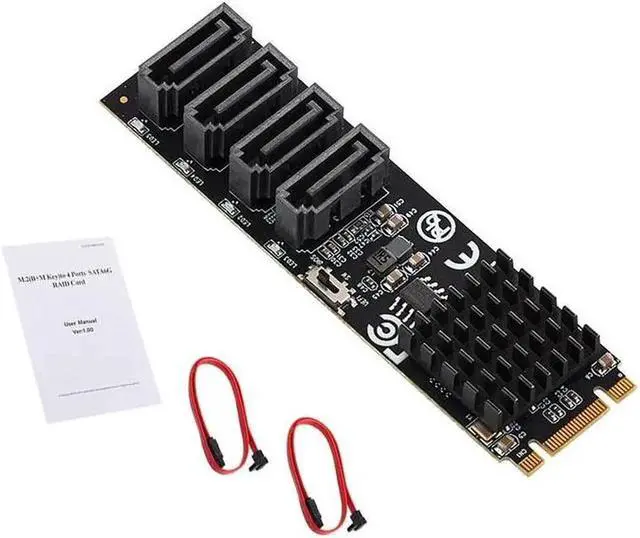

You'll receive:

1 x M. 2 B+M Key to 4 Ports SATA 3.0 6G RAID Card

1 x User Manual

2 x SATA Cable

Please check pictures for more details.
