$44.70
Ships from China.
Meet Your Seller

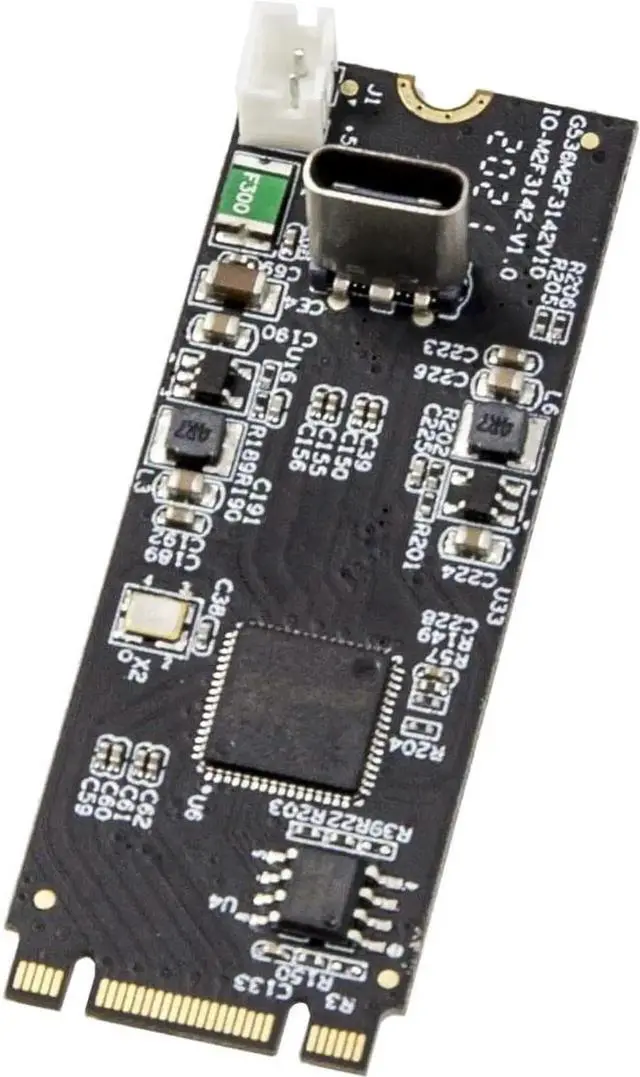

Aomoproing USB 3.1 Gen 2 10 Gbps 1 Port Type-C M.2 22x60 B+M Key Expansion Card ASMedia ASM3124 SY-ADA20232

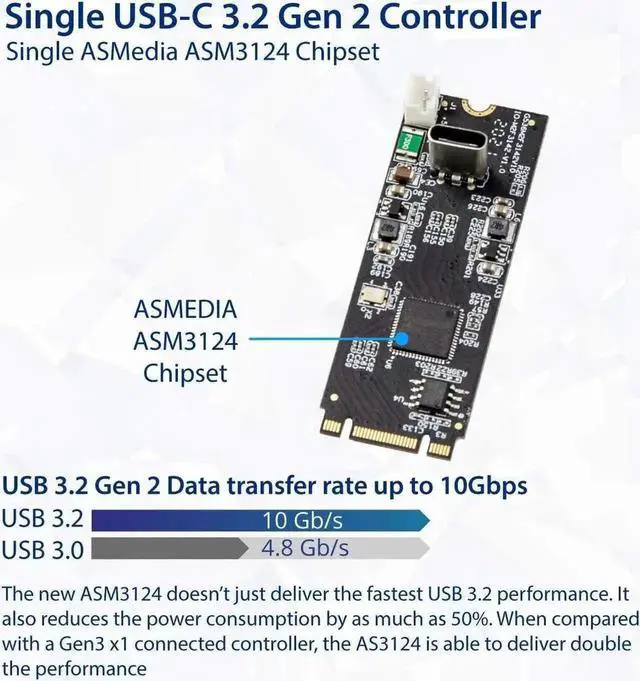

- Single USB Type-C 3.1 connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0. Powered by ASM3142 controller with PCIe Gen3 x2 lanes performance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Single USB Type-C 3.1 connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0. Powered by ASM3142 controller with PCIe Gen3 x2 lanes performance.
Support up to 2A/5V on USB-C port. Requires having the power cable connected to a Molex power connector.

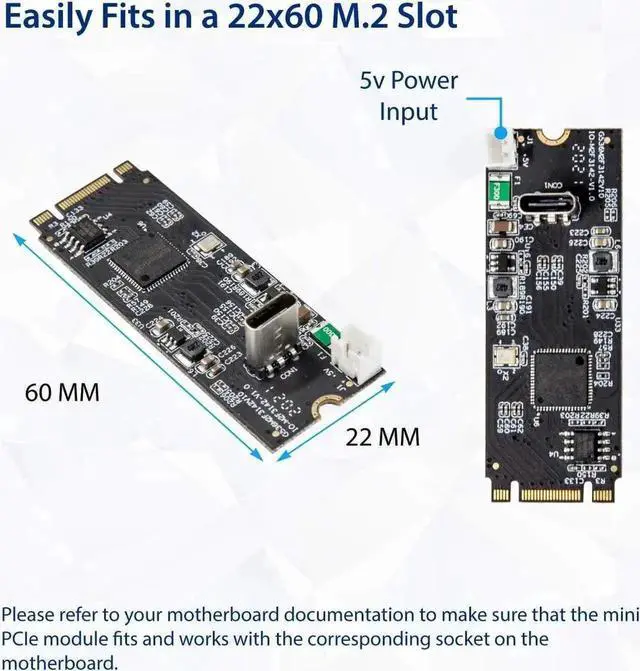

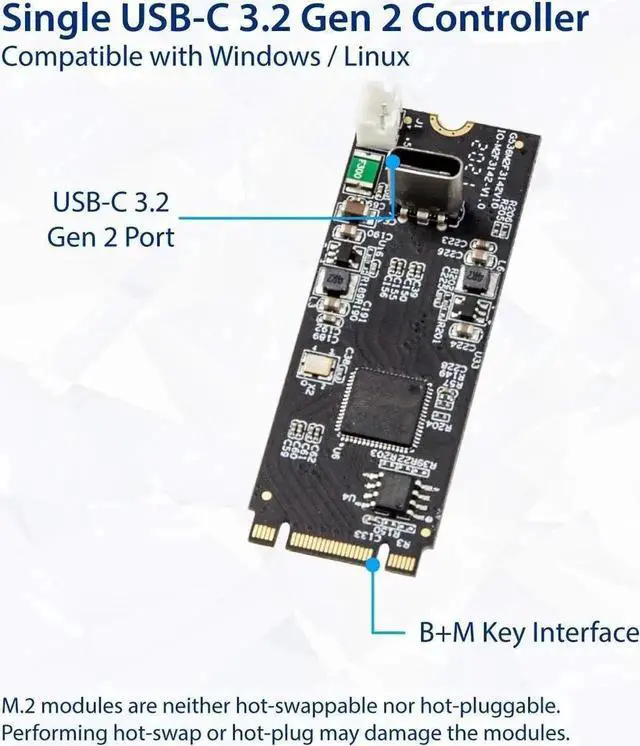

Single USB-C 3.1 Gen 2 port to a M.2 22x60 B+M Key Connection M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a.
No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
