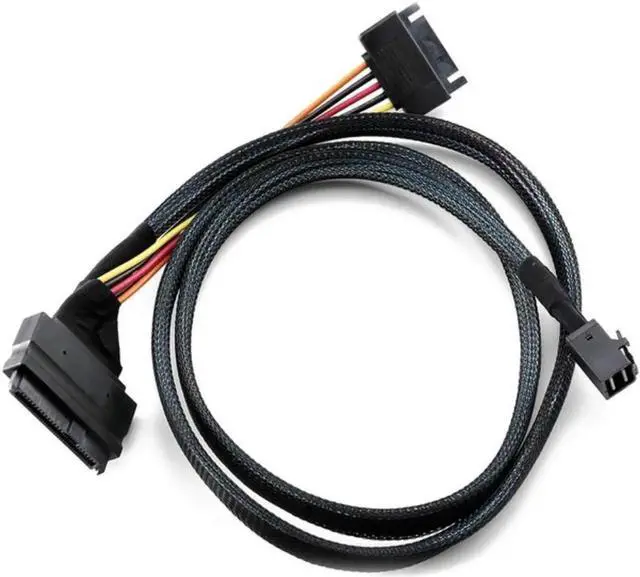

Built-in 12G Mini SAS HD to U.2 / SFF-8643 to SFF-8639 Cable 0.5M with 15-Pin SATA Power Supply, Suitable for U.2 SSD

USB Type: Standard

Certification: NONE

Use: Mobile Storage

Origin: CN (Origin)

Built-in 12G Mini SAS HD to U. 2 / SFF-8643 to SFF-8639 Cable 0.5M with 15-Pin SATA Power Supply, Suitable for U. 2 SSD

12GB/s Mini SAS HD 4i plug (SFF-8643 36P) to U. 2 plug (SFF-8639 68P) cable with SATA power

Connector 1: 1 x SFF-8643 male; Connector 2: 1 x U. 2 SFF-8639 male + 1 x SATA 15-pin female connector

Data transfer rate: PCI Express rev 2.0 is up to 2 GB/sec; PCI Express rev 3.0 is up to 4 GB/sec. PCIe Gen 3 4 lanes = 4 GB/s X 4 = 16 GB/s

Conductor diameter: 32 AWG data wire; 24 AWG power wire

Support all NVMe SSD

External hard drive cable Mini sas HD SFF 8643 to 4 SFF 8639 with 15P power supply generation SAS storage interface, and provides a Mini-SAS HD product portfolio. The product meets the signal bandwidth requirements of 6Gb/s to 12Gb/s or the corresponding SAS 2.1 and proposed SAS 3.0 industry standard signal specifications.

The system also provides a greater linear circuit board port density (port to port 11 mm) than the previous SAS interconnect system (port to port linear port density is only 19.01 mm)

Mini-SAS HD products fully comply with SFF-8643 (internal application) and SFF-8644 (external application) industry specifications.

Connector: SFF-8643 to SFF-8639 12G

Cable specifications

Internal connector A: 1 x 36-pin HD Mini SAS SFF-8643 male with latch

Internal connector B: 1 x 68-pin U. 2 SFF-8639 male

Power connector: 15-pin SATA socket

Colour: Black

Material: Copper

Package Contents: 1 x hard disk data cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
