JAENFONG 10 inch Black Sleeved 4pin PWM 2-Fan Power Y Splitter Cable,PMW 4pin 1 to 2 Converter Cable - 10"

Features

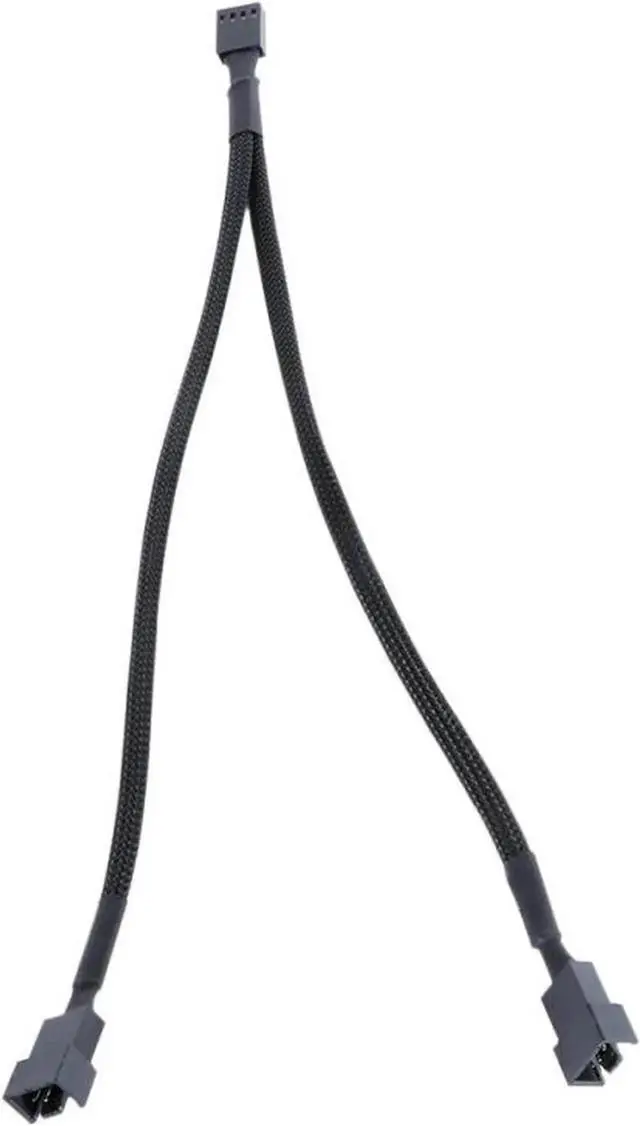

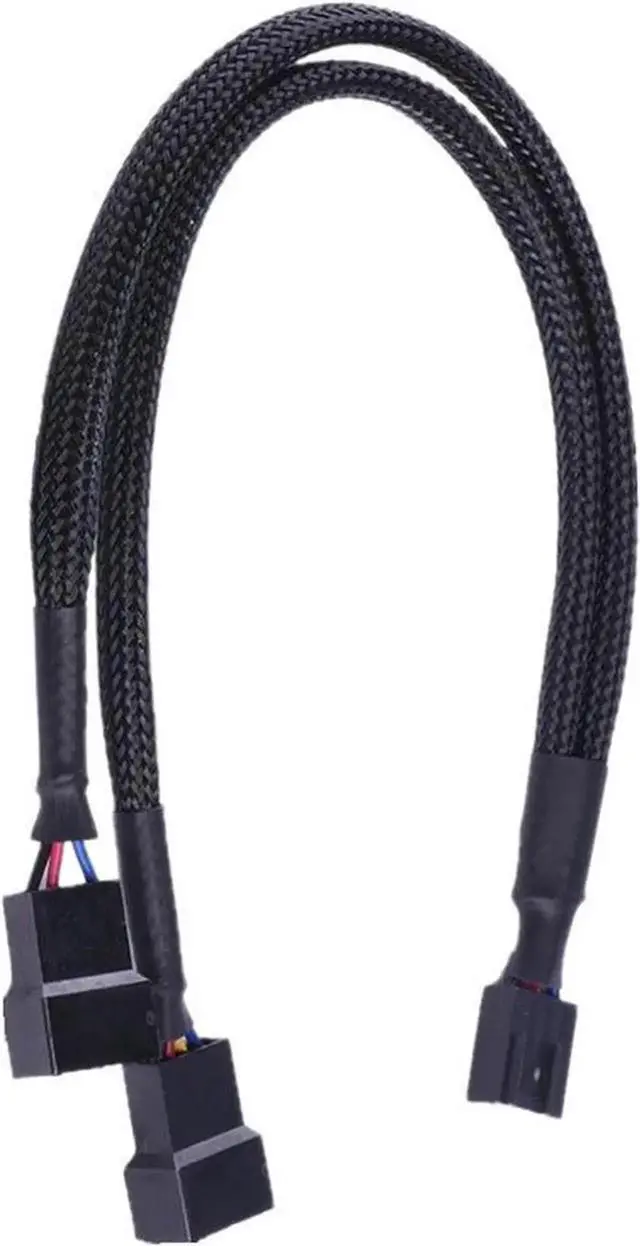

Connects 2 computer case fans to a single motherboard fan header;

1 to 2 fan converter cable connects an additional fan to increase airflow in your computer case;

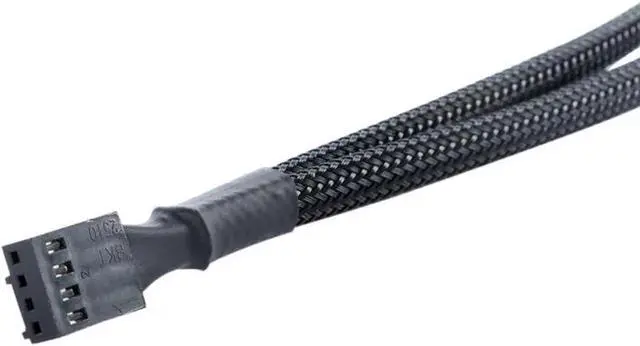

Motherboard 4-Pin receptacle connects to the 4-Pin header on the motherboard and splits the signal to 2 PWM fans;

Fans can spin at the same speed using software from a motherboard equipped with PWM control;

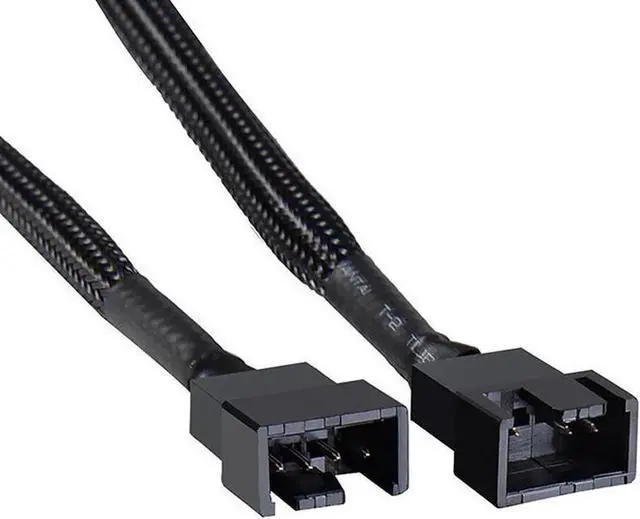

MASTER/SLAVE FAN PLUGS have a 4 pin fan connector a wire that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan. The other 3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans;

Note:

3pin fans are run in full speed, no PWM function

Only the fan on 4-pins connector is used for monitoring.

All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc

PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
