JAENFONG 2pcs 20/24Pins ATX Benchtop Power Adapter Board with USB 5V Port Computer ATX Power Supply Breakout Adapter Module (Blue)
Limited time offer, ends 11/14 By Smart core

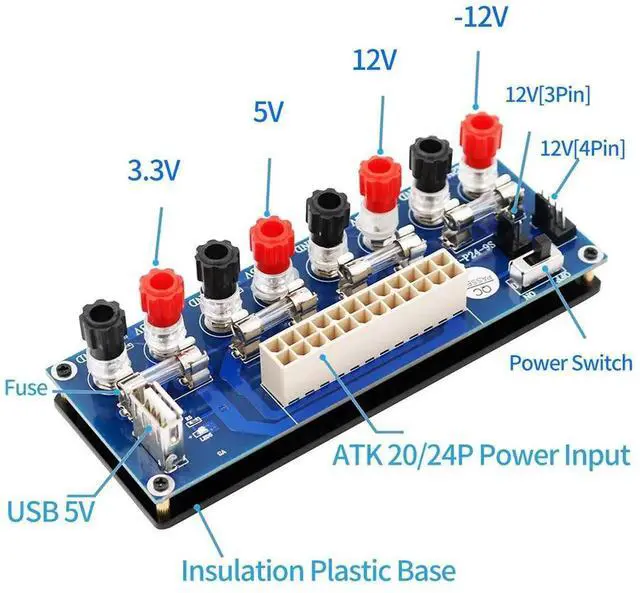

- Designed to take advantage of your power supply to create a benchtop power supply with 4 channel voltages to run almost any of your embedded electronics projects
- Provide quick access to the typical voltages needed including 3.3V, 5V, 12V and -12V
- Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect
- On-board standard 24pin ATX port, power indicator and power switch easy to control ideal to DIY low voltage power supply for developing physical computing projects (embedded systems)

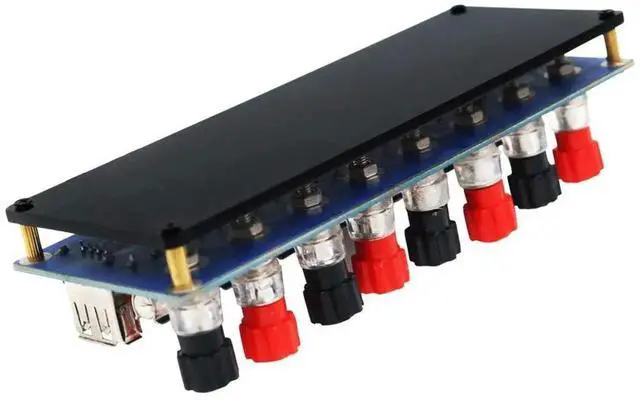

- PCB plastic spacer design for preventing short circuit .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Descriptions:
Product name: ATX power supply board
Compatible with the port: ATX (compatible with partial BTX type)
The PIN number: 24 pin
Switch: Yes
Number of sets of output: Four sets of different voltages

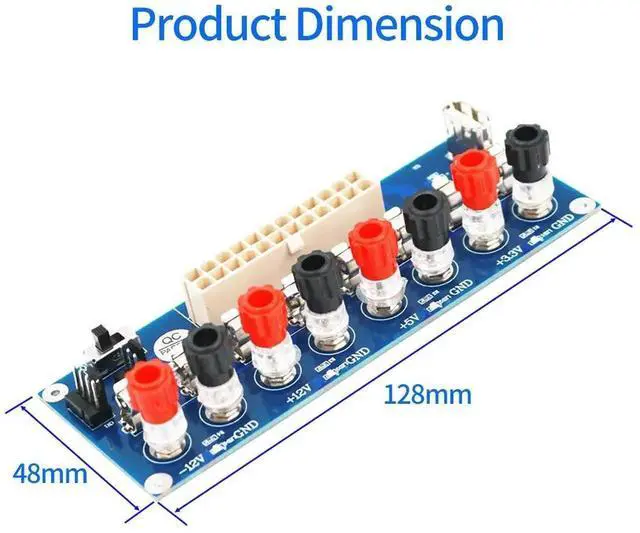

Board Size: 128x48x30 mm/5.04"x1.89"x1.18" (L*W*H)
Feature:
1. With power output indicator.
2. With module switch to turn off output.
3. The output terminal can pass the maximum current.
4. With output protection fuse,four groups correspond to four road output.

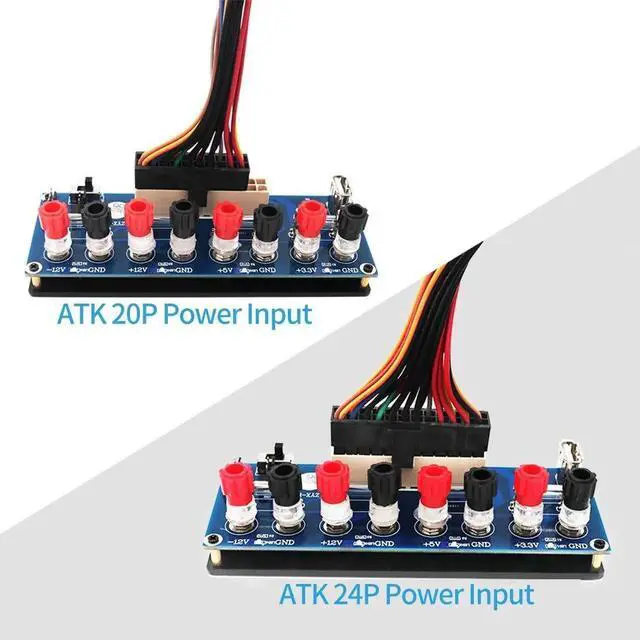

5.24 pins ATX computer power sockets, compatible with 20 pins plug
Note:

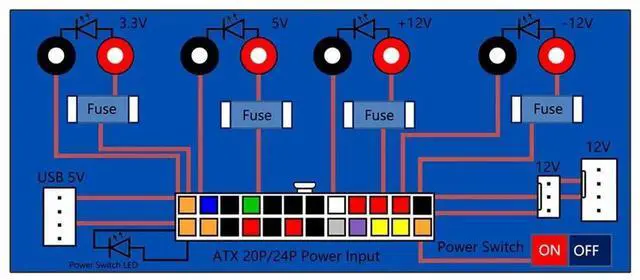

There is a -12V,a +12V,a 5V,a 3.3V terminal.
Each output take a 5A fuse. Overcurrent ,fuse can be replaced by yourself.
Each power rail has a corresponding ground connection; all of the power rails are brought out to a binding post.
About the 24pin port:
The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.
Package list:

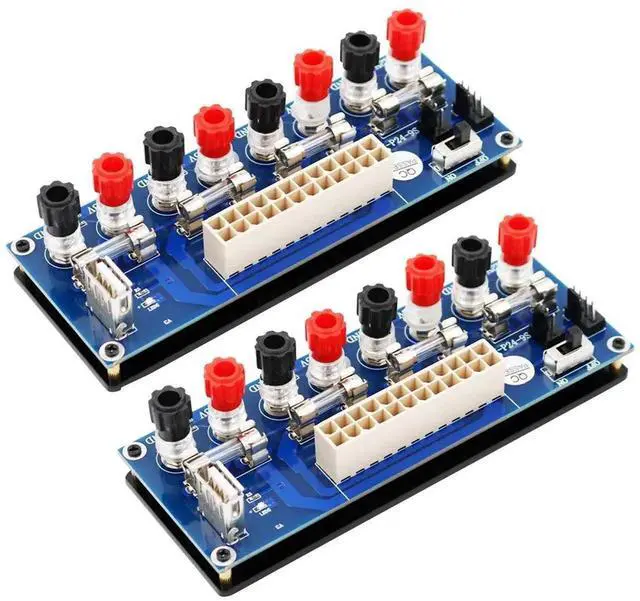

2pcs * PC ATX Power Adapter Board
