AX1600i 6Pin to 3x SATA Riser Card Hard Drive SSD HDD Power Cable 50+15+15CM 18AWG for CORSAIR Type 3 & 4 Modular Power Supply

AX1600i 6Pin to 3x SATA Riser Card Hard Drive SSD HDD Power Cable 50+15+15CM 18AWG for CORSAIR Type 3 & 4 Modular Power Supply

*Pre-Purchase Notes:

1. All pictures are for illustration purposes only, actual products may vary according to new production date and batch.

2. Different Brands & Series PSUs generally use unique pinouts, mix using may cause damage. Please check compatiblity in the below list or chat with us before you buy to ensure proper operation.

Description:

1.

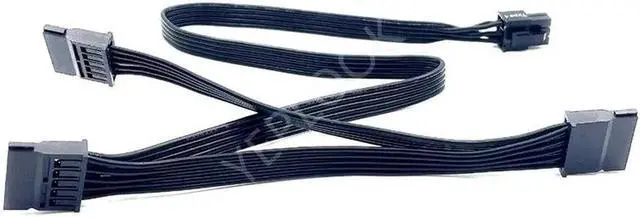

Length: 50+15+15CM

2. Flexible and easy to bend, easy to organize and good cable management.

3.

Gauge: Made of UL1007 standard 18AWG wire, heat resistant, not easy aging, very durable.

4. There is an empty hole (NC) of 6Pin, which is normal and default pinout diagram. Not a quality problem!

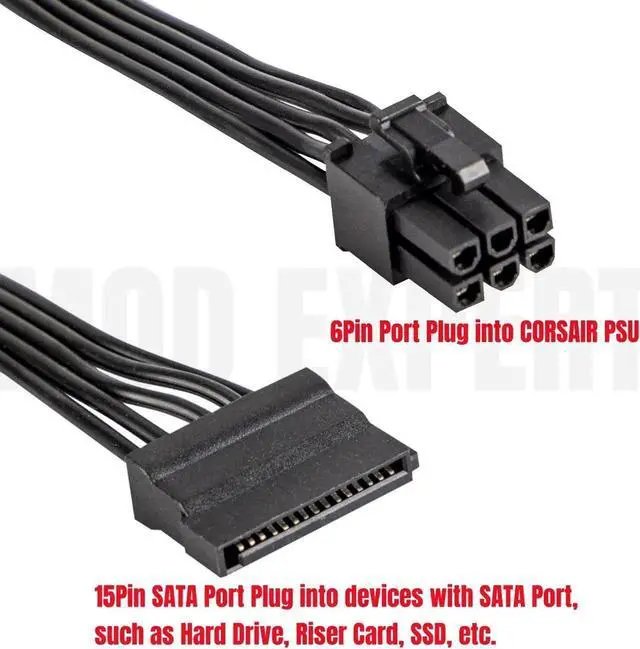

5. 6Pin port plug into CORSAIR PSUs, and SATA Port plug into the device with SATA Ports. Such as SSD, Hard Drive, Riser Cards, ectc.

Fully Compatible:

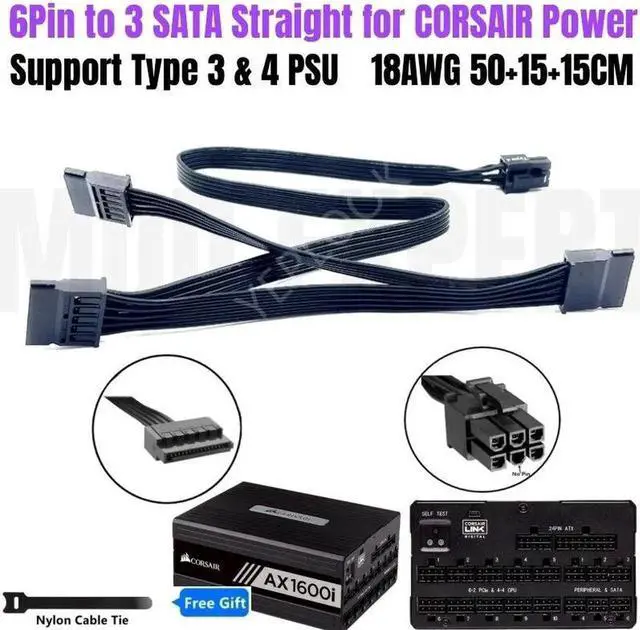

Guaranteed support Corsair All TYPE 4 Modular Power Supplies, also backward compatible with TYPE 3.

Type 3:

CORSAIR AXi: AX760i, AX860i, AX1200i, AX1500i.

CORSAIR HXi: HX750i, HX850i, HX1000i, HX1200i

CORSAIR HX Gold: HX650, HX750, HX850, HX1050

CORSAIR RM: RM450, RM550, RM650, RM750, RM850, RM1000 (Old & Yellow label).

CORSAIR CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M.

CORSAIR CX: CX550, CX650, CX750.

CORSAIR CS-M: CS850M, CS750M, CS650M, CS550M, CS450M.

CORSAIR TX-M: TX850M, TX750M, TX650M, TX550M.

Type 4:

CORSAIR RMx: RM550x RM650x RM750x RM850x RM1000x.

CORSAIR RMi: RM550i RM650i RM750i RM850i RM1000i.

CORSAIR RMe: RM550e RM650e RM750e RM850e RM1000e.

CORSAIR RM (2019): RM450, RM550, RM650, RM750, RM850, RM1000 Platinum Version.

CORSAIR SF: SF450, SF600, SF700.

CORSAIR HX Platinum: HX750, HX850, HX1000, HX1200 Platinum Version.

CORSAIR AX1600i.

Not for CORSAIR Type 1 and Type 2 power, and other brands and models. Please Check with us if your power is not in the list.
