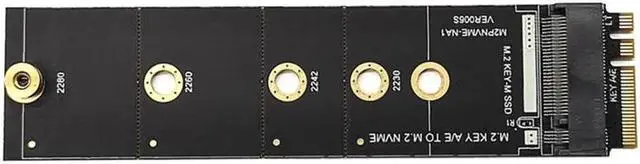

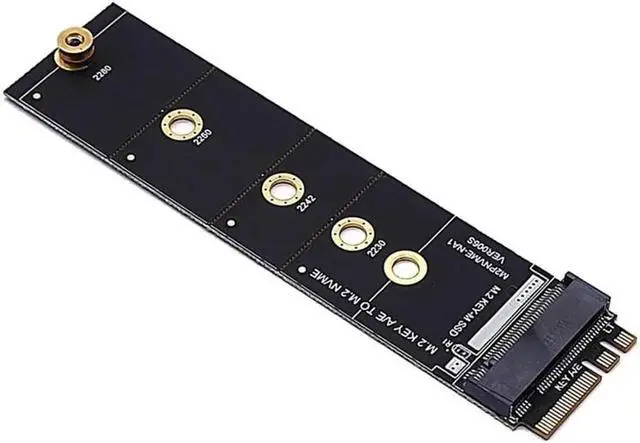

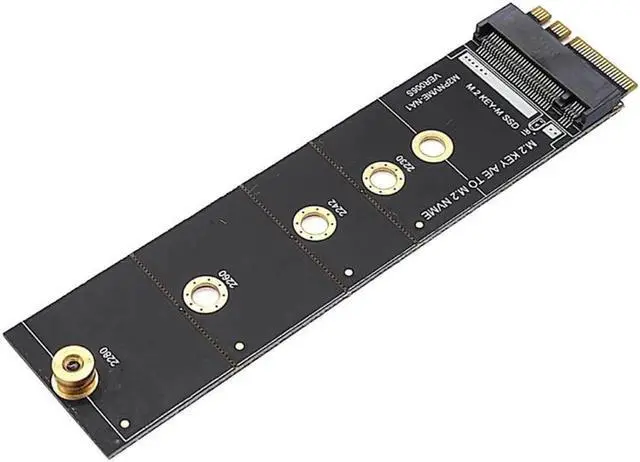

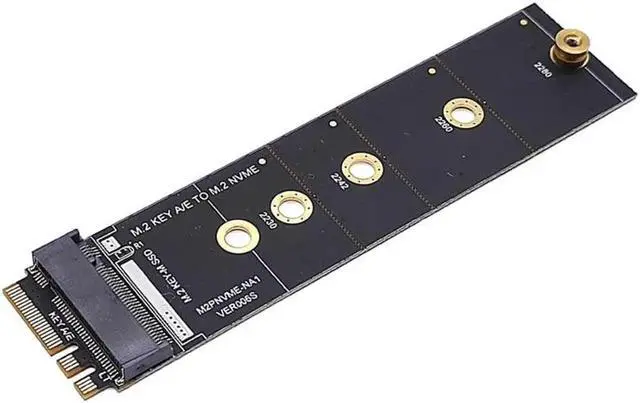

JAENFONG Wireless M.2 A/E Key Slot To M.2 M Key Wifi Bluetooth-compatible Adapter For NVMe PCI Express SSD Port

M2 KEY A-E to M2 NVME Adapter Converter Card Riser NVME TO KEY-M Expansion Slot WiFi to M2 NVME Support 2230-2280 M2 SSD

Features:

The adapter can use an ordinary M2 KEY A-E interface convert to M. 2 nvme ssd interface.

Supports M Key NVME SSD; Supports 2230, 2242, 2260 & 2280 size NGFF SSD.

The board has four mounting holes, respectively 22x30 mm, 22x42 mm, 22x60 mm, 22x80 mm, depending on the length of the slot inside your machine, you can break positioning

Connects NVME M Key SSD to M2 KEY A-E motherboard. Supports PCIE-based NVME SSD

Easy installation and no driver required. No additional power required.

Specifications

:

connector: 1 NGFF M. 2 M Key Socket and 1 M2 KEY A-E male connector

4 screw holes available supports 2230, 2242, 2260 & 2280 size NGFF SSD to fix PCB board.

Supports WIN10/WIN11 MacOS etc.

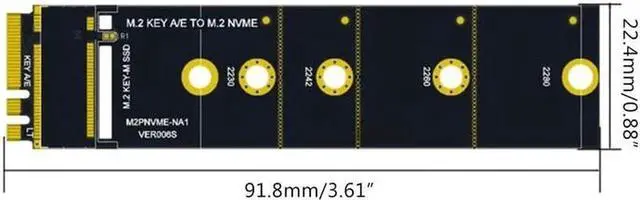

Board Size: approx 91.8 mmx 22.4 mm/ 3.61 x 0.88 in

Quantity: 1Pc

Package Includes:

1 x M2 KEY A-E to NVME Adapter Card (NOT Included NVME SSD)

Note:

Please note that it supports PCIE-based M Key NVME SSD. It does NOT support Sata based B key SSD. Not support CNIV wifi card interface

Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
