JAENFONG FT232RL CHIP USB TO RS422 FULL DUPLEX 9 CORE 9PIN WE WIRE END SERIAL INTERFACE CABLE COMPATIBLE WITH USB-RS422-WE-1800-BT(5 core) Cable length:5M

FT232RL CHIP USB TO RS422 FULL DUPLEX 9 CORE 9PIN WE WIRE END SERIAL INTERFACE CABLE COMPATIBLE WITH USB-RS422-WE-1800-BT / USB-RS422-WE-5000-BT

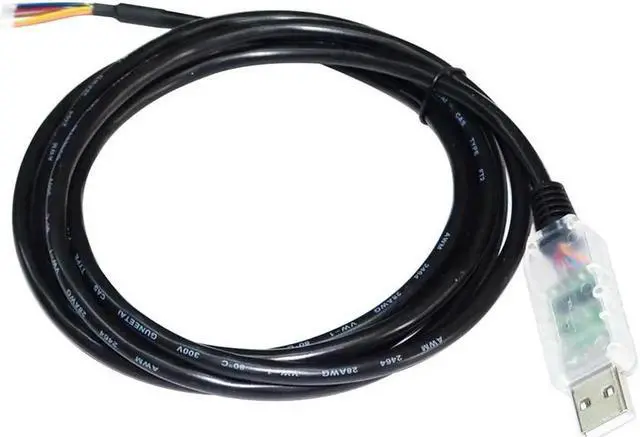

The USB-RS422-WE-1800-BT is a 1.8 m long USB to RS422 converter cable.

Using the FT232R chip combined with an RS422 level converter, the cable is a CE and FCC approved product which is one of the simplest USB RS422 solutions around.

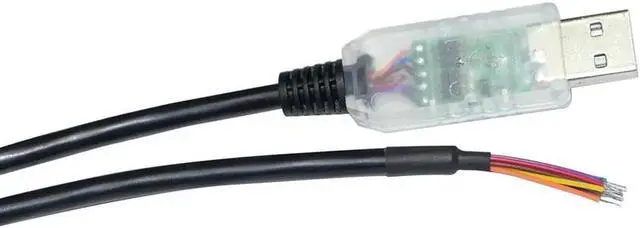

Powered from the USB port, the RS422 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.

The cable can be used with s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS422 units from 300 baud up to 3 MBaud.

For the option of 5 core, the

signal is: TXD+, TXD-, RXD+, RXD-, GND;

For the option of 9 core, the

signal is: TXD+, TXD-, RXD+, RXD-, GND; CTS+, CTS-, RTS+, RTS-, GND

Operating Systems:

Windows

10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98

Linux

Mac

OS X/9/8

Windows

CE. NET (Version 4.2 and greater)

Android

32 and 64 bit operating systems are both supported.

DRIVER DOWNLOADING:

https: //chip. com/drivers/vcp-drivers/

INSTALLATION GUIDELINE:

https: //chip. com/document/installation-guides/

Package Contents:

1 X USB to 5 core / 9 core WE Cable

Length: 1.8M /6FT, 3.0M /10FT, 5.0M / 16.4FT, 8.0M / 26.4FT (Approx. )

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.

If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.

If you receive the goods, and have any dissatisfaction or need assistance, please feel free to contact me or leave me a message.
