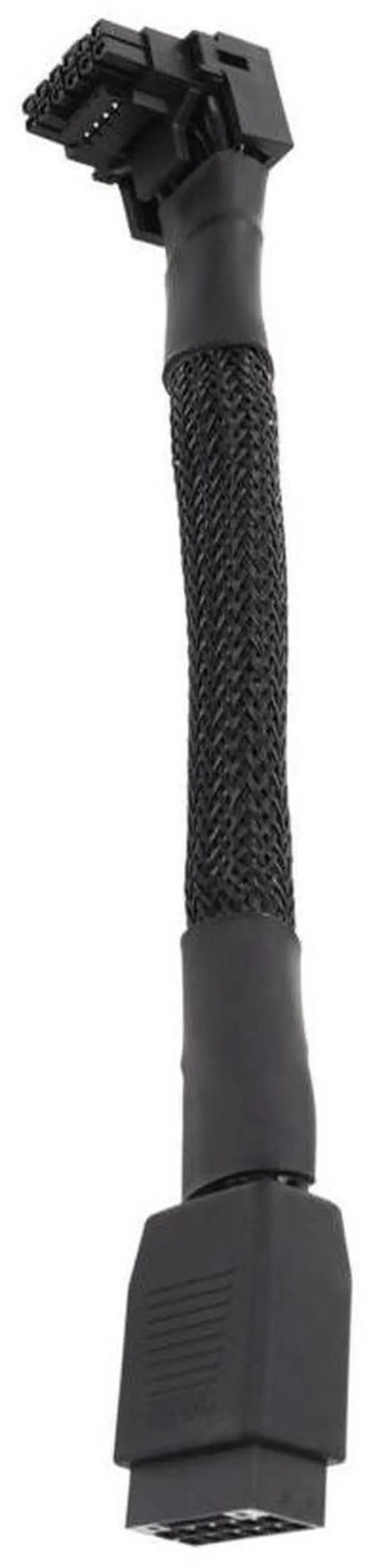

12VHPWR 90° Angled Extension Cable 16AWG 600W PCIe 5.0, 16 Pin (12+4) Female to Male GPU Power Adapter, Type B (4-Pin on Top) for RTX 5090/5080/4090/4080/4070 Ti/3090 Ti, 7in Sleeved

1. TYPE B CONFIGURATION 4-PIN ON TOP FOR GPUs WITH COMPONENTS BELOW THE CONNECTOR Features Type B design with 4-pin sense wires positioned on the top side of the connector (closer to the GPU backplate). This configuration is optimized for graphics cards with components or capacitors directly below the power connector ensuring full insertion without obstruction. Type B is recommended when the area BELOW your GPUs power connector has limited clearance. If youre unsure, please check your GPUs layout before ordering.
2. 90° RIGHT ANGLE CONNECTOR ONLY 20MM SIDE PANEL CLEARANCE Factorymolded 90° angled connector eliminates the need to bend cables near the GPU port the #1 cause of 12VHPWR connector failure. Requires only 20mm of clearance from the side panel, allowing wide GPUs to fit in compact ITX and SFF cases. The 7-inch (18cm) sleeved cable provides flexible routing for clean cable management.
3. 600W PCIe 5.0 POWER DELIVERY 16AWG PREMIUM CONSTRUCTION Built with highquality 16AWG tinned copper wire, capable of delivering up to 600W of stable power to the most demanding GPUs (RTX 4090, 5090, etc.). Premium 12V-2x6 connector features highcurrent terminals rated for reliable power delivery. The black sleeved jacket provides a professional, abrasionresistant finish.
4. EXTENSION CABLE PLUG & PLAY WITH YOUR EXISTING 12VHPWR CABLE This is a Female to Male extension cable simply plug your PSUs existing 12VHPWR cable into the female end, then plug the male end directly into your GPU. No need to replace your PSUs modular cables. Works with ALL PSU brands that have a 12VHPWR/12V-2x6 output (Corsair, EVGA, Seasonic, ASUS, Thermaltake, Cooler Master, etc.).
5. SAFER THAN REMOVABLE ADAPTERS FULL CABLE DESIGN Unlike removable angled adapters that have been voluntarily recalled due to connector loosening, overheating, and melting risks, our full extension cable is a singlepiece design with no removable connection points. Fewer connections = fewer potential failure points. 12 dedicated highcurrent wires no soldering, no bridging, no sharing.
6. CRITICAL SAFETY RULES MUST FOLLOW 1) Fully seat the connector push straight and firmly until you hear a CLICK; 2) Verify NO GAP remains between the connector and GPU socket incomplete insertion is the #1 cause of connector melting; 3) Do NOT bend the cable within 35mm (1.4 inches) of the connector; 4) Regularly inspect the connector for signs of melting or discoloration, especially with highpower GPUs like RTX 4090/5090.
7. KIT INCLUDES 1x 12VHPWR 16Pin (12+4) 90° Angled Extension Cable (Female to Male, Type B, 7in / 18cm)

GPU Compatibility:

1. NVIDIA RTX 50 Series: 5090, 5080, 5070 Ti
2. NVIDIA RTX 40 Series: 4090, 4080, 4070 Ti, 4070
3. NVIDIA RTX 30 Series: 3090 Ti
4. Any GPU with 12VHPWR/12V-2x6 (12+4) power port

Power Supply Requirements:

1. Your PSU must have a native 12VHPWR/12V-2x6 cable (this is an extension, not a direct PSU replacement cable)
2. For RTX 5090: 1000W or higher
3. For RTX 4090/5080: 850W or higher
4. For RTX 4080/4070 Ti: 750W or higher

READ BEFORE INSTALLATION Incomplete insertion is the #1 cause of 12VHPWR connector failure.-11

Step 1: Connect to Your PSU Cable Plug your PSUs existing 12VHPWR cable into the Female end of this extension cable. Ensure a fully seated connection.

Step 2: Connect to Your GPU CRITICAL STEP Push the Male end (90° angled connector) straight and firmly into your GPUs power port until you hear a distinct CLICK. The connector must be completely flush with the GPUs port.

Step 3: Verify NO GAP After insertion, visually check that no gap remains between the connector housing and the GPU socket. If you see any gap, the connector is not fully seated DO NOT power on your system re-insert immediately.

Additional Safety Tips:

1. Do NOT bend the cable within 35mm (1.4 inches) of the GPU connector
2. Periodically inspect the connector for signs of melting or discoloration
3. If you notice any abnormality, power down immediately

Is your RTX 4090 or 5090s thick power cable being crushed against your case side panel? Not only does it look messy, but sharp bends increase the risk of connector loosening, overheating, and even melting.

Our 12VHPWR 90° Angled Extension Cable (Type B) is the professional, safer solution. The 90° connector routes your cable cleanly downward, requiring only 2
