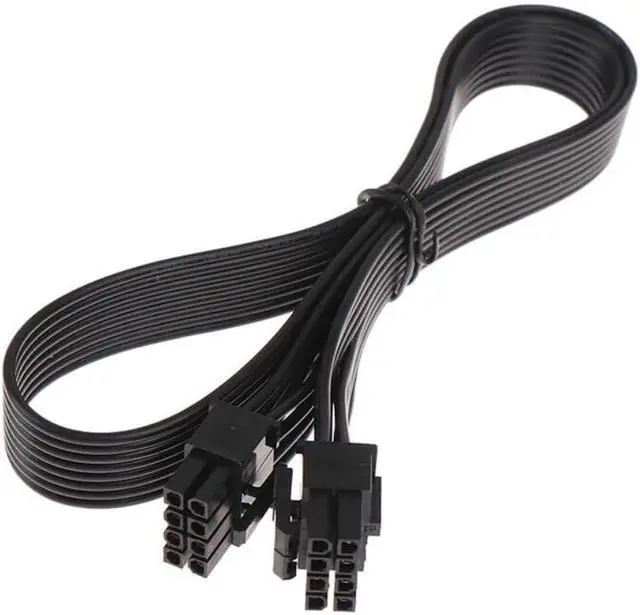

CPU 8 Pin Male to CPU 8 Pin (4+4 Detachable) Male EPS-12V Motherboard Power Adapter Cable for Corsair Modular Power Supplies 18AWG 25-inch (63cm) for AX/HX/RM/SF/TX/CX Series

1. PERFECT FIT FOR CORSAIR MODULAR PSUs Designed specifically for Corsair modular power supplies. Compatible with RMi, RMx, RM, SF, AX, AXi, HX, HXi, TX-M, CX-M series (see full list below). Note: Does NOT work with AX1200, AX Gold series, or EVGA PSUs . Always double-check your PSU model before purchasing.
2. 4+4 DETACHABLE DESIGN UNIVERSAL MOTHERBOARD COMPATIBILITY Features an 8-pin (4+4) detachable male connector. Use it as a full 8-pin EPS-12V for modern high-end motherboards, or simply slide apart to create a 4+4 pin configuration for older P4/ATX 4-pin boards . One cable covers all your CPU power needs.
3. FOR CPU POWER ONLY CRITICAL SAFETY WARNING This cable is engineered exclusively for CPU/EPS-12V power delivery. DO NOT use with graphics cards (GPU/PCIe) . The 8-pin PSU-side connector is keyed for CPU, not PCIe . Using it on a GPU may cause short circuits or component damage.
4. PREMIUM 18AWG WIRE FOR STABLE POWER DELIVERY Built with high-quality 18AWG tinned copper wires (1007-18AWG standard) to minimize voltage drop and resistance . Ensures clean, stable power delivery to your CPU, even under heavy overclocking or high-TDP loads.
5. EASY CABLE MANAGEMENT 25-INCH LENGTH Total length of 25 inches (63cm) including connectorsprovides ample reach for routing behind the motherboard tray or in full-tower cases. Black flat/sleeved design helps maintain a clean, professional-looking build .
6. Compatible Corsair Modular PSU Series : AX Series: AX760, AX760i, AX850, AX860, AX860i, AX1200i, AX1500i HX Series: HX750, HX750i, HX850, HX850i, HX1000i, HX1200, HX1200i RM Series: RM450, RM550, RM550x, RM650, RM650x, RM750, RM750x, RM850, RM850x, RM1000, RM1000x RMi Series: RM650i, RM750i, RM850i, RM1000i SF Series: SF450, SF600, SF750 TX-M Series: TX650M, TX750M, TX850M CX-M Series: CX550M, CX650M, CX750M CS-M Series: CS650M, CS750M, CS850M
7. NOT Compatible With : AX1200 (non-i version), AX Gold series (e.g., AX760 Gold, AX860 Gold), HX Bronze/White series (older models), Any EVGA power supplies, Any non-Corsair PSUs (Seasonic, Thermaltake, etc. unless explicitly listed), If unsure about compatibility, please message us with your PSU model before ordering.

Overview

Does your high-performance build require additional CPU power? Are you building with a Corsair modular power supply and need a dedicated CPU cable? This 8-pin male to 4+4 pin male EPS-12V adapter cable is the perfect solution for providing clean, dedicated power to your motherboard's CPU socket .

Designed exclusively for Corsair modular power supplies, this cable bridges the gap between your PSU's CPU output port and your motherboard's EPS-12V power connector, ensuring your processor receives stable, reliable power for overclocking and demanding workloads .

Why You Need This Cable

Many modern motherboardsespecially those designed for overclockingoften require more CPU power than a single 4-pin connector can provide. High-end boards frequently feature 8-pin or even 8+4-pin CPU power configurations . This cable allows you to:

Add a second CPU power cable for motherboards with dual EPS-12V connectors

Replace a lost or damaged cable from your Corsair PSU kit

Extend your existing CPU power reach for better cable management in larger cases

Ensure stable power delivery during overclocking sessions or under heavy CPU loads

Versatile 4+4 Detachable Design

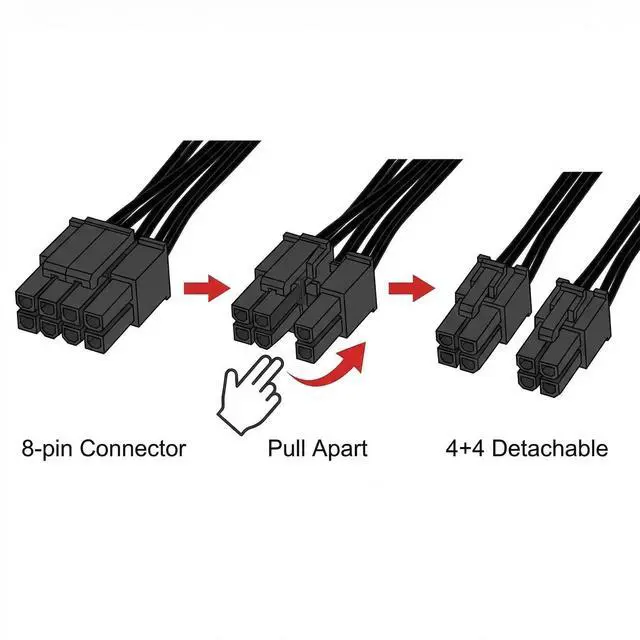

The motherboard end of this cable features an innovative detachable 4+4 pin design. This means :

Slide together for use as a standard 8-pin EPS-12V connector (compatible with most modern motherboards)

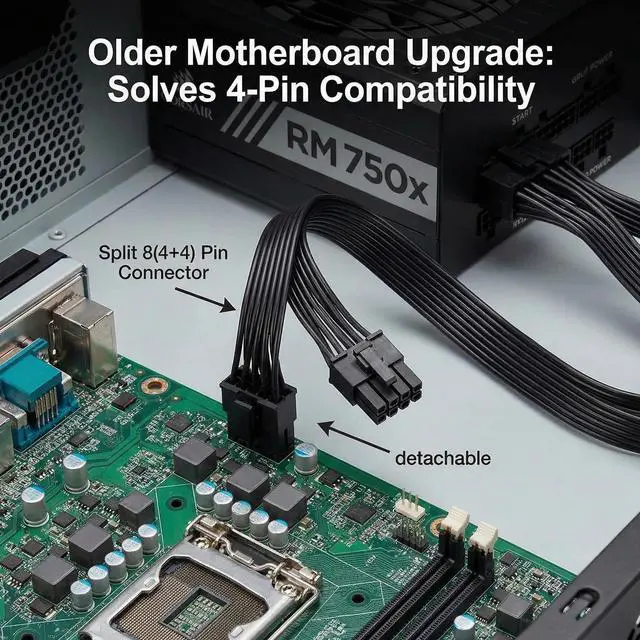

Separate into two 4-pin sections for use as a 4-pin ATX connector (compatible with older or entry-level boards)

No adapters neededsimply configure the connector to match your motherboard's requirements

Premium Build Quality

Conductor: High-purity 18AWG tinned copper wire ensures maximum conductivity and minimal power loss, supporting high-current CPU loads

Insulation: Durable PVC insulation with UL1007 rating provides excellent protection against heat and abrasion

Connectors: Precision-molded 8-pin male (PSU end) and 4+4 detachable male (motherboard end) connectors ensure secure, tight fit with no wobbling or loose connections

Length: 25 inches (63cm) including connectorsoptimized for comfortable routing in most PC cases

Technical Specifications

Specification Details

Brand [lilila-ree]

Cable Type CPU Power Adapter / Replacement Cable

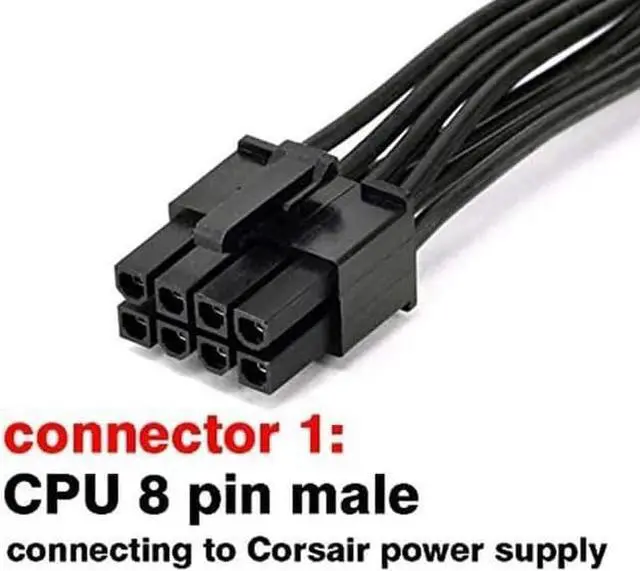

Connector A (to PSU) 8-Pin Male (for Corsair PSU CPU port)

Connector B (to Motherboard) 8-Pin Male (4+4 Detachable) EPS-12V / ATX

Wire Gauge 18AWG

Cable Standard UL1007

Material Tinned Copper

Length 25 inches (63cm) including connectors

Color Black

Included Accessories Self-adhesive tape for cable management

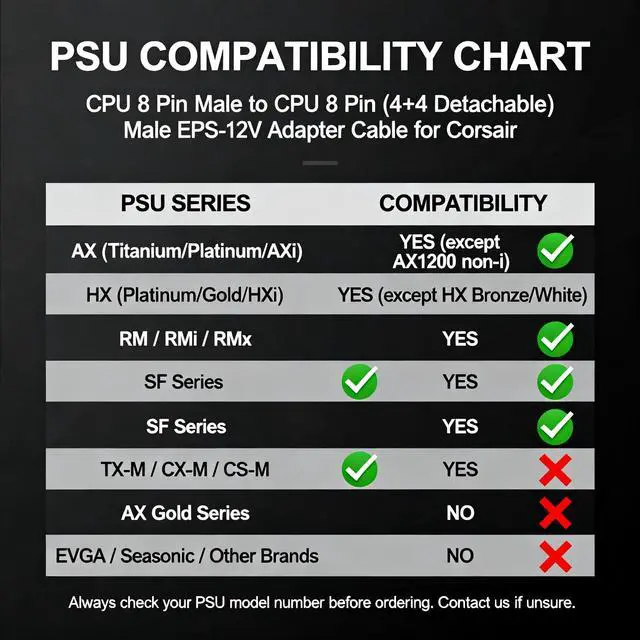

Confirmed Compatible Corsair PSU Models

AX Series: AX760, AX760I, AX860, AX860I, AX1200I, AX1500I

NOT Compatible: AX1200 (non-"I" model)

HX Series: HX750I, HX850I, HX1000I, HX1200I, HX750, HX1200

RM Series: RM450, RM550, RM550X, RM650, RM650I, RM650X, RM750, RM750I, RM750X, RM850, RM850I, RM850X, RM1000, RM1000I, RM1000X

SF Series: SF450, SF600, SF750

TX Series: TX650M, TX750M, TX850M

CX Series: CX550M, CX650M, CX750M

Note: This list includes most Corsair Type 3 and Type 4 pinout PSUs. If your specific model is not listed, please verify compatibility before ordering.

CRITICAL COMPATIBILITY AND SAFETY WARNINGS

1. CPU CABLE ONLY NOT FOR GRAPHICS CARDS

This cable is designed specifically for CPU/motherboard power. It is NOT compatible with graphics cards . PCI-E 8-pin GPU cables have a different pin configuration and are not interchangeable. Using this cable for a graphics card will cause short circuits and permanent damage.

2. CORSAIR PSUs ONLY NOT FOR EVGA OR OTHER BRANDS

This cable is engineered exclusively for Corsair modular power supplies listed above. It is NOT compatible with :v

EVGA power supplies (will cause damage)

Other brands (Seasonic, Thermaltake, Cooler Master, etc.) without verification

Older Corsair models not listed (e.g., AX1200 non-"i")v

3. VERIFY YOUR PSU MODEL

Before purchasing, please locate the model number on your power supply's label and confirm it appears in the compatibility list . Connecting this cable to an incompatible PSU will result in:

Short circuits

Motherboard damage

Component failure

Voided warranties

4. INSTALLATION PRECAUTIONS

Always power down your system and unplug from wall outlet before installation

Ensure proper alignmentconnectors should slide in easily without forcing

Double-check that you're plugging into the correct PSU port (CPU/ATX, not PCI-E)

The 8-pin end and 4+4 pin end cannot be used interchangeably

If you are unsure whether this cable supports your specific power supply model, please contact us through Amazon with your PSU model number before ordering. We're happy to verify compatibility for you .

Package Includes

1 x CPU 8-Pin Male to 4+4 Pin Male EPS-12V Power Adapter Cable (63cm/25-inch)
