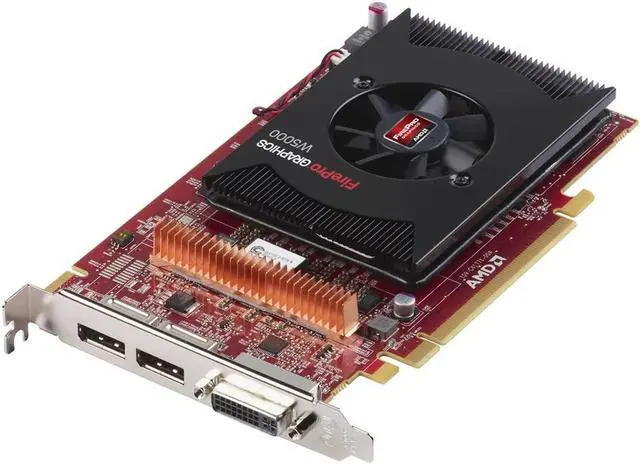

AMD FirePro W5000 2GB GDDR5 256-bit PCI Express 3.0 x16 Workstation Graphics Card - 2x DisplayPort 1.2 + DVI, Single-Slot, 75W

AMD FirePro W5000 2GB Professional Mid-Range Workstation Graphics Card

Overview

The AMD FirePro W5000 is a professional workstation graphics card launched on August 7th, 2012, designed for users of professional CAD/CAM/CAE software, digital content creation, and medical imaging applications . Built on

AMD's Graphics Core Next (GCN) 1.0 architecture using a 28 nm manufacturing process, this card delivers the reliability, stability, and ISV certifications required for demanding professional workflows .

Key Features

GCN 1.0 Architecture: Powered by the Pitcairn graphics processor (Pitcairn LE GL variant) with 768 stream processors, 48 texture mapping units, and 32 ROPs . The GCN architecture provides improved geometry throughput and higher resolution support compared to previous generations .

2GB GDDR5 Memory: Features 2GB of GDDR5 memory on a 256-bit memory interface with 102.4 GB/s memory bandwidth . The GPU operates at 825 MHz core clock with memory running at 800 MHz (3.2 Gbps effective) .

Performance: Delivers 1.267 TFLOPS of single-precision floating-point performance and 79.20 GFLOPS of double-precision performance .

Multi-Display Support: AMD Eyefinity technology enables a single GPU to drive up to three independent displays simultaneously .

Versatile Display Outputs: Equipped with 2x DisplayPort 1.2 and 1x Dual-Link DVI outputs . Each DisplayPort supports resolutions up to 4096 x 2160 (4K), allowing connection to ultra-high-definition displays .

Efficient & Compact Design: Single-slot form factor with 75W maximum power consumptionrequires no external PCIe power connectors, simplifying installation in any workstation .

Power Management: Features AMD PowerTune dynamic power optimization technology and ZeroCore Power for low power consumption when displays are off .

Technical Specifications
