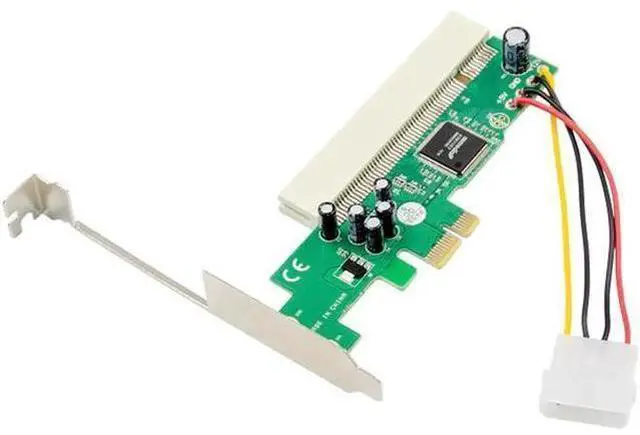

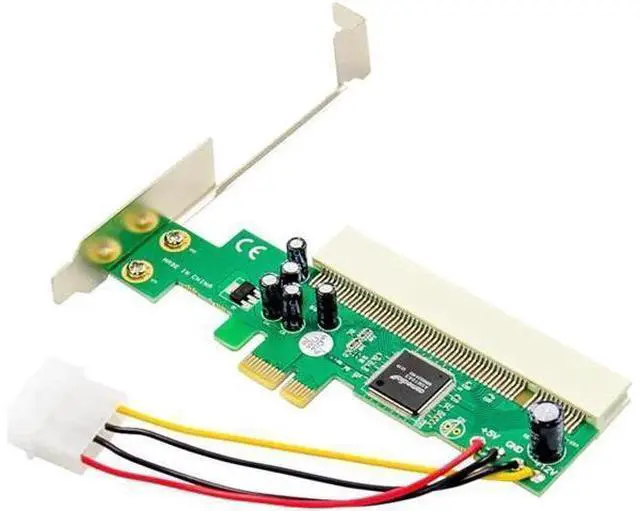

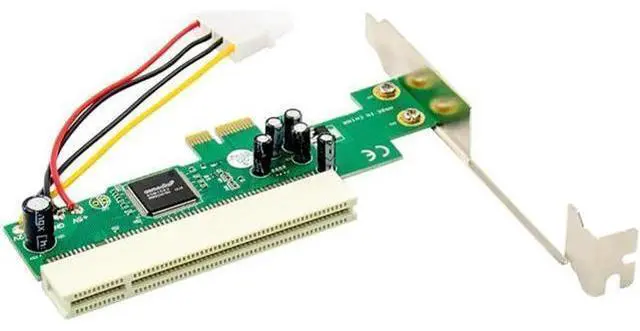

PCI Express x1 to PCI Bridge Card PCI Express-to-PCI with 4-pin Power Connector ASM1083

ASM1083 is a PCI Express-to-PCI Bridge allows for the use of PCI Bus with the high-performance PCI Express Network. As PCI Express systems proliferate, there remain many applications that do not need the extensive bandwidth nor performance features of PCI Express. With the ASM1083 many existing chips and entire subsystems can be used, without modification, with PCI Express motherboards. FEATURES - PCI Express single-lan port - Provide 4-pin connection of power - PCI v.
3.0: 32bits, up to 66MHz - Low power - 400mW - Accord with version 1.0, compatible version 2.3 - PCI Express 2.5G bps Database transmition - PCI Express Base Specification, Revision 1.0 a - PCI Express to PCI Bridge Specification, Revision 1.0 - PCI Express Card Electromechanical Specification, Revision 1.0 a Bus Interface PCI Express X1 Connectors PCI Interface Power source The power for expansion PCI add-in boards is supplied from the standard ATX power supply or from and external power supply (+12V and 5V) via PCI backplane
