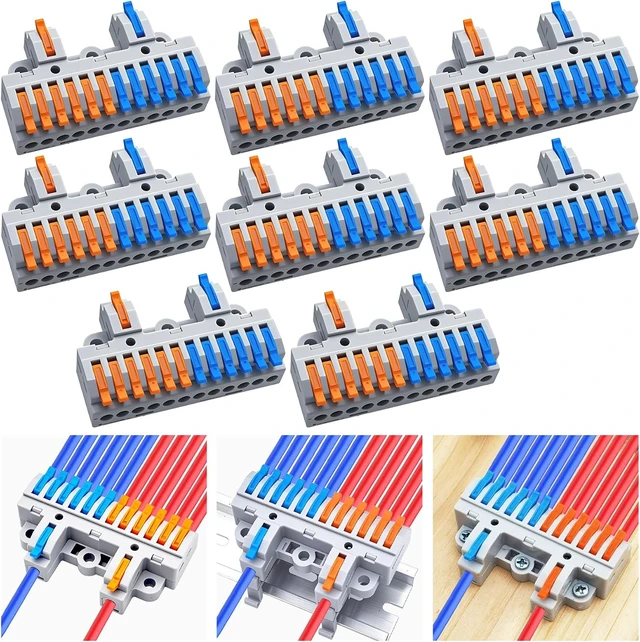

2-in-12-out Terminal Block Kit (8 Sets), High Density Lever Wire Connectors, Dual Input to Twelve Output, DIN Rail & Screw Fix, for 28-12AWG Wire
- Maximum Two In Twelve Out Connectivity: Handle your most demanding distribution needs with these 2-in-12-out lever terminal blocks. Efficiently route two input conductors to twelve individual outputs, offering extensive wiring solutions with the quick, secure, tool-free lever action.
- Flexible Mounting Choices: Install with ease using either the provided DIN rail mounting brackets for quick panel integration or the included screws for secure surface attachment. Compact dimensions (Dimensions after DIN rail bracket installation: 40x64x33mm; Dimensions after screw installation: 38.5x64x15mm) make it perfect for tight installations.
- Robust & Secure by Design: Built with premium flame-retardant PA66 housing for superior safety, resilient stainless steel springs for enduring clamping force, and high-conductivity purple copper contacts for optimal current flow. Reliably rated for 32A current and 600V voltage.
- Wide-Ranging Wire Acceptance: Suitable for a variety of wires, including solid conductors 0.08-4mm²/28-12 AWG and flexible/stranded conductors 0.08-2.5mm²/28-14AWG. The required wire stripping length is 10mm. A versatile choice for DIY projects and professional use.
- Generous 8-Pack & Limitation: Package includes 8pcs 2-in-12-out terminal block, 16pcs brackets required for DIN rail mounting and 1 pack of screws. (Essential: These connectors are intended for dry indoor use only and are not function to be waterproof or moisture-resistant.)
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Important Note: This product is exclusively for dry indoor use and lacks moisture or water resistance.

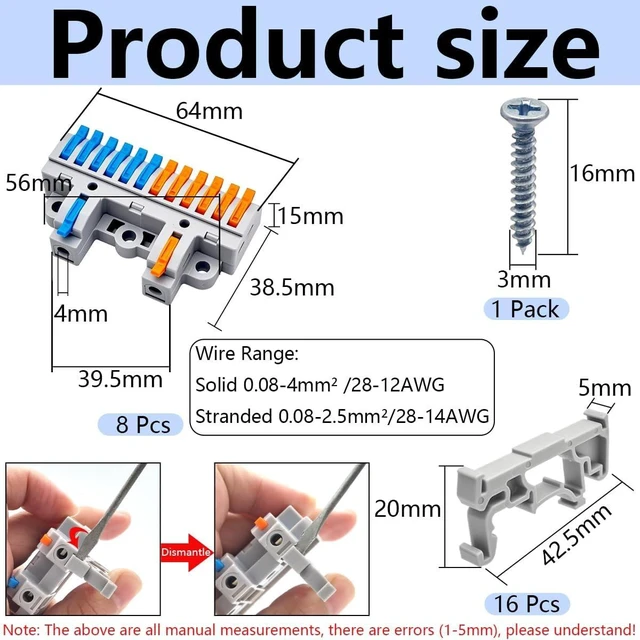

Product sizeBreak the traditional wiring method, just plug it in, the wiring is simple, and the wires are not exposed.
Can be securely mounted directly to the surface using the provided screws.
Can be used the included DIN rail brackets for standard panel assembly. (Note: rails are not included with this kit)

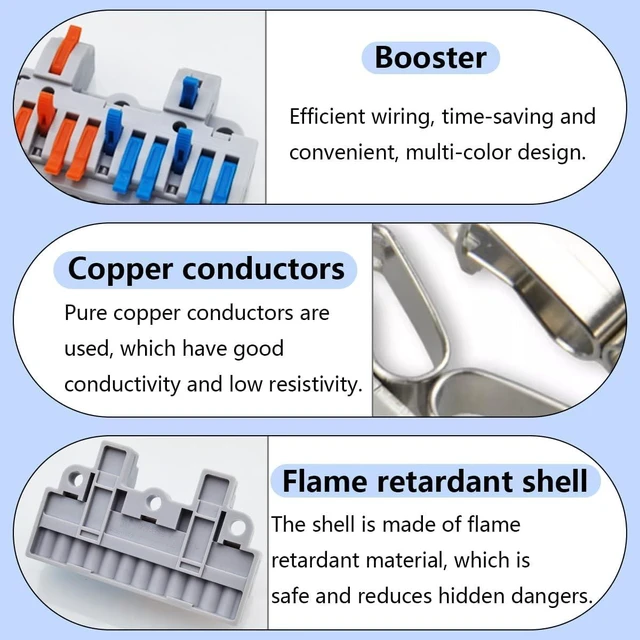

FeaturesEfficient wiring, time-saving and convenient, multi-color design.
Pure copper conductors are used, which have good conductivity and low resistivity.

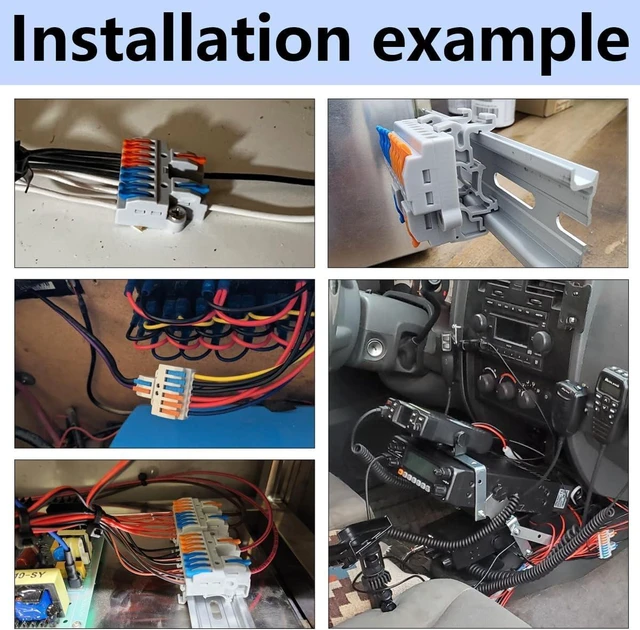

Excellent for creating neat and organized junction boxes or expanding circuits in a safe and efficient manner within dry settings.

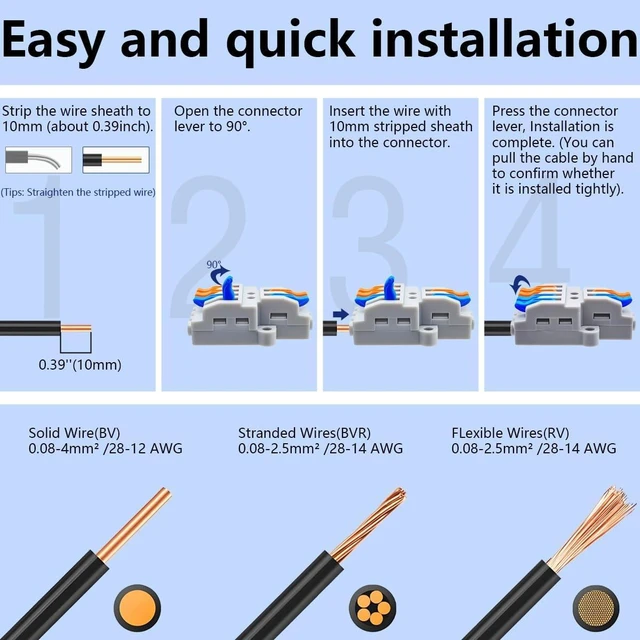

Step 1: Strip the wire sheath to 10mm (about 0.39inch).
Step 2: Open the connector lever to 90°.
Step 3: Insert the wire with 10mm stripped sheath into the connector.
Step 4: Press the connector lever, Installation is complete. (You can pull the cable by hand to confirm whether it is installed tightly).
- Quantity: 8 Sets (Connectors, DIN Brackets, Screws)
- Rated current: 32A
- Rated voltage: 600V
- Wire Range: Solid 0.08-4mm² (28-12AWG); Stranded 0.08-2.5mm² (28-14AWG)
- Strip Length: 10mm
- Housing: Flame Retardant PA66
- Spring: Stainless Steel
- Contact: Purple Copper
