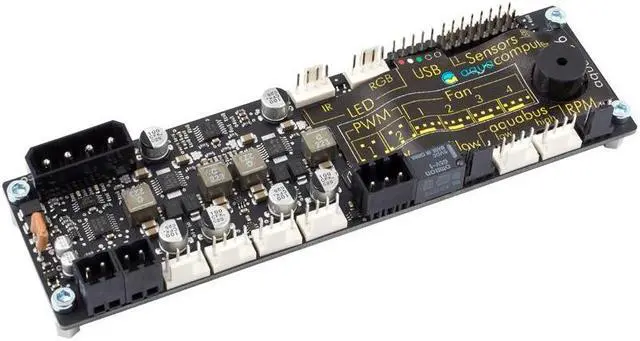

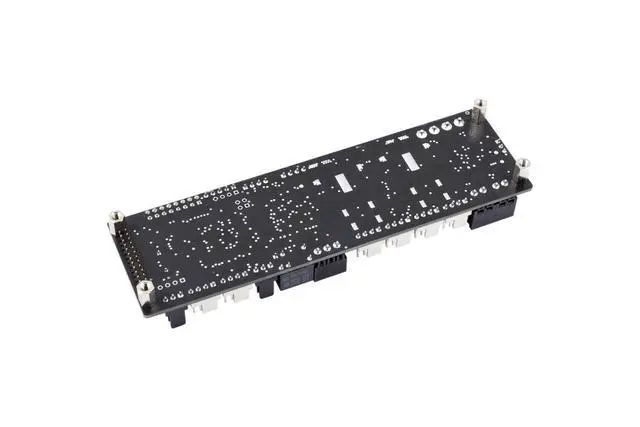

Aquacomputer Aquaero 6 LT USB Fan-Controller (53234)

The aquaero is an absolutely autonomous working microprocessor-controlled device with USB 2.0 interface. All speed parameters and sensor values can be set and visualized in an user-friendly menu or through an even easier to use PC-software.

Thekey featuresof the aquaero 6 include:
· Programmable four channel fan controller
· USB 2.0 and aquabus interface
· Four fan outputs with up to 30 Watt of power per channel
· All fan outputs with 4-Pin plug, switchable between voltage and PWM control
· Versatile control options
· Eight temperature sensor inputs
· Flow sensor input
· Three LED outputs
· Potential-free switch
· Two additional power outputs
· Extensive alarm options
· Acoustical alarm
· Speed signal output for status evaluation
· Expandable to a maximum of 12 fan channels

For a more thorough feature description, we recommend to download the manual:aquaero_5_6_en_2016_10_14.pdf

Several aqua computer products can be used to expand the functionality of the aquaero 6 controller. These expansions are dynamically mapped into the menus and display pages of the aquaero, creating a consitent control system rather than individual devices.

In maximum configuration, the following devices can be connected to an aquaero 6 simultaneously:
2x aquastream XT/ULTIMATE pumps
8x poweradjust 2/3
1x aquaero 5/6 LT (in this case only 4x poweradjust 2/3)
4x mps based devices (flow sensor, pressure/fill level sensor and D5 pump with aquabus)
2x farbwerk controller
1x Real Time Clock expansion module
