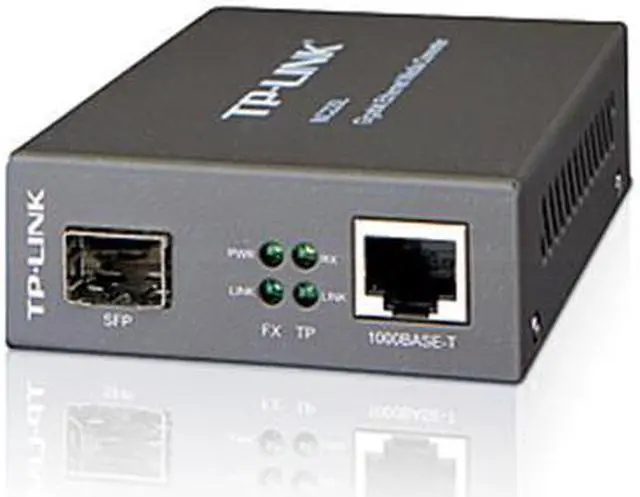

TP-Link MC220L Network Gigabit Ethernet Media Converter 1000M SFP Slot

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-SX/LX/LH standards- the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Works at 1000Mbps in Full-Duplex mode for both TX port and FX port. Supports auto MDI/MDIX for TX port. Provides switch configuration of Force /Auto transfer mode for FX port.

FX port support hot-swappable. Extends fiber distance up to 0.55 km for multi-mode fiber and 10km for single-mode fiber. Easy-to-view LED indicators provide status to monitor network activity easily. External power supply. Complies with IEEE 802.3 ab and IEEE 802.3 z. FX port supports hot-swappable. Extends fiber distance up to 0.55 km for multi-mode fiber and 10km for single-mode fiber.
Standards and Protocols: IEEE 802.3 ab- IEEE 802.3 z- IEEE 802.3 x.
Basic Function: Full Duplex Flow Control (IEEE 802.3 x). Extends fiber distance up to 0.5 km using 50/125um fiber.
Ports: 1 Gigabit SFP port. 1 1000M RJ45 port (Auto MDI/MDIX).
Network Media 100BASE-T: UTP category 5- 5e cable (maximum 100m). EIA/TIA-568 100O STP (maximum 100m).
Network Media 100BASE-FX: Multi-mode/Single-mode Fiber.
LED Indicators: PWR- LINK- RX.
Dimensions (W*D*H): 3.7 x 2.9 x 1.1 in. ( 94.5 x 73.0 x 27.0 mm).
Power Supply: External Power Adapter.
Safety & Emission: FCC- CE.
