Solarity ArrRGB DAC Rev. 4.1 - Digital RGB to Analog RGB Converter (SYT-0003)

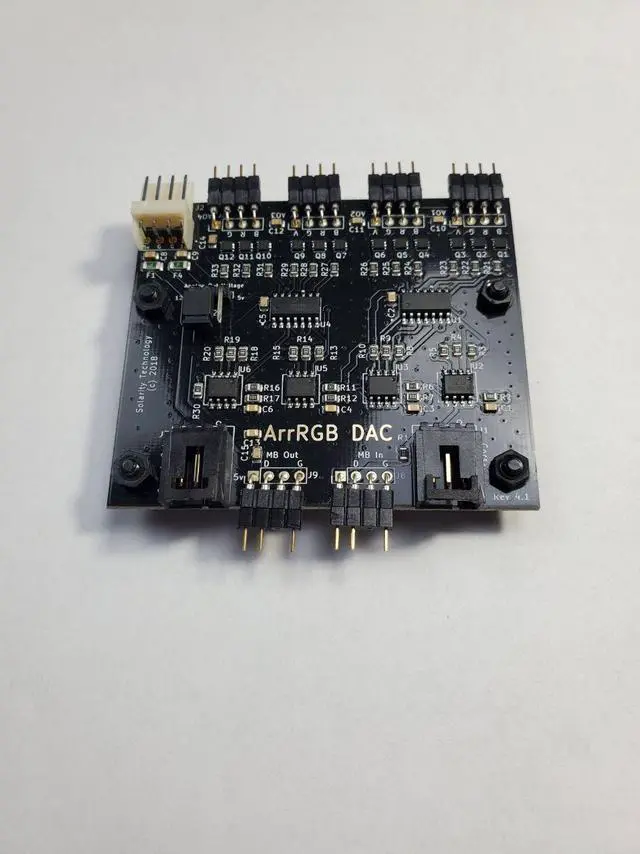

Solarity Technology presents the "ArrRGB DAC"! The ArrRGB DAC Rev. 4.1 is a 4 channel RGB device that allows you to use a 5v or 12v Digital/Addressable signal from a motherboard header or RGB controller and control Analog RGB devices on 4 different channels via the digital signal. This device requires an addressable signal to work; it will not function without a controller/MB header. You can daisy-chain additional RGB DACs or other RGB devices from the digital output. Unlike the input, both “ Corsair Out” and “ MB Out” can be used at the same time.

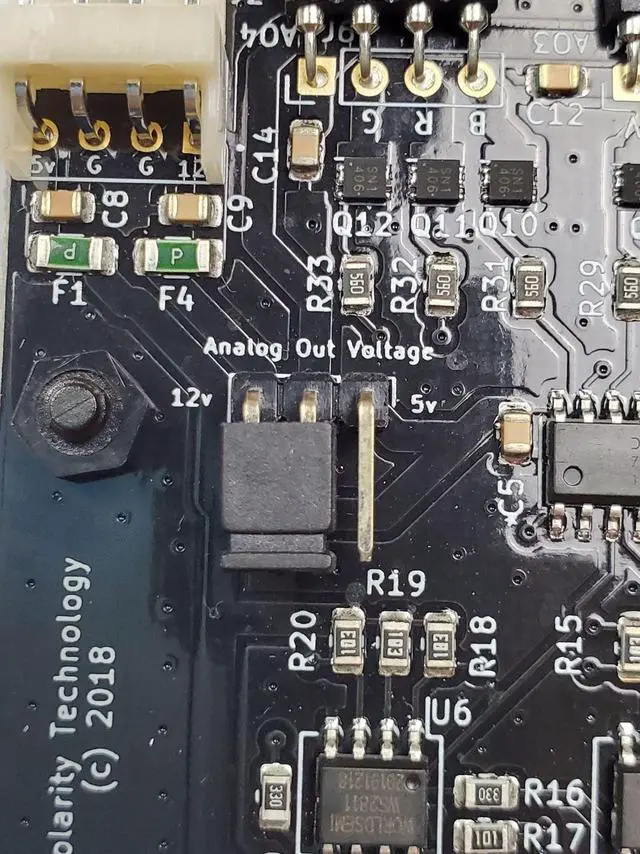

Just please keep the LED limits in mind. This new model has a 2 pin jumper to change between using 5v or 12vDigital/Addressable signals.

Instructions:

1. Power off Computer!
2. Fasten the ArrRGB DAC to a removable 2.5 ” or 3.5 ” hard drive caddy. Please use M3 screws, which is the standard screw size used to attach hard drives.
3. Connect a Corsair controller or Motherboard header to the input. The board can only take one input. These cables can come with 3rdparty devices or can be purchased separately.
4. Plug in a standard floppy drive power connector. Most PSUs come with one; Molex or SATA adapters can be purchased separately.

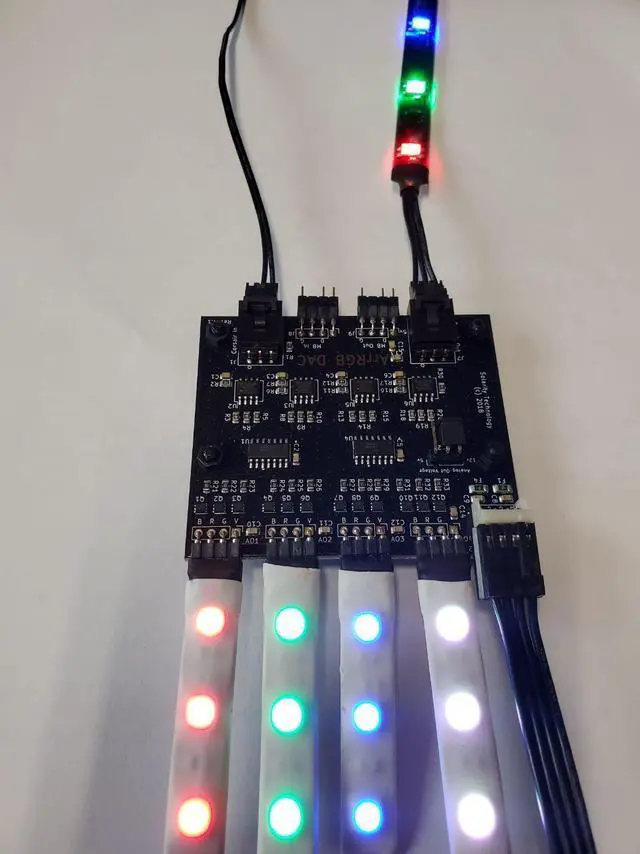

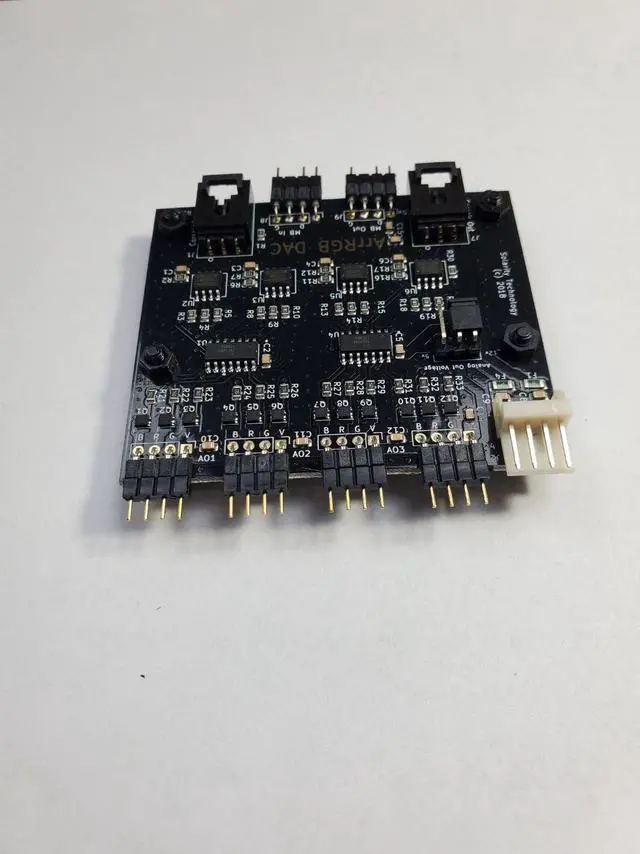

5. Connect up to four analog RGB devices to the 4 headers to allow separate control of the devices that are connected to them. Splitters may be used, though please do not exceed the amount of LEDs mentioned in the warning.
6. Configure your controller.
   Note: Each of the analog channels is addressed as a single LED.

Compatible Devices:

• Corsair Commander Pro
• Motherboard headers that have addressable RGB headers that match the header of the ArrRGB DAC

- ASUS, AS Rock, MSI, and newer Gigabyte motherboards

• Corsair Lighting Node Pro
