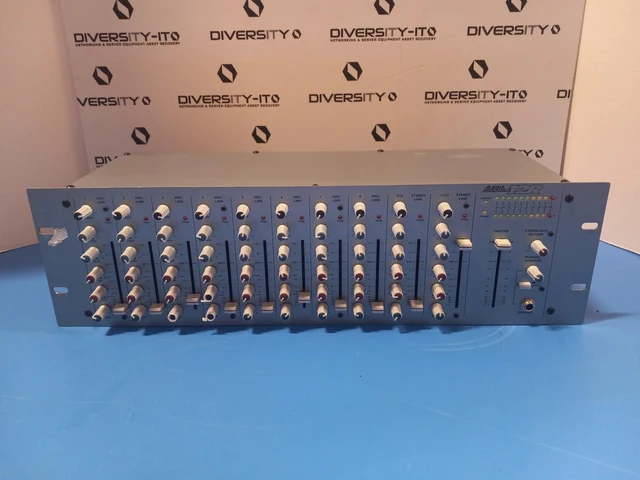

Alesis Studio 12R 12-Channel Rackmount Audio Mixer

Alesis Studio 12R 12-Channel 2U Pro Audio Rackmount Line & Mic Analog Mixer

1. 12-Channel High-Density Analog Mixing Architecture: Integrates 8 mono microphone/line channels plus 2 stereo line-level channels into a space-saving 2U rackmount chassis designed for live rigs, sub-mixing, broadcast, and rack installations.
2. 8 High-Gain Studio-Grade Mic Preamps with Phantom Power: Features 8 XLR microphone inputs with low-noise preamp circuitry, individual gain controls, peak clip LEDs, and global +48V phantom power for condenser microphones.
3. 3-Band Fixed EQ on Every Channel: Equipped with high-shelving (12 kHz), mid-peak (2.5 kHz), and low-shelving (80 Hz) controls across all channels for rapid tone shaping and frequency sculpting.
4. Dual Auxiliary Sends for Effects & Monitor Mixes: Includes Pre-fader Aux Send 1 (ideal for stage monitor/cue mixes) and Post-fader Aux Send 2 (for external outboard effects processors) with dedicated master level returns.
5. Direct Channel Inserts for External Outboard Signal Processing: Provides 1/4-inch TRS insert jacks on all 8 mono channels, enabling direct connection of inline compressors, gates, and parametric EQs per channel pipeline.

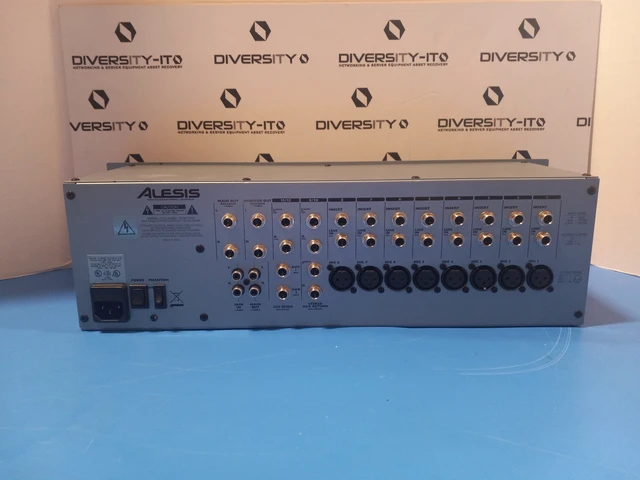

6. Flexible Monitoring & Master Routing Options: Features independent Master Stereo L/R outputs, Monitor L/R outputs, discrete Tape I/O (RCA), and a front-panel 1/4-inch stereo headphone output with dedicated master volume.

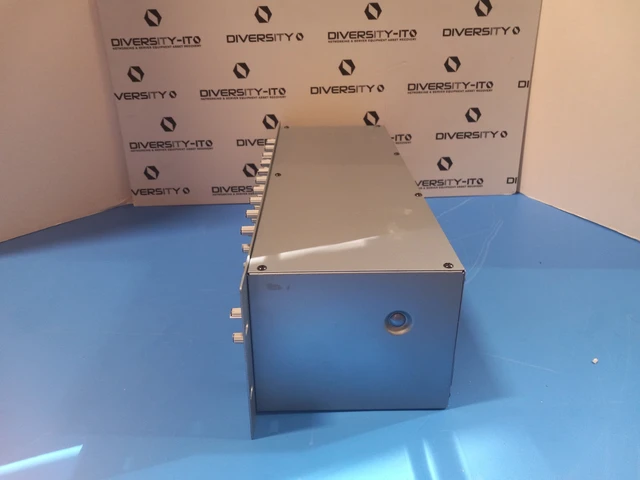

7. Rugged 2U Enterprise Rackmount Form Factor: Compact, heavy-duty steel rack enclosure engineered for durable performance in mobile rack cases, radio broadcast consoles, and permanent studio installations.

The Alesis Studio 12R is a versatile 2U rackmount 12-channel analog mixer designed for live performance rigs, home recording studios, radio broadcast installations, and keyboard/drum sub-mixing applications. Combining 8 high-gain XLR microphone preamps with two dedicated stereo line inputs, the Studio 12R delivers a clean, low-noise signal path in a compact rack-mountable form factor.

Each of the 8 mono channels features balanced 1/4-inch and XLR inputs, dedicated channel insert points, input trim controls, peak level LEDs, and 2-band EQ controls. Dual auxiliary sends allow flexible signal routing to external effect processors and stage monitors, while global +48V phantom power supports studio condenser microphones. Equipped with an internal power supply, master fader control, and high-visibility 10-segment LED meters, the Alesis Studio 12R offers reliable pro-audio mixing capability in any rack setup.
