Fluke Networks Industrial Ethernet Tester

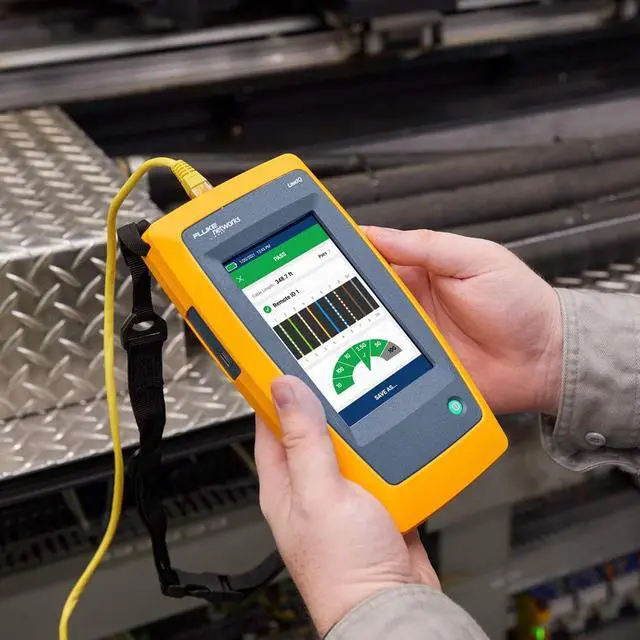

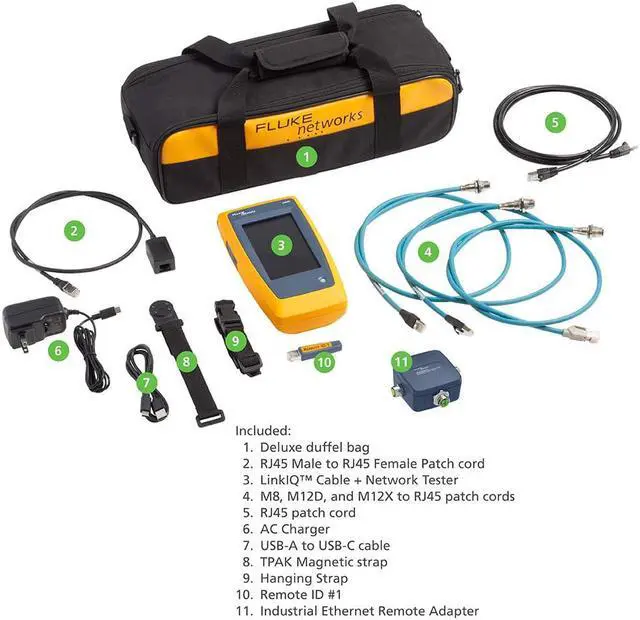

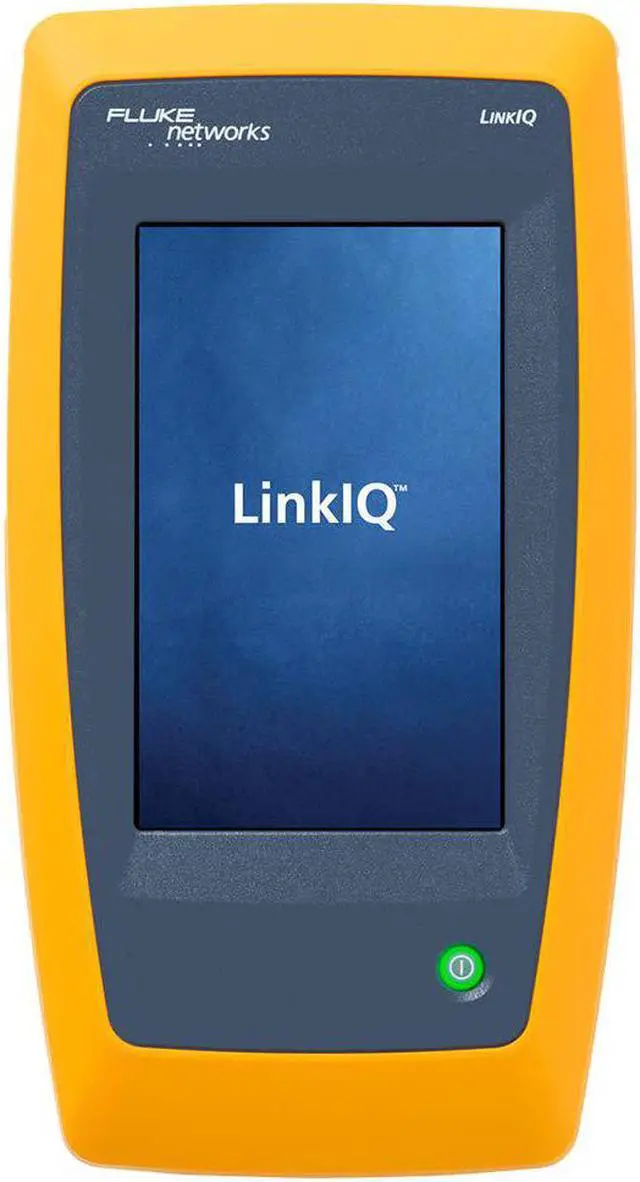

LinkIQ Cable + Network Tester Pinpoints the #1 cause of Industrial Ethernet failures The LinkIQ supports EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols and qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10 Mb/s up to 10 Gb/s) and also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE and load testing up to Class 8 (90W). The included MS-IE Remote Adapter allows for the identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables. Cable Performance testing up to 10GBASE-T via frequency-based measurements and support of EtherNet/IP, PROFINET, EtherCAT

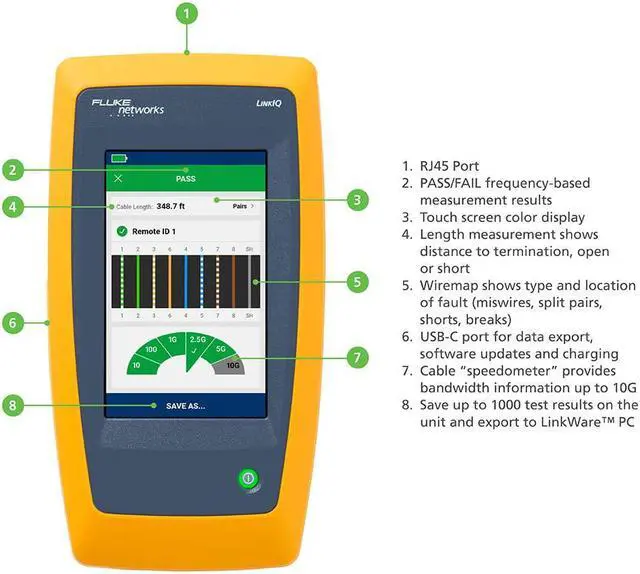

Network features including: Nearest Switch Diagnostics including advertised data rate, switch name and port number, and VLAN PoE Verification Detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch Displays cable length, wire map, and distance to open or short Manage results and print reports from LinkWare PC Using the MS-IE Remote Adapter allows for identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables.
