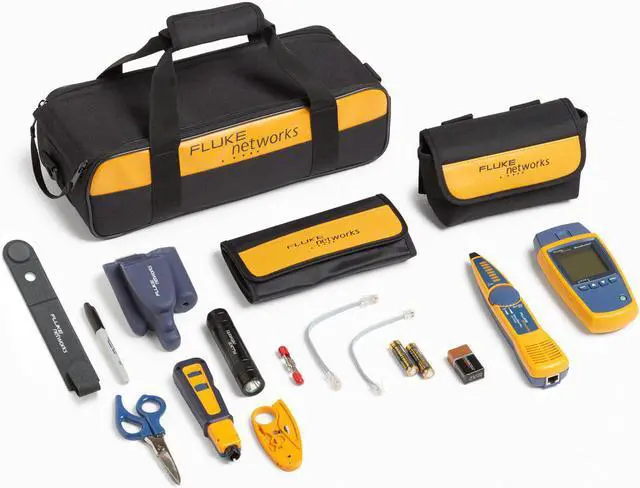

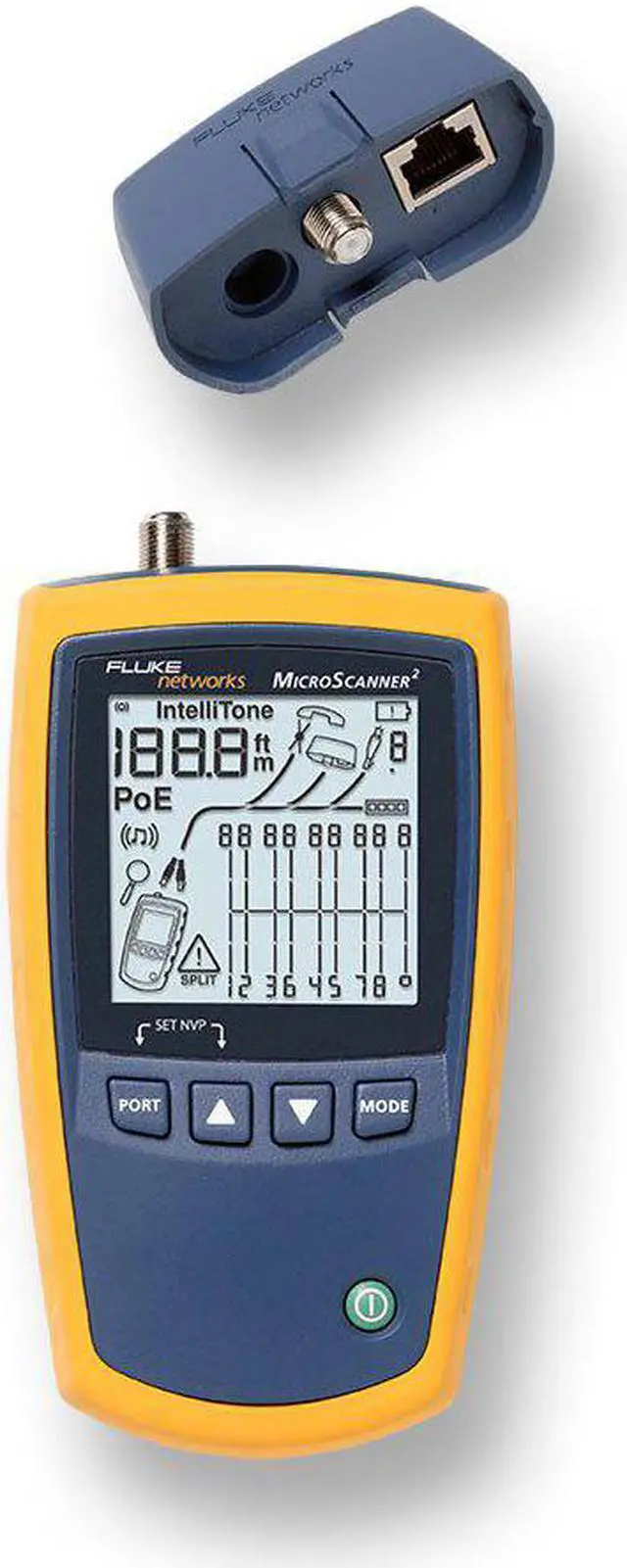

The MicroScanner2 Termination Test Kit includes a MicroScanner2 cable verifier and an IntelliTone Pro 200 probe to verify cable functioning of new and existing copper and fiber network installations. Additionally, the kit contains the IS60 Pro-Tool Kit for efficient cable installation. The meter displays a graphical wiremap, cable length, cable ID, and distance-to-fault. A tone generator produces digital and analog signals to locate cable or wire pairs. Digital mode locates high-grade cabling, including Category 5e, Category 6, and Category 6a in bundles or at switches, patch panels, and wall outlets.
Analog mode verifies Category 3 and below voice-grade cabling, coax, security, alarm, and speaker wiring. VDV service detection verifies media services, including powered 10/100/1000 Ethernet switches, plain old telephone services (POTS) voltage and polarity, and Power-over-Ethernet (PoE) voltage and pairs. A backlit LCD is oversized for clear viewing in a variety of lighting levels, and a rubber holster protects the meter in rugged environments. Copper and fiber testers are used by network technicians to troubleshoot, maintain, and optimize performance of copper and fiber optic cabling, hardware connections, and network settings in enterprise networks.
- The IntelliTone Pro 200 probe detects IntelliTone digital signals, rejecting noise and false signals, to locate and trace data cabling on active networks. It detects 500 to 1, 200 Hz analog signals to isolate individual wire pairs and trace voice, audio, and video cabling on non-active networks. The probe detects signals at cable racks, in patch panels, and even behind walls, and identifies detected signals audibly and with eight LEDs that light successively as the signal strength increases for prompt isolation of a single cable within a bundle.

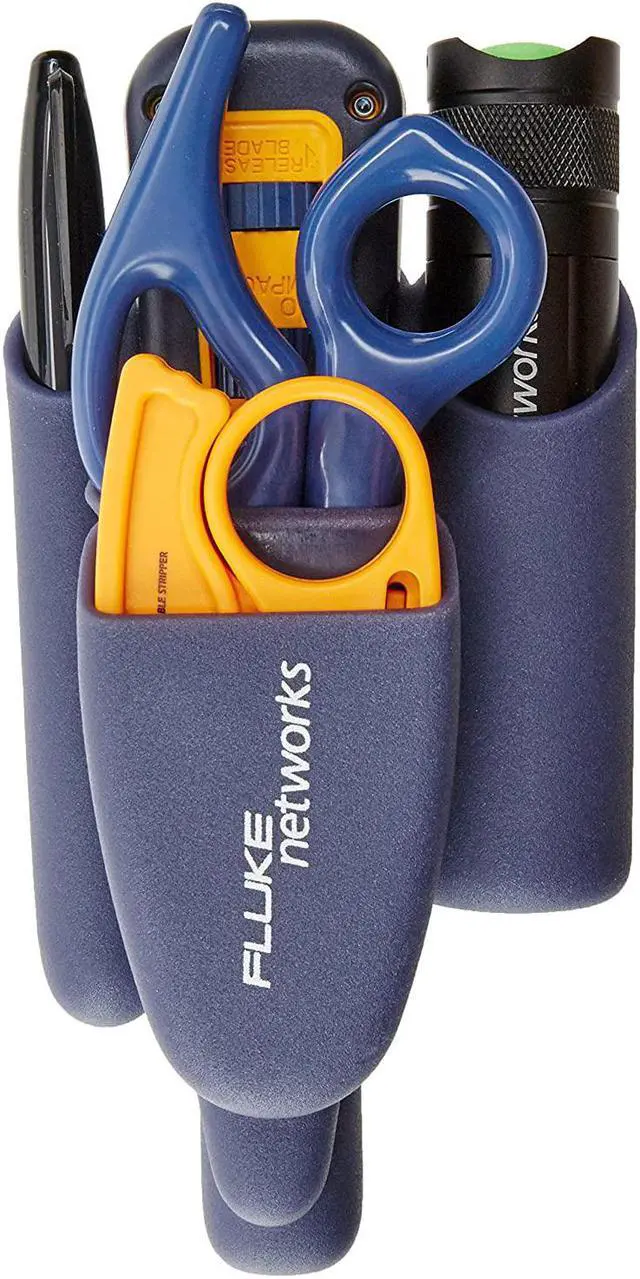

A sync LED shows battery strength at power-up and confirms reception of IntelliTone signals, and the cable map function allows the probe to validate the cable map on RJ11 and RJ45 connectors, testing continuity and finding shorts, opens, and crossed-pair wiring faults on all four pairs of UTP and STP twisted pair cabling. RJ11 and RJ45 jacks plug into a port on the bottom of the probe. The probe turns off automatically after one hour of inactivity. - The IS60 Pro-Tool Kit has all the professional tools for electrical and telecom technicians to cut, strip, clean and connect wire and cable all in a durable compact DuraGrip PVC pouch holds your tools securely inside, even upside down.
This six piece set includes the following: D914S Impact tool for solid terminations, electricians D-Snips, a cable stripper to quickly ring and slit many types of cable, a Mini Maglite, and an EverSharp 66/110 cut blade, all conveniently held in a PVC Dur-a-Grip pouch.
