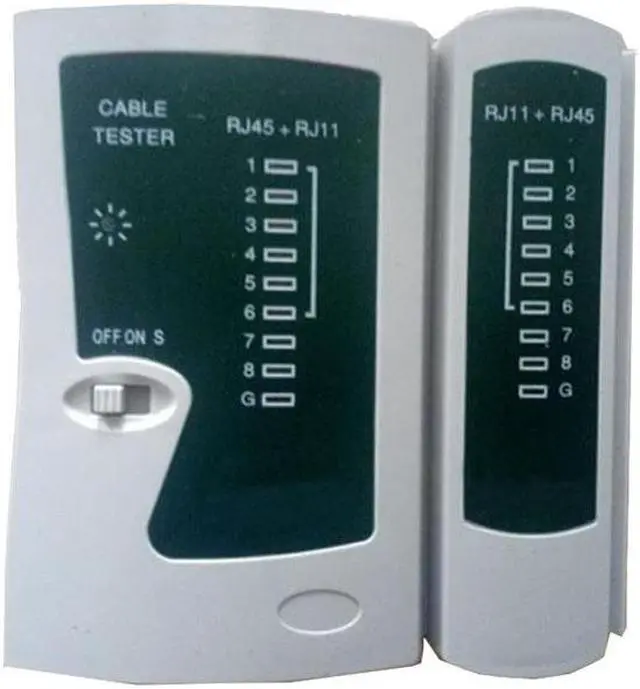

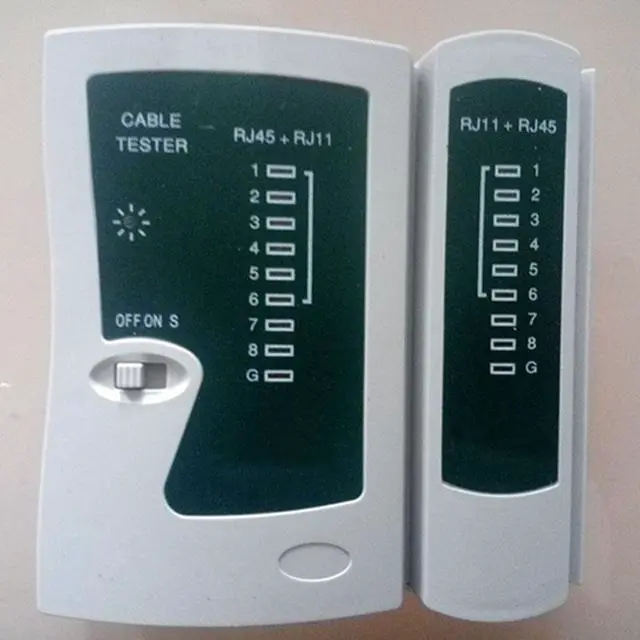

RJ11 RJ45 Network Cable Tester Handheld LAN Cable Tester Wire Telephone Line Detector Tracker Networking Tool

Features: Brand New, High Quality. Network Cable Tester Support network RJ-45 cable Continuity Tester. Test of double-twisted cables, switch on the power.
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G (RJ45) 1-2-3-4 (RJ11) If the wiring is not normal, according
to the following conditions:
1. When there is a network cable, such as line 3, then the main test instrument and remote test-side 3 lights are not bright.
2. When there are several lines, several lines are not bright, when the line is less than two lines connected, the lights are not bright.
3. When the two network cable out of order, for example, 2, 4-line out of order, the
show is as follows: Main
tester unchanged: 1-2-3-4-5-6-7-8-G Remote
test side is: 1-4-3-2-5-6-7-8-G
4. When the cable has two short circuits, the main tester display does not shine, and the remote test side shows short-circuit two line lights are light, if more than 3 Short-circuit (including 3), then all the short-circuit of several line number of lights are not bright
Specifications:
Item: Network cable tester
Test cables: RJ11,
RJ45 Power supply: DC9V battery (Not include the battery)
Power consumption: 25MA
Package Include: 1*Network cable tester
